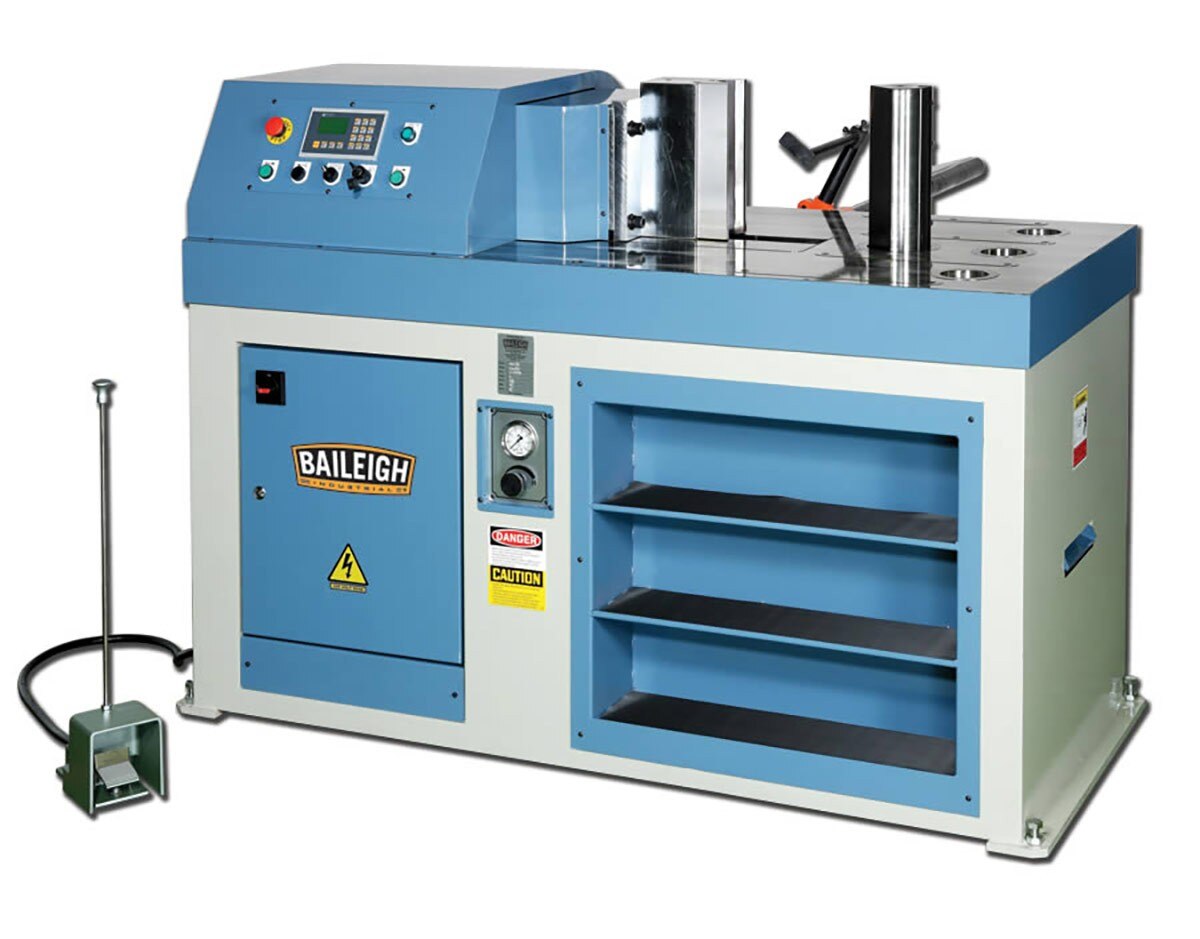

Baileigh Industrial 1004720 Features

• 7.5 hp motor produces up to 78 tons of pressure.
• 13.78” stroke length.
• Runs on 220-volt 3-phase power.
• Industrial-grade hydraulic system is located on top of the machine to reduce flex.
• You can adjust the pressure of the the hydraulics for your material.
• Designed for simple operation. In 15 minutes, anyone could learn to run it.
• Numerical control (NC) programmer can store up to 50 programs with 10 bends per program.
• Electronic encoders make this hydraulic press brake accurate to +/- .002”.
• Product counter makes production runs more efficient.
• Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
• You can also run the machine in a manual mode for one-off projects as well as set-up.
• Robust manual back gauge bolts to the machine and helps with repeatability.
• Machined table, 37.4” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
• Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.

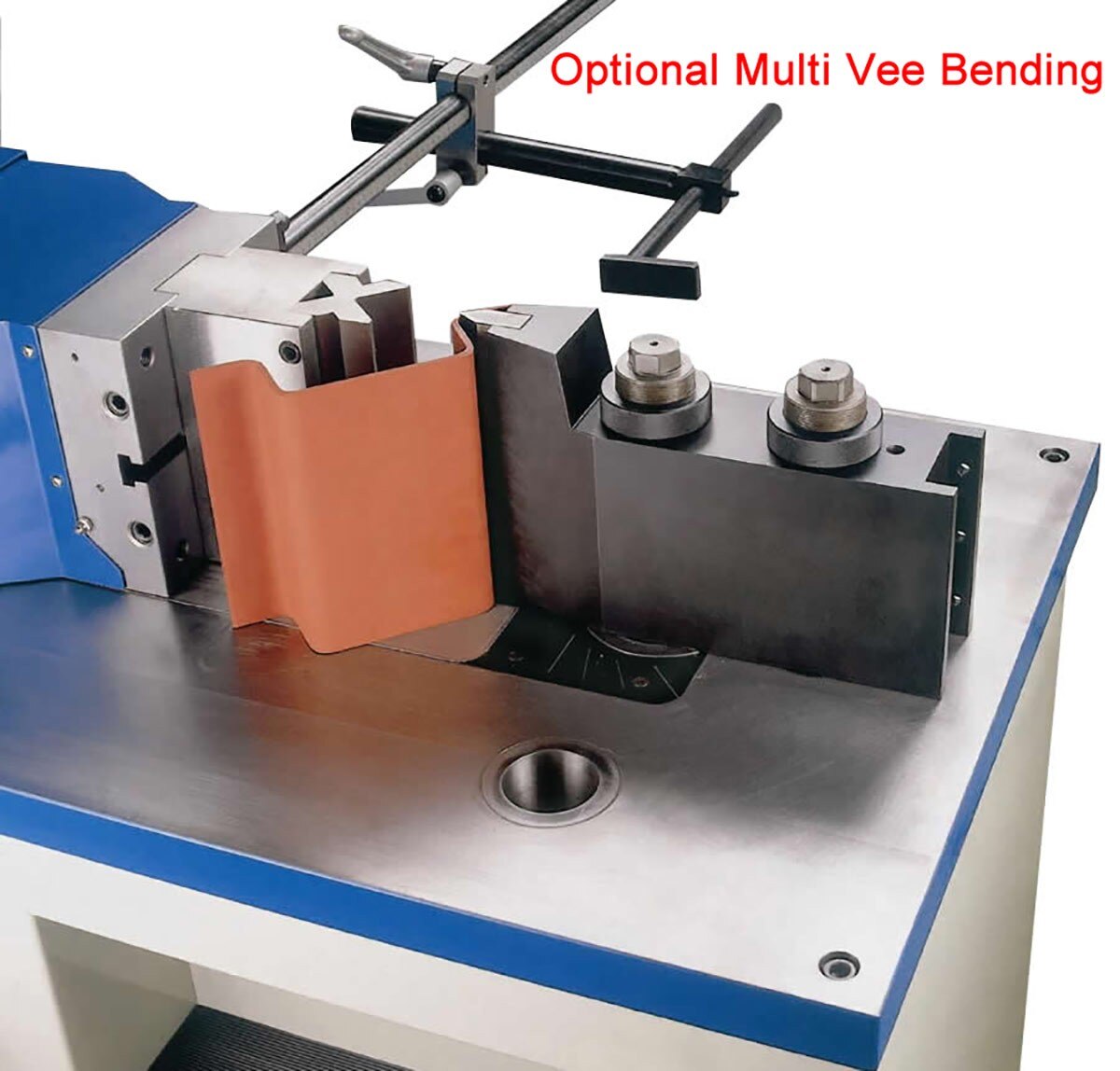

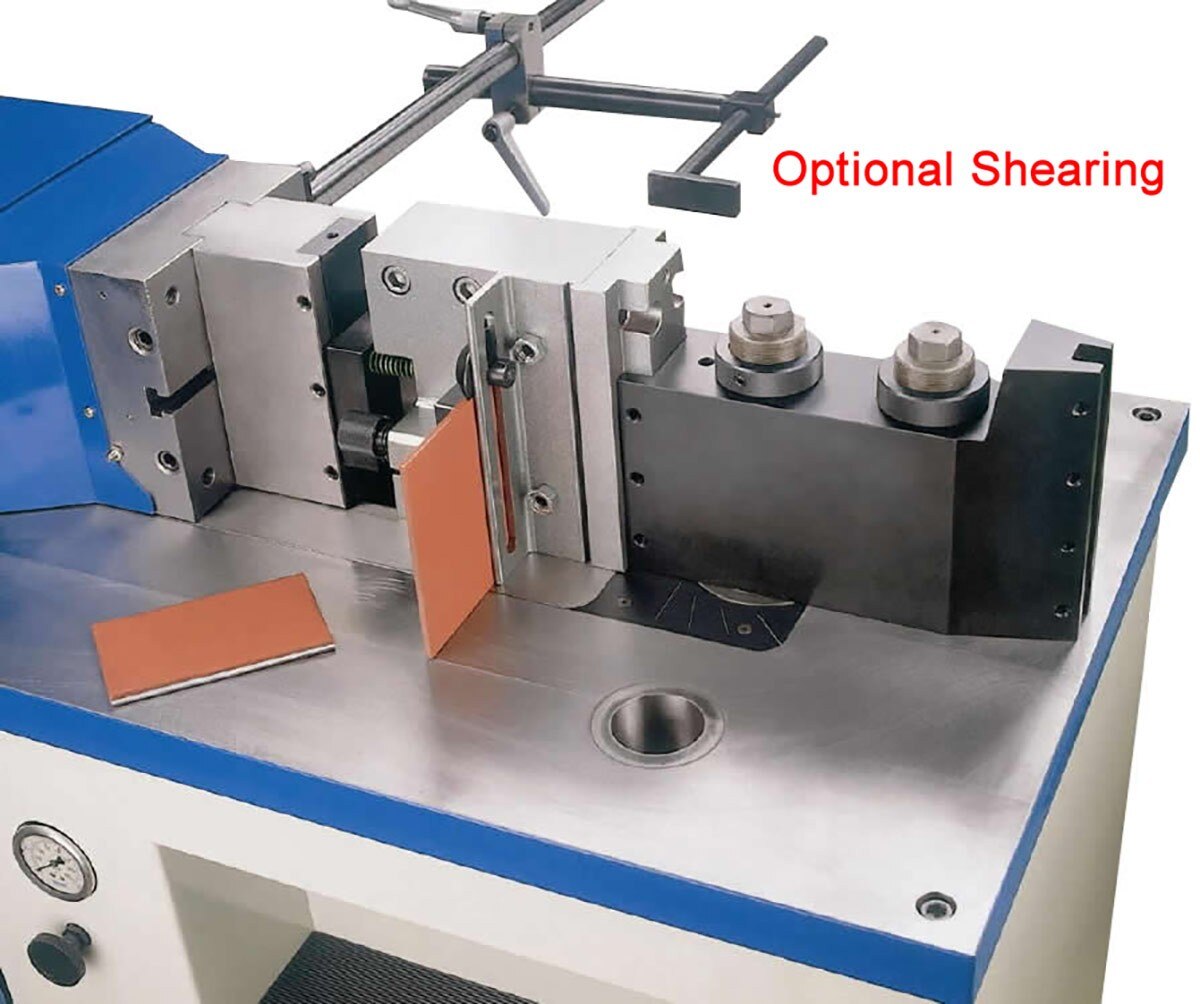

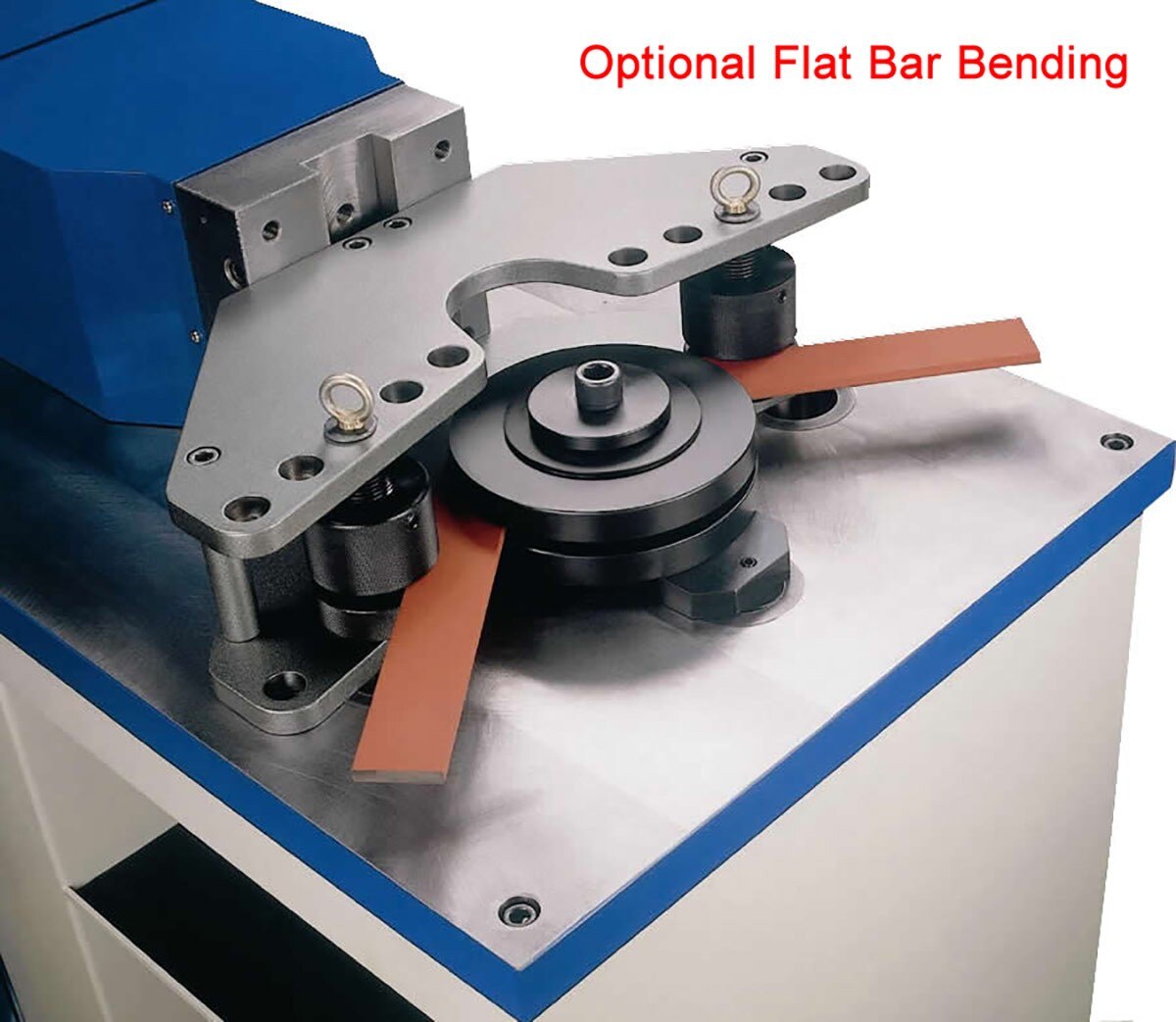

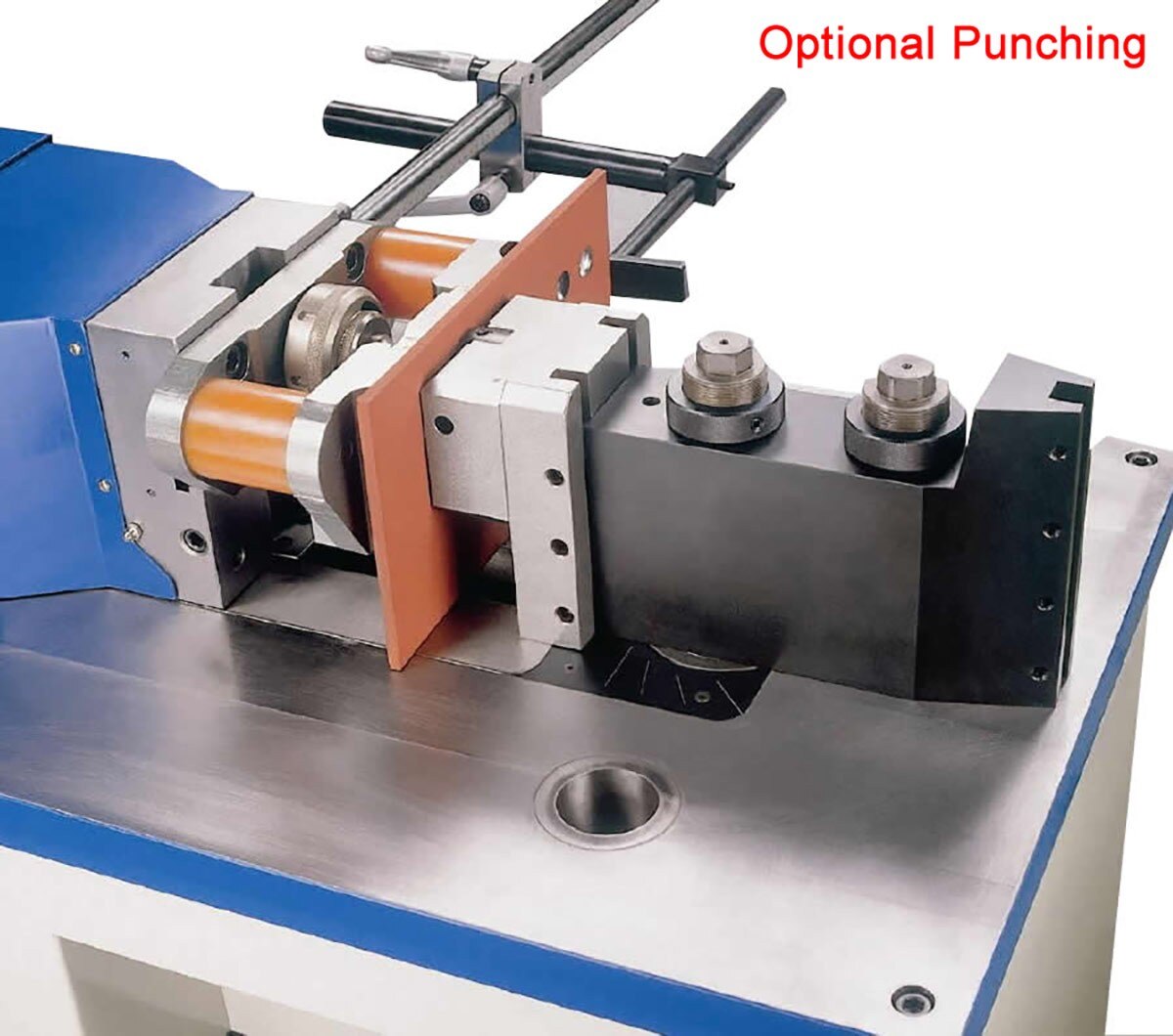

• Accepts attachments for punching, straightening, shearing, and even pipe bending.

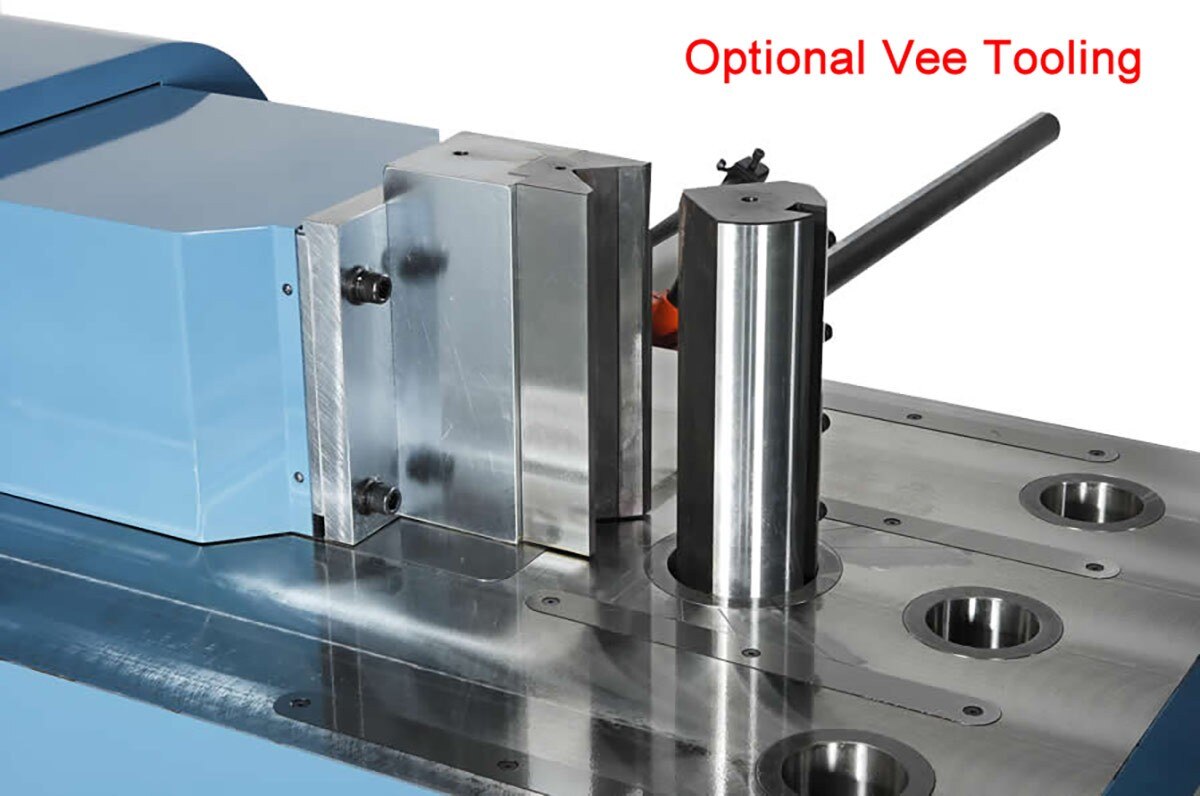

• Includes a set of single-V tooling (V-opening die and V post).

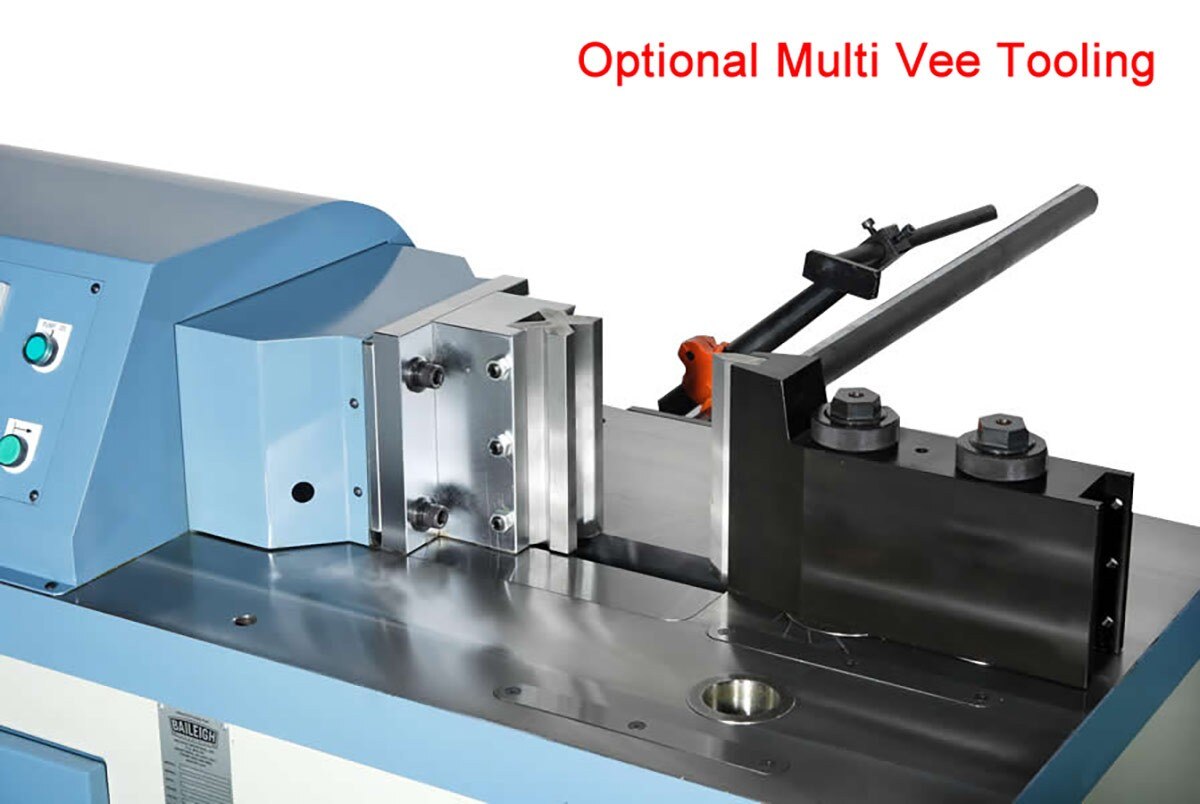

• Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
• 4,580-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
