Baileigh Industrial 1001396 Description
Does your mitering band saw cut a variety of materials and profiles? This single-miter horizontal band saw is a great investment. With a welded steel framework, the metal mitering band saw offers decades of precision. The BS-250M horizontal band saw from Baileigh Industrial is a great saw for any fabrication shop that cuts a variety of materials and profiles. Another nice feature of the BS-250M is dual operating modes. Use the pull down arm and trigger switch to activate the blade and coolant, or if you’re in a production run, you can switch the machine to cut using the hydraulic descent cylinder. Using the descent cylinder to cut through the material, you can dial in the ideal descent rate, increasing blade life and cut quality. Also, the blade will automatically stop when finished with the cut.
Baileigh Industrial 1001396 Includes
- (1) Band Saw
Baileigh Industrial 1001396 Features
- Runs on 110-volt single-phase power, so you can use it practically anywhere.
- Cuts up to 8.93” round metal stock at 90°.

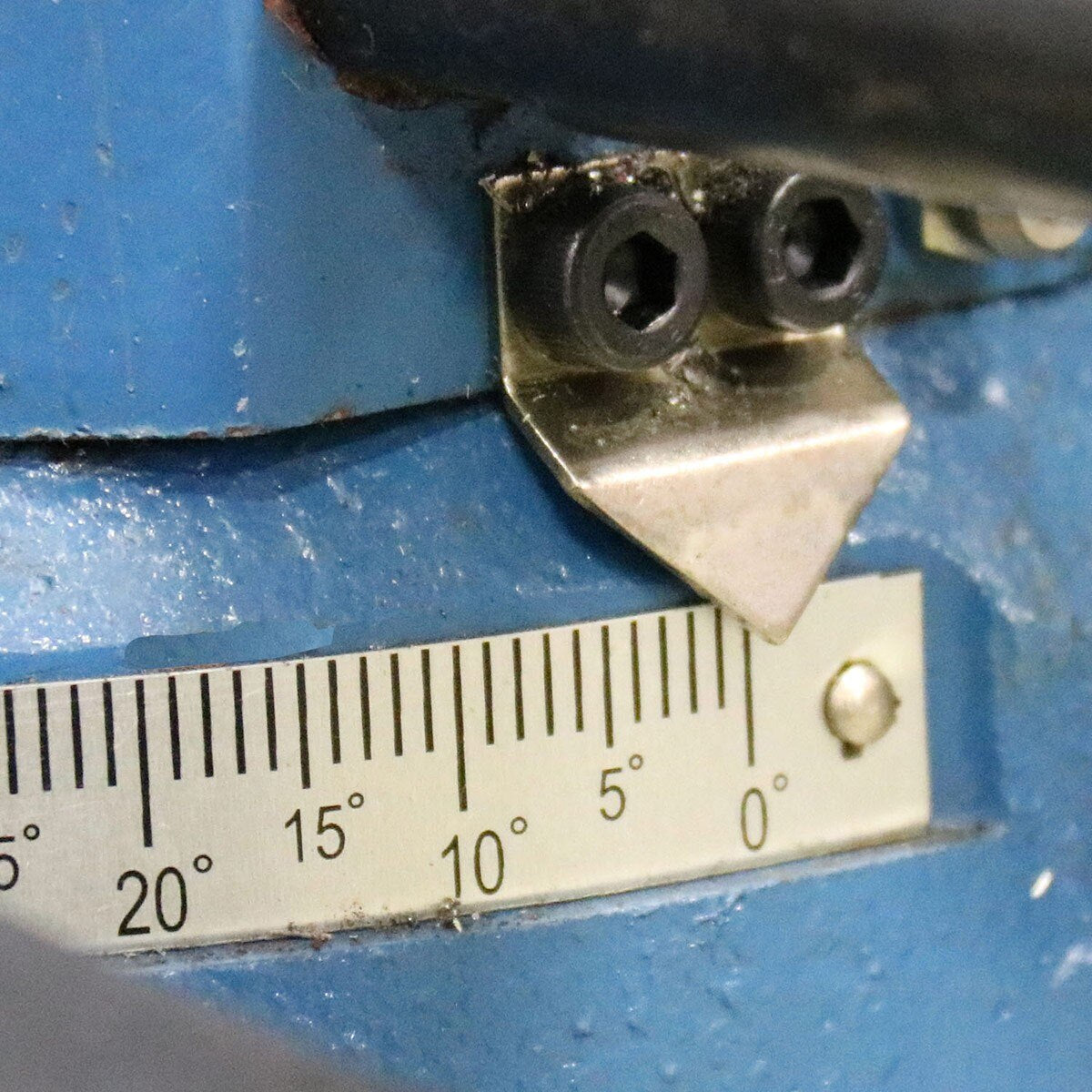

- Swivel head miters up to 60°.

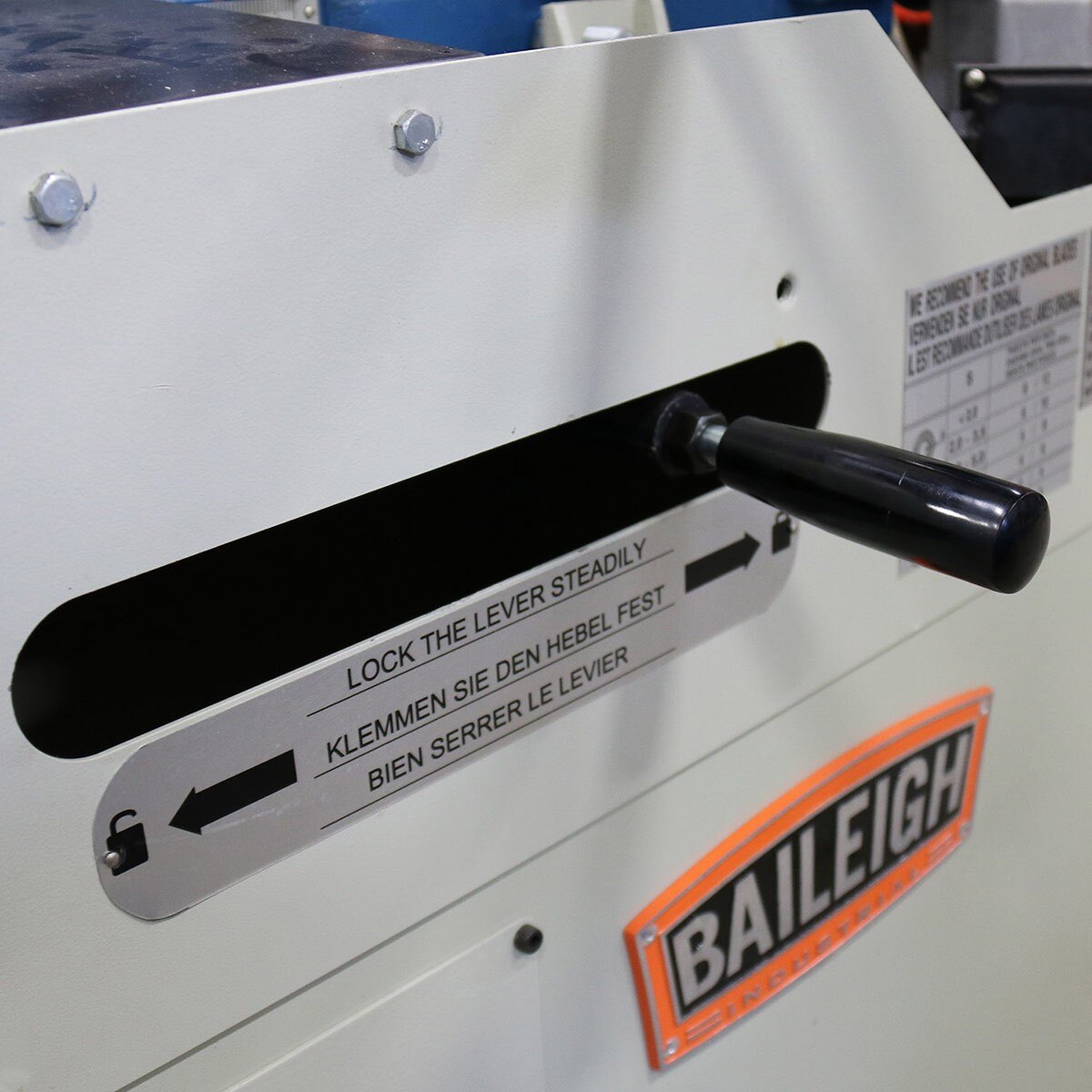

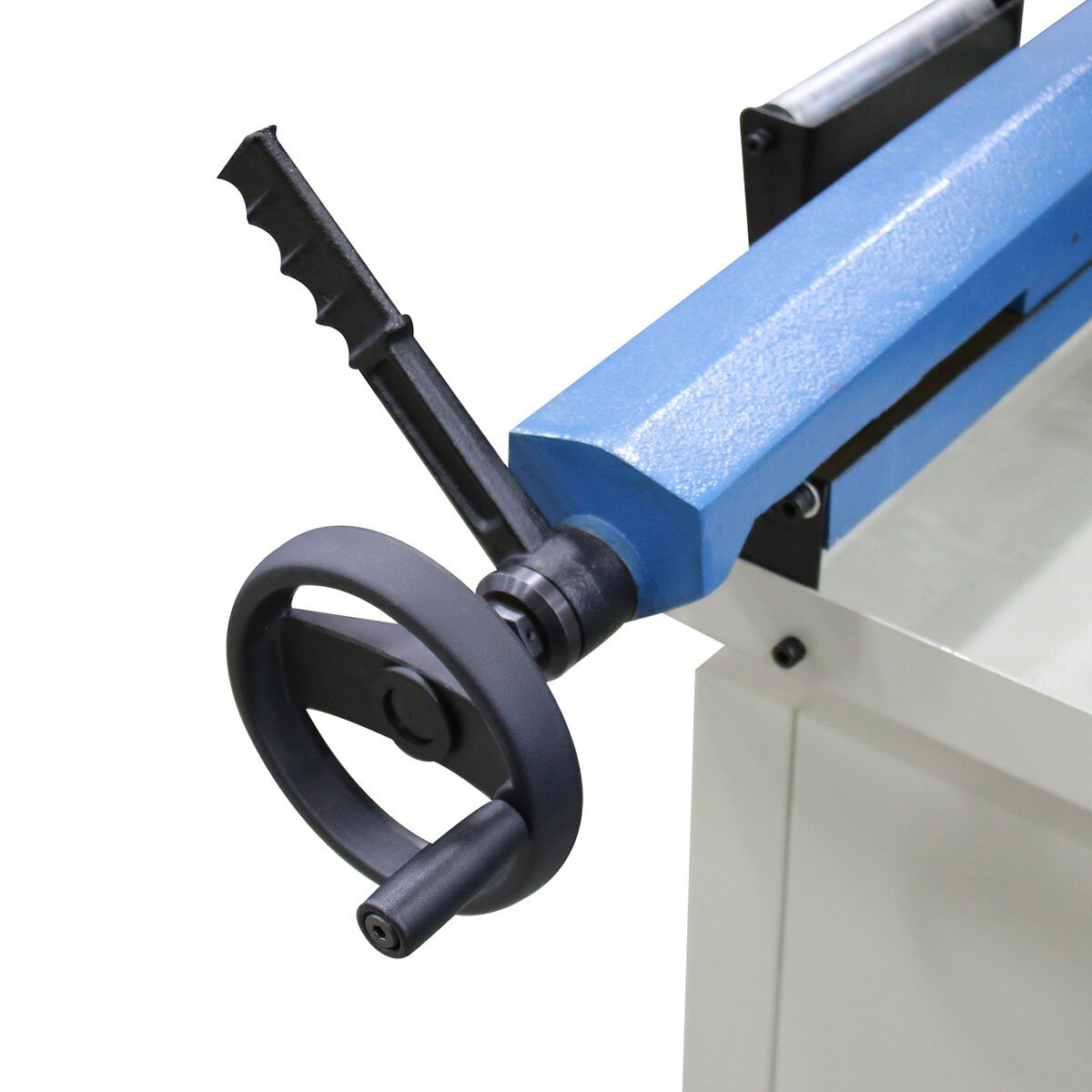

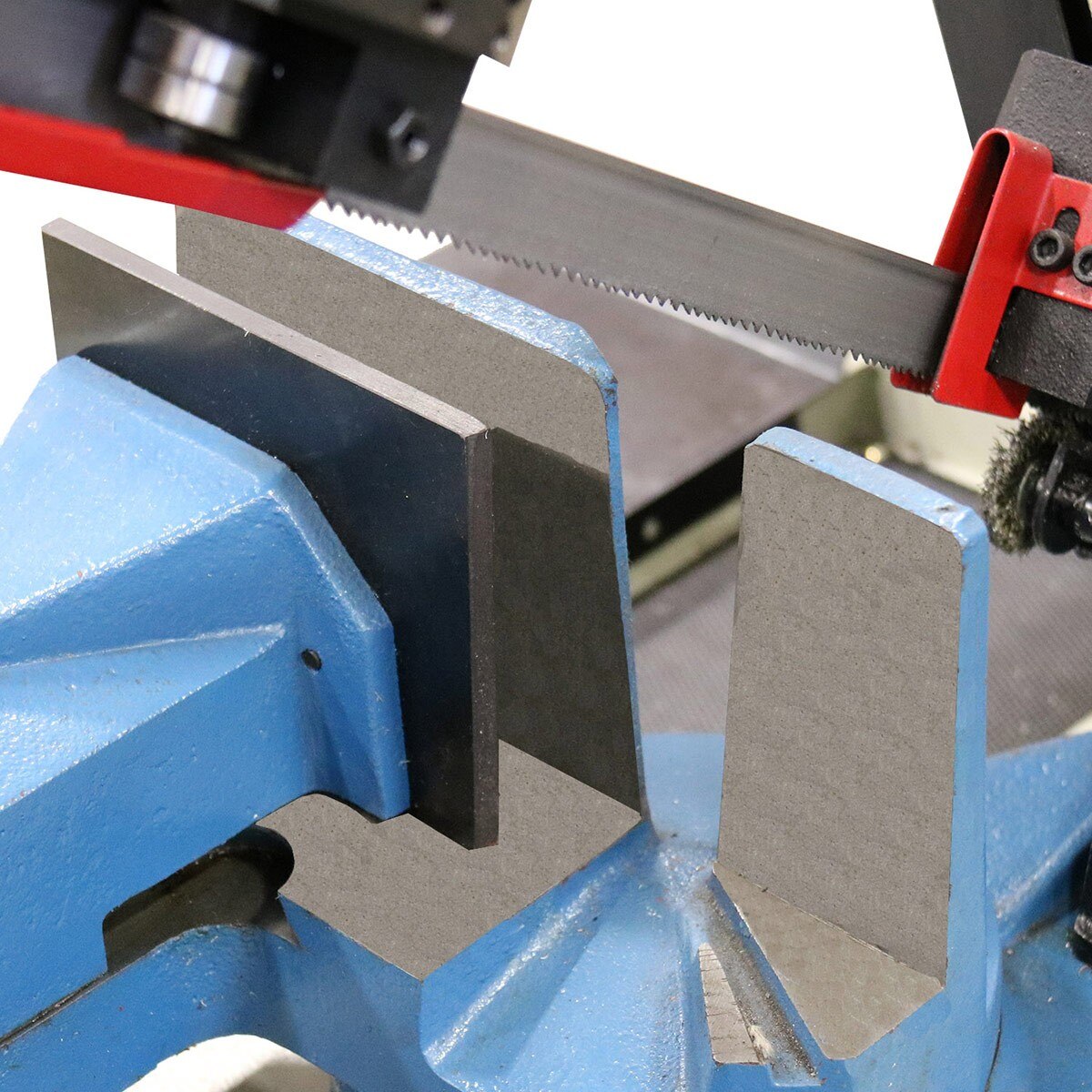

- Angle changes takes seconds—and the vise stays in place.
- Cast iron saw head and bow reduce vibrations and keep the saw accurate.
- Accepts a standard 1” blade.
- Adjustable speed from 66 to 280 fpm for the blade and the material, increasing the blade life and decreasing costs.
- Patented blade tension device (a liquid-filled gauge) makes it easy to check the tension and correct it.

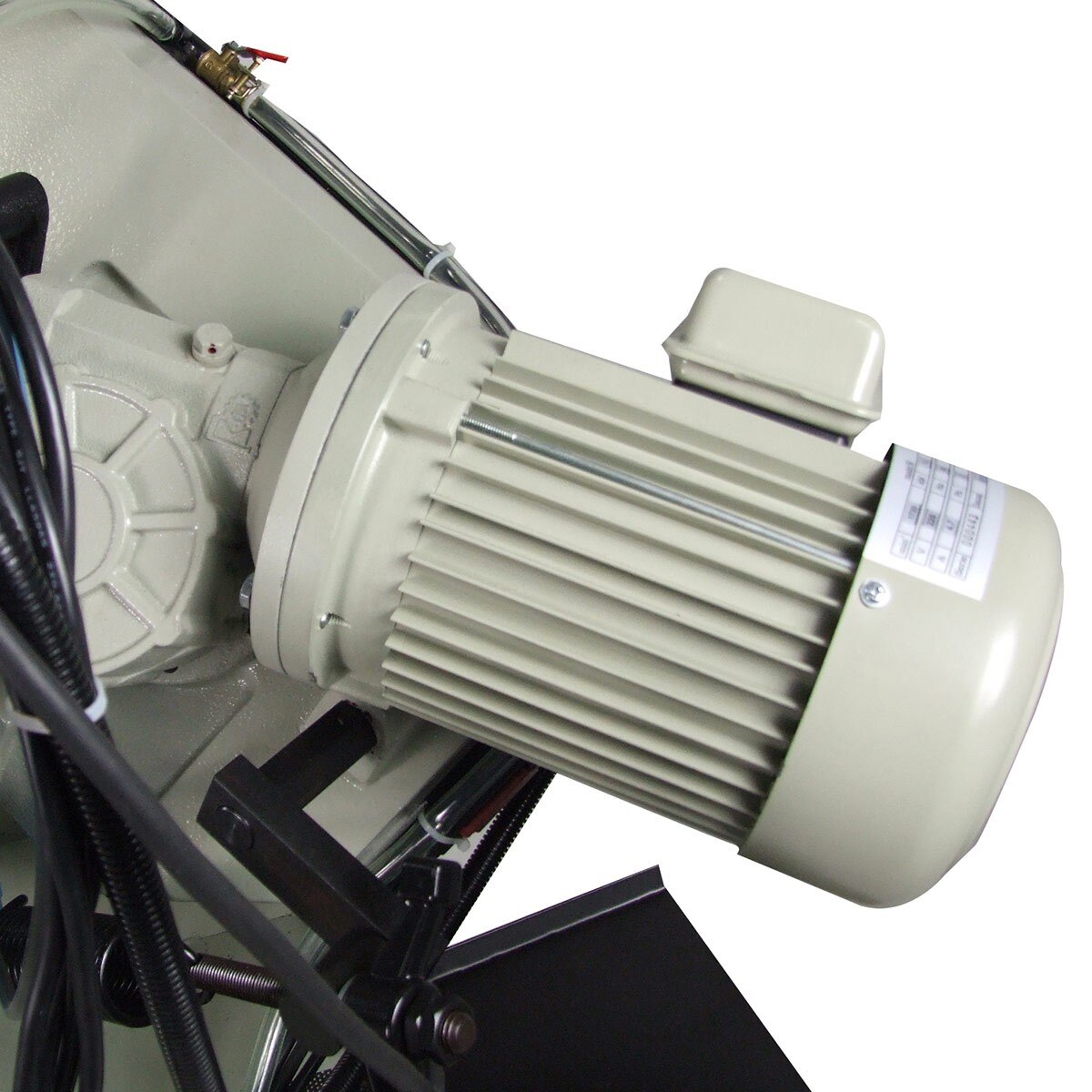

- An inverter drives the 2 hp motor through a gearbox, so there are no pulleys to adjust or belts to break!

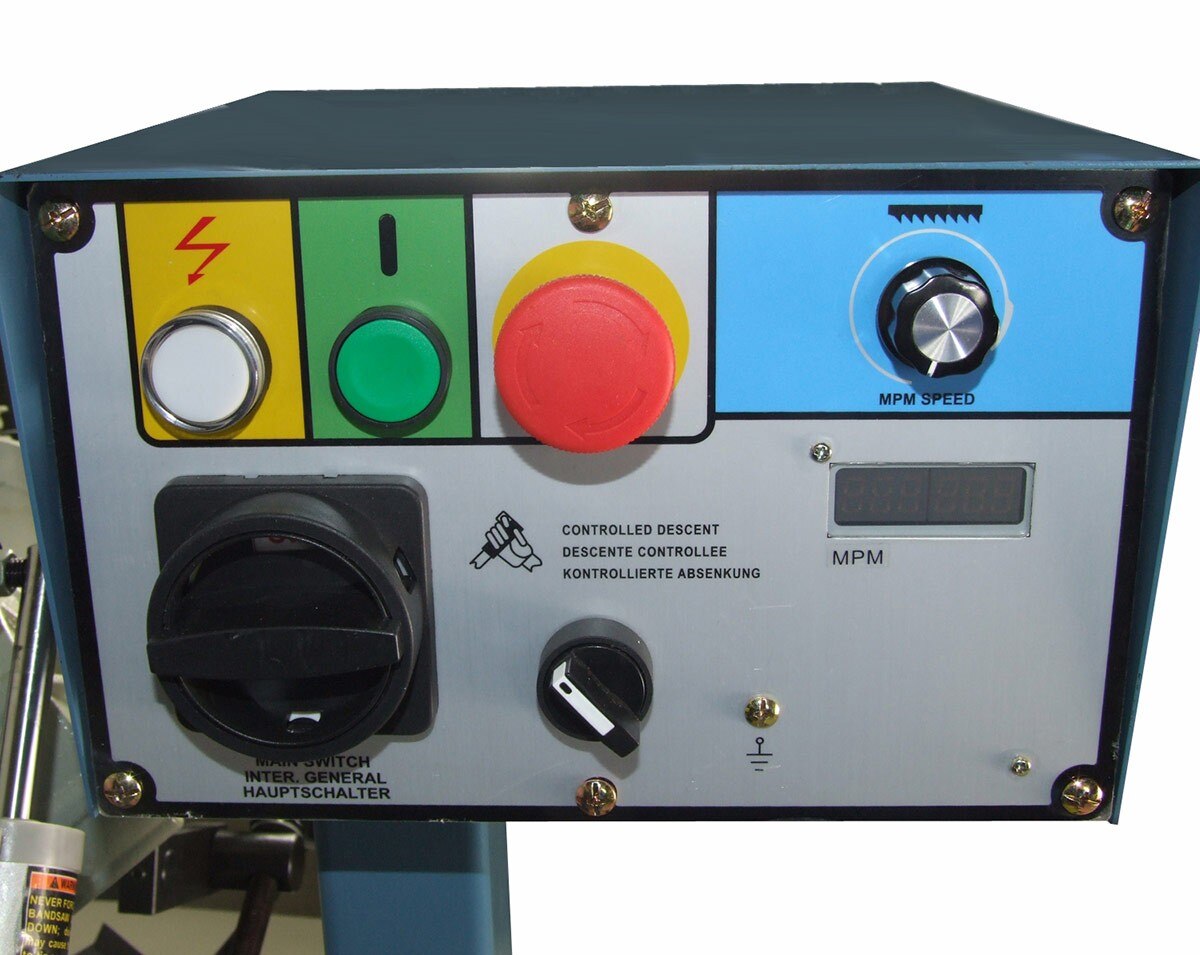

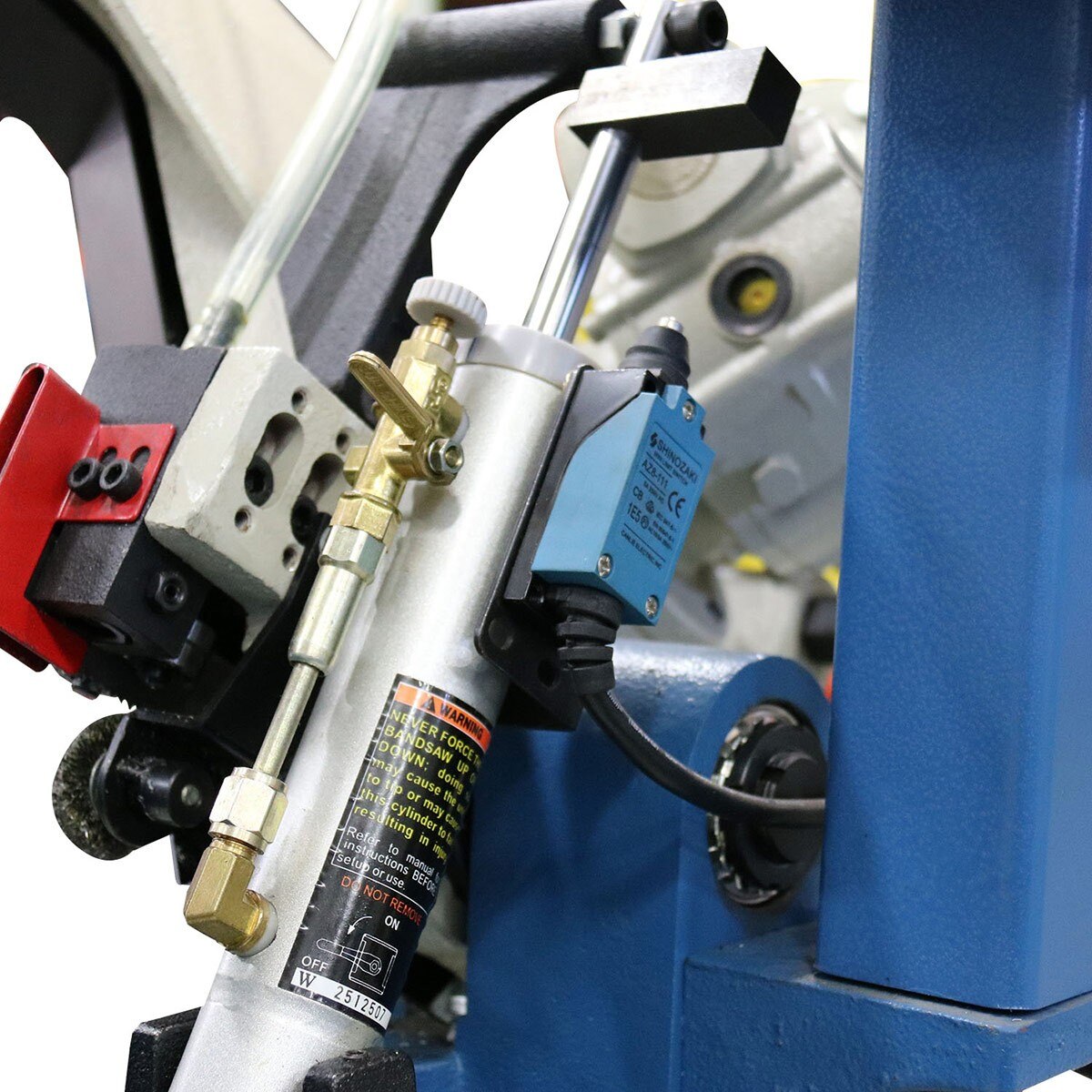

- 2 ways to operate this metal band saw: Manual descent: Using the pull-down arm and trigger switch to activate the blade and coolant, Hydraulic descent: For production runs, you can switch the machine over to cut using the pressure you input. It will automatically shut down the blade and coolant system when the cut is completed.

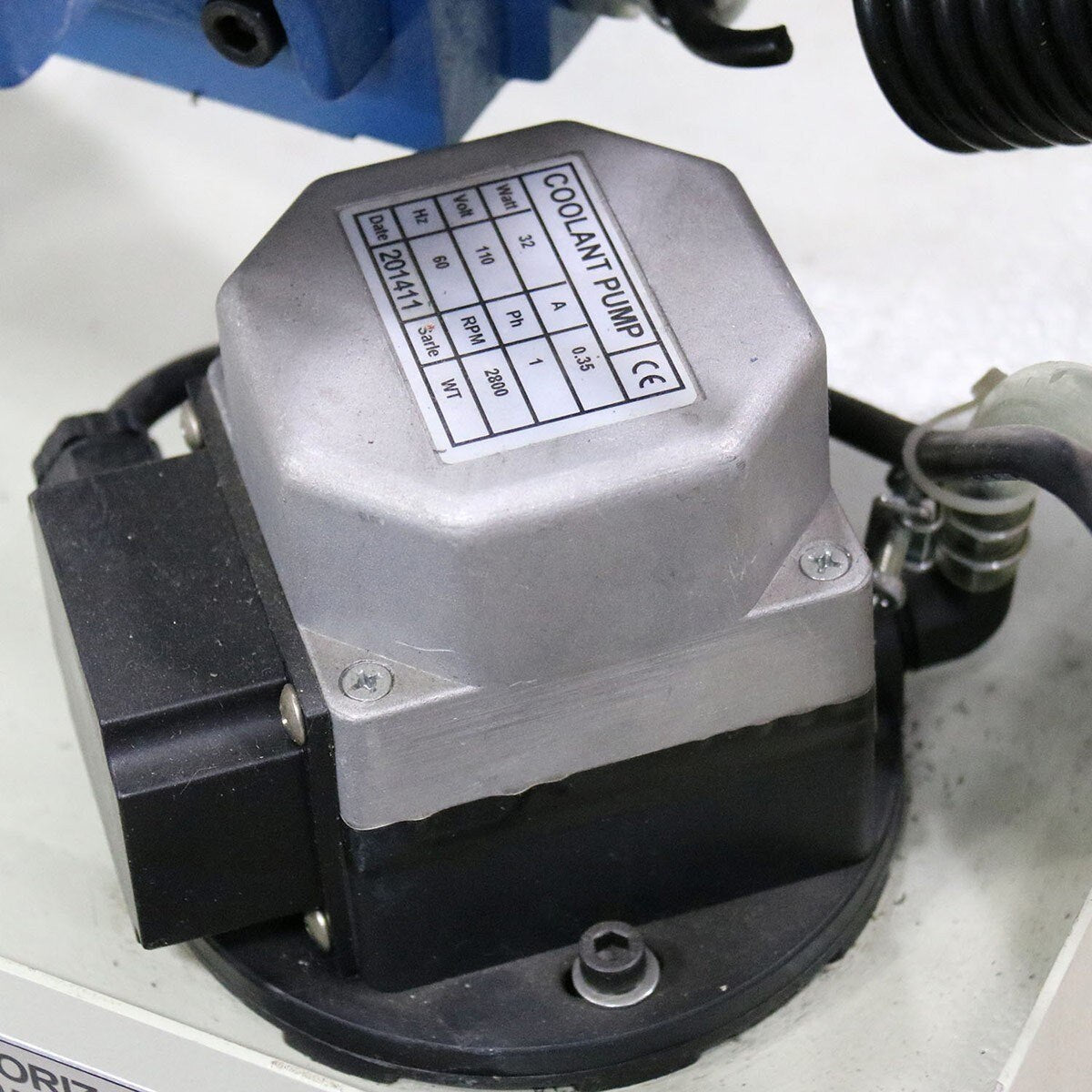

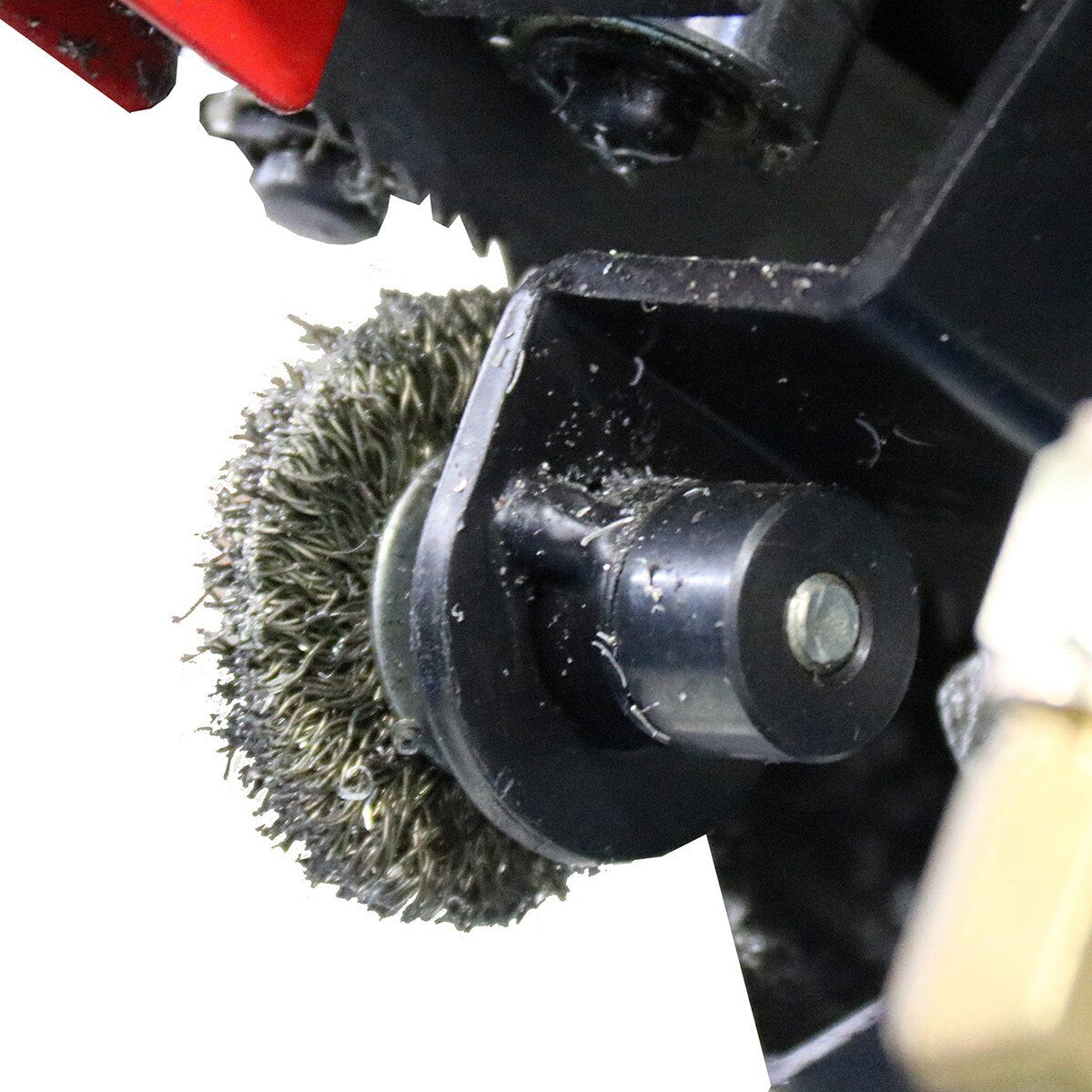

- Includes a powerful coolant pump that washes away metal chips, cools the blade teeth, and lubricates the blade, helping it last longer.
- Baileigh covers this horizontal mitering band saw with a 1-year parts warranty.
Baileigh Industrial 1001396 Specifications
| Dimensions | 69" x 44" x 42" |
| Horsepower | 2 HP |
| Return | Manual |
| Miter Adjustment | Swivel Head |
| Miter Angle | 0 – 60° |
| Motor | High Torque 1.1Kw (AC) |
| Capacity Rectangular 90° x 45° | 10.23" x 4.33" |
| Capacity Round 90°/ 45° / 60° | 8.66" / 6" / 3.5" |
| Capacity Square 90°/ 45° / 60° | 8.46” / 5.875" / 3.375" |
| Table Height | 33.07" |
