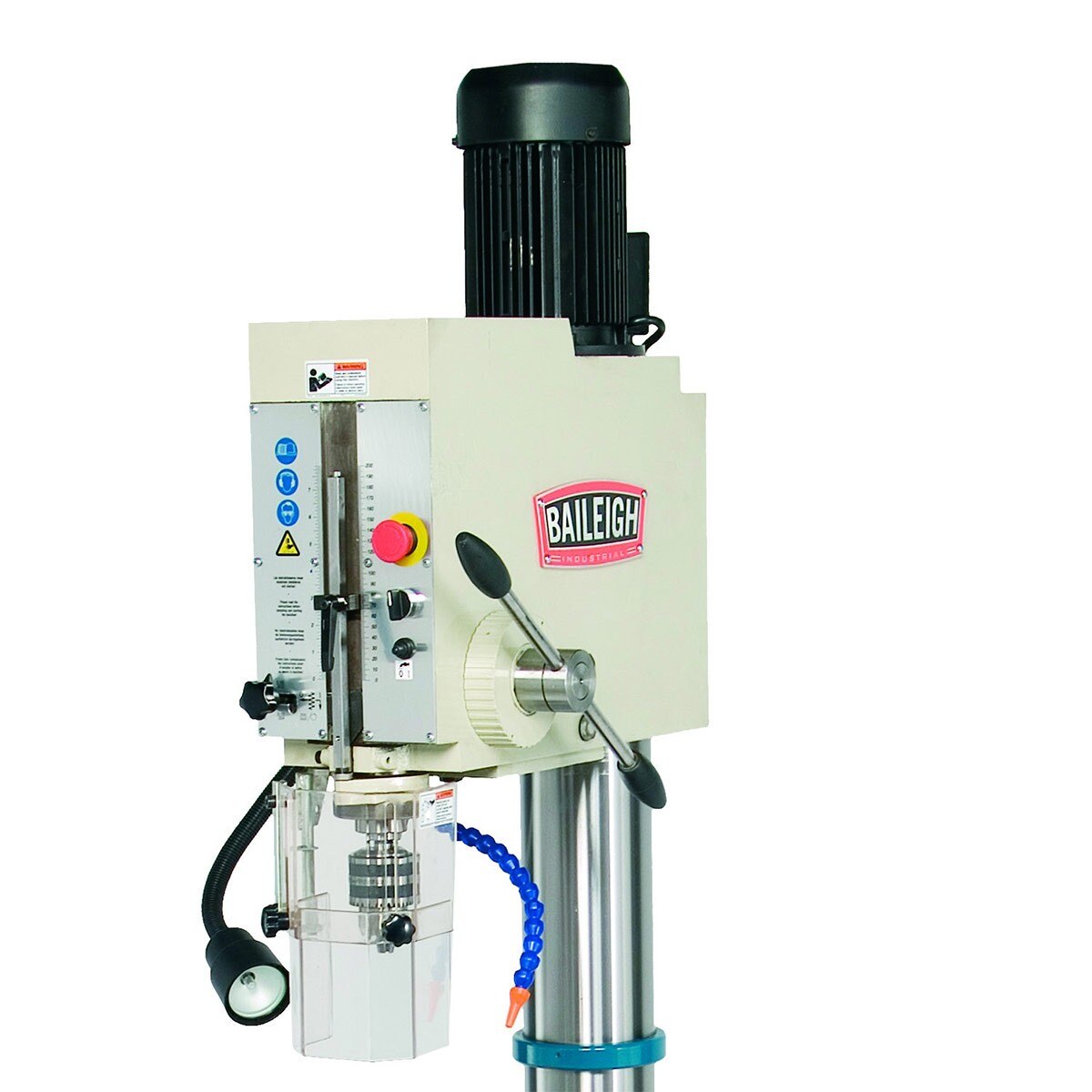

Baileigh Industrial 1002872 Description
With a cast iron base and a sturdy steel column, this 20” DP-1500G gear-driven drill press offers the rigid strength you need for heavy drilling jobs. a massive 5-1/2" diameter to help reduce possible flexing during heavy feeds at maximum capacity, which is 1-1/2" through mild steel. The base and table are made from a heavy casting and both have large T-slots to ensure a proper hold of the material being drilled. This Baileigh Industrial drill press offers a lot of power at a very economical value to the machine shop or fabrication shop owner.
Baileigh Industrial 1002872 Includes
- (1) Drill Press
Baileigh Industrial 1002872 Features
- 3.5 hp motor runs on 220 volt 3-phase power.
- Drills a maximum capacity of 1.5" mild steel.

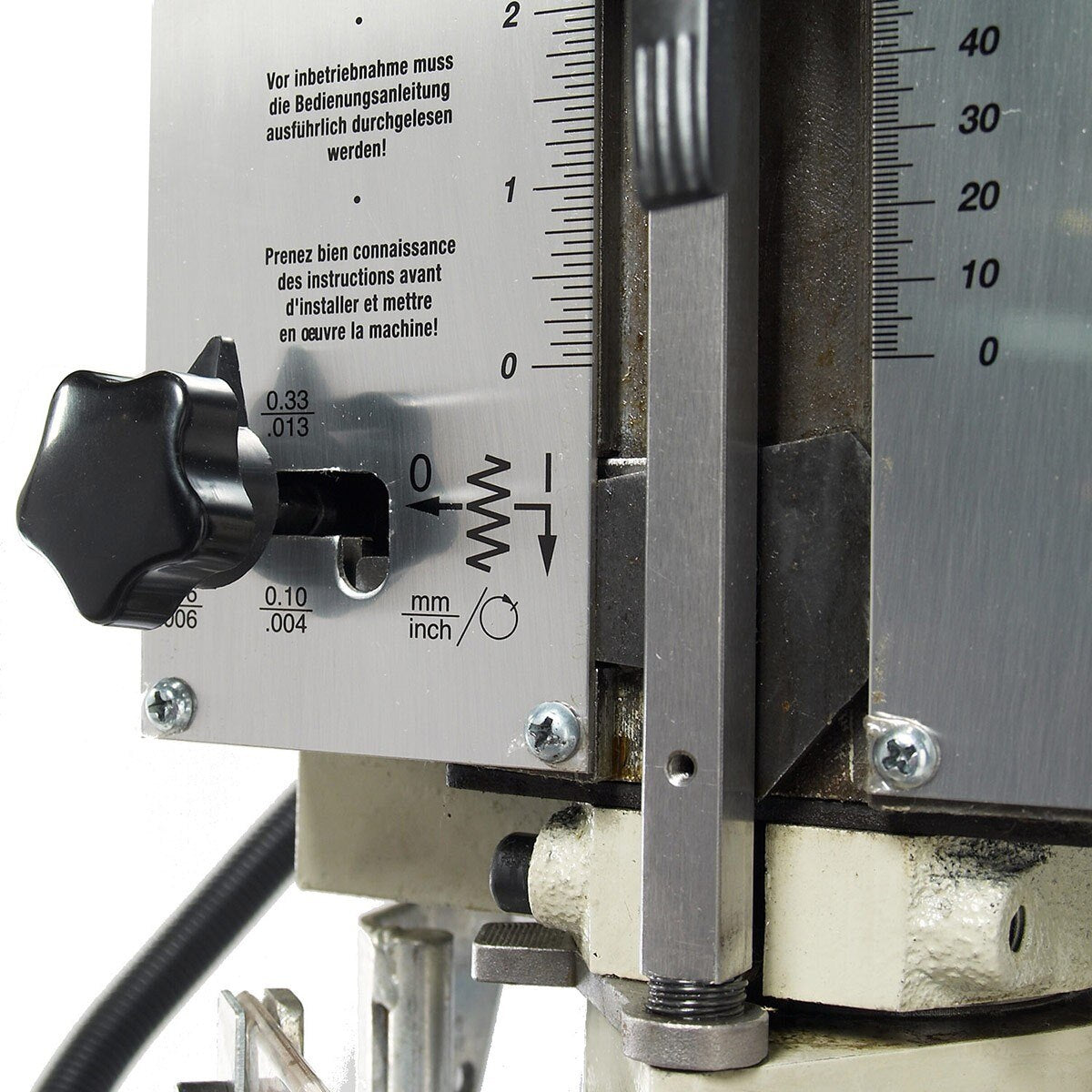

- Includes an auto tapping feature with a 1.3” capacity.
- Variable-speed drill press lets you select the correct setting for a project within the continuous range of 108 to 1800 rpm.
- Standard #4 Morse taper transfers power from the gear head to the material.
- Cast iron base and mighty 5.5" diameter steel column eliminate flexing for heavy feeds at max capacity.

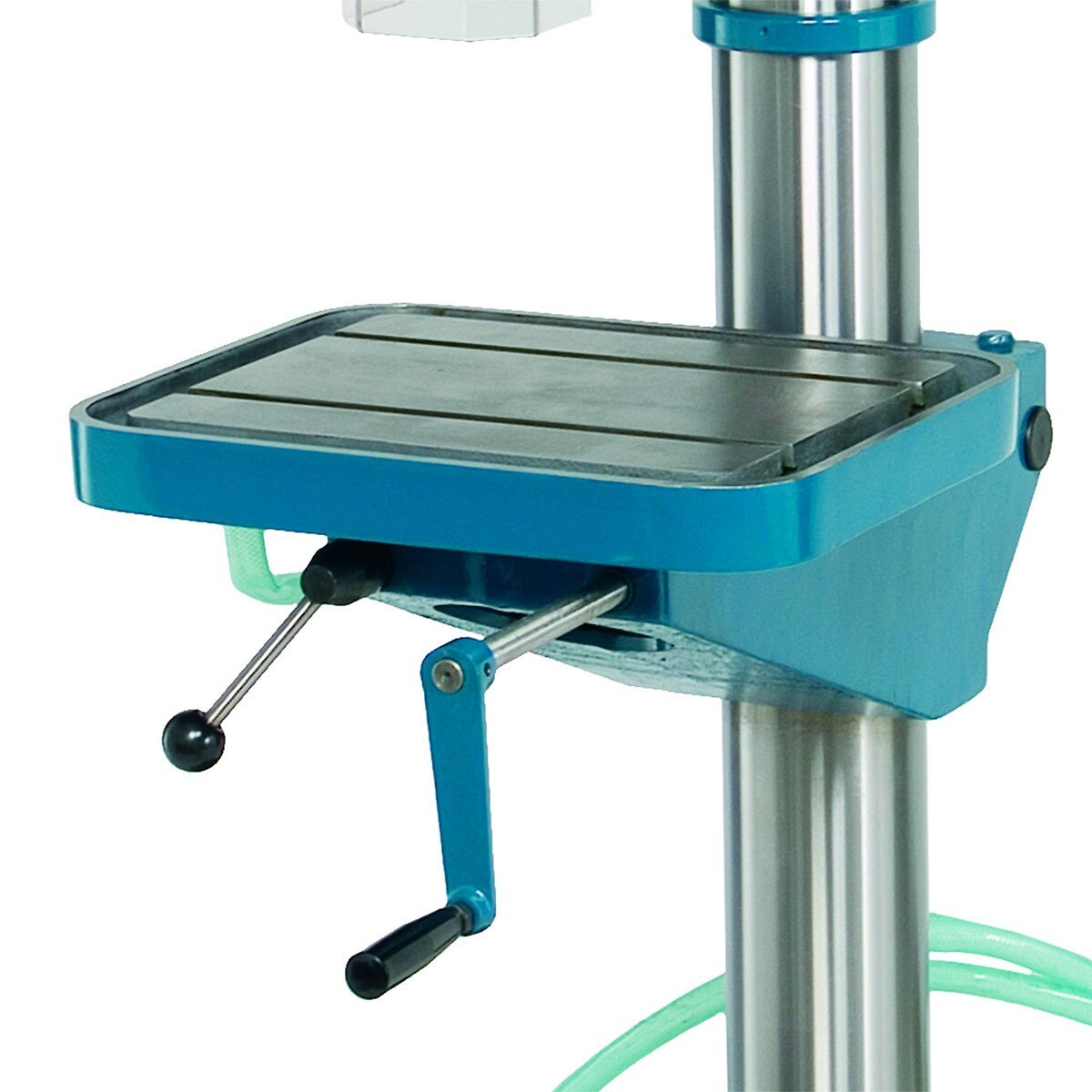

- 20" x 16" table features large T-slots for a vise or fixture to hold material securely.

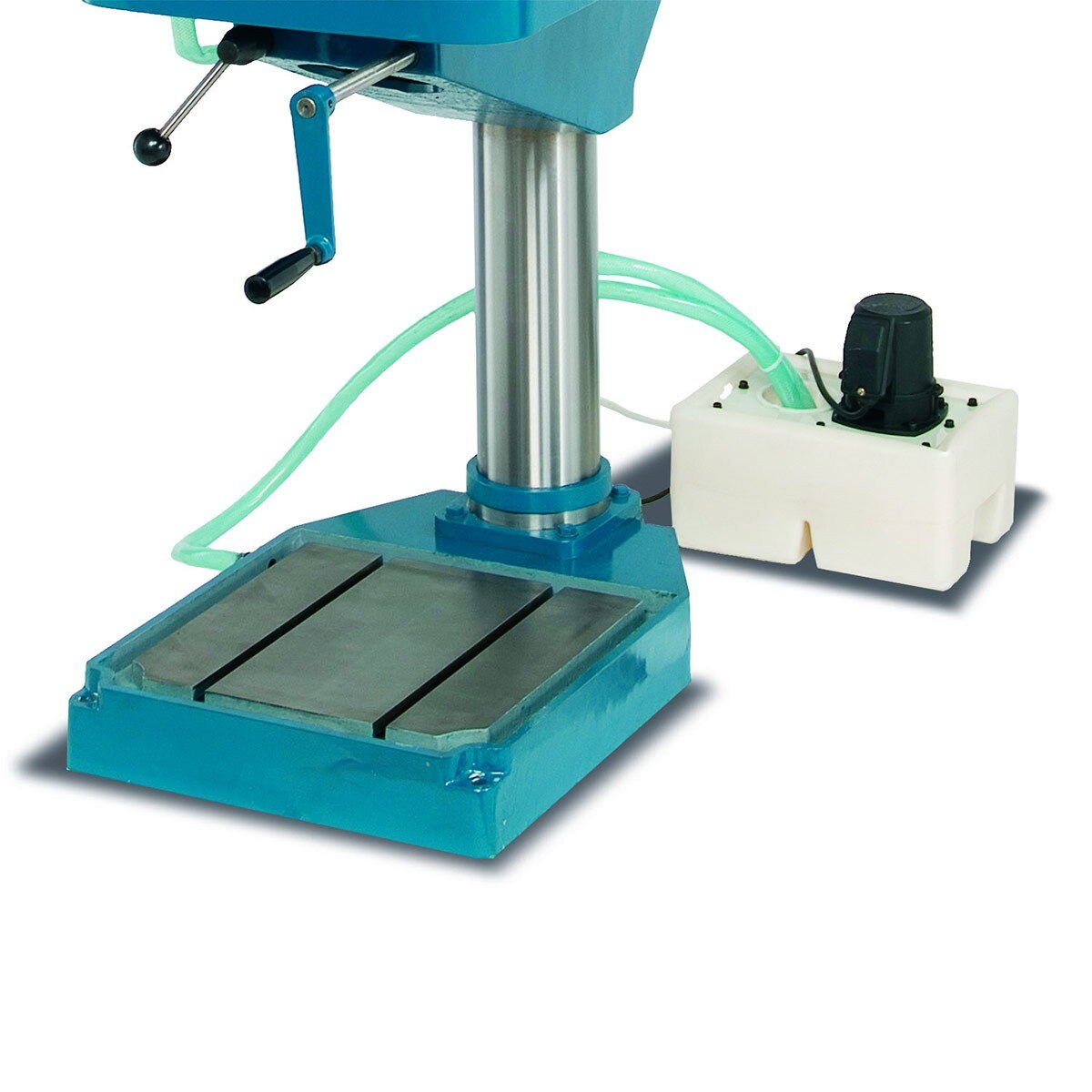

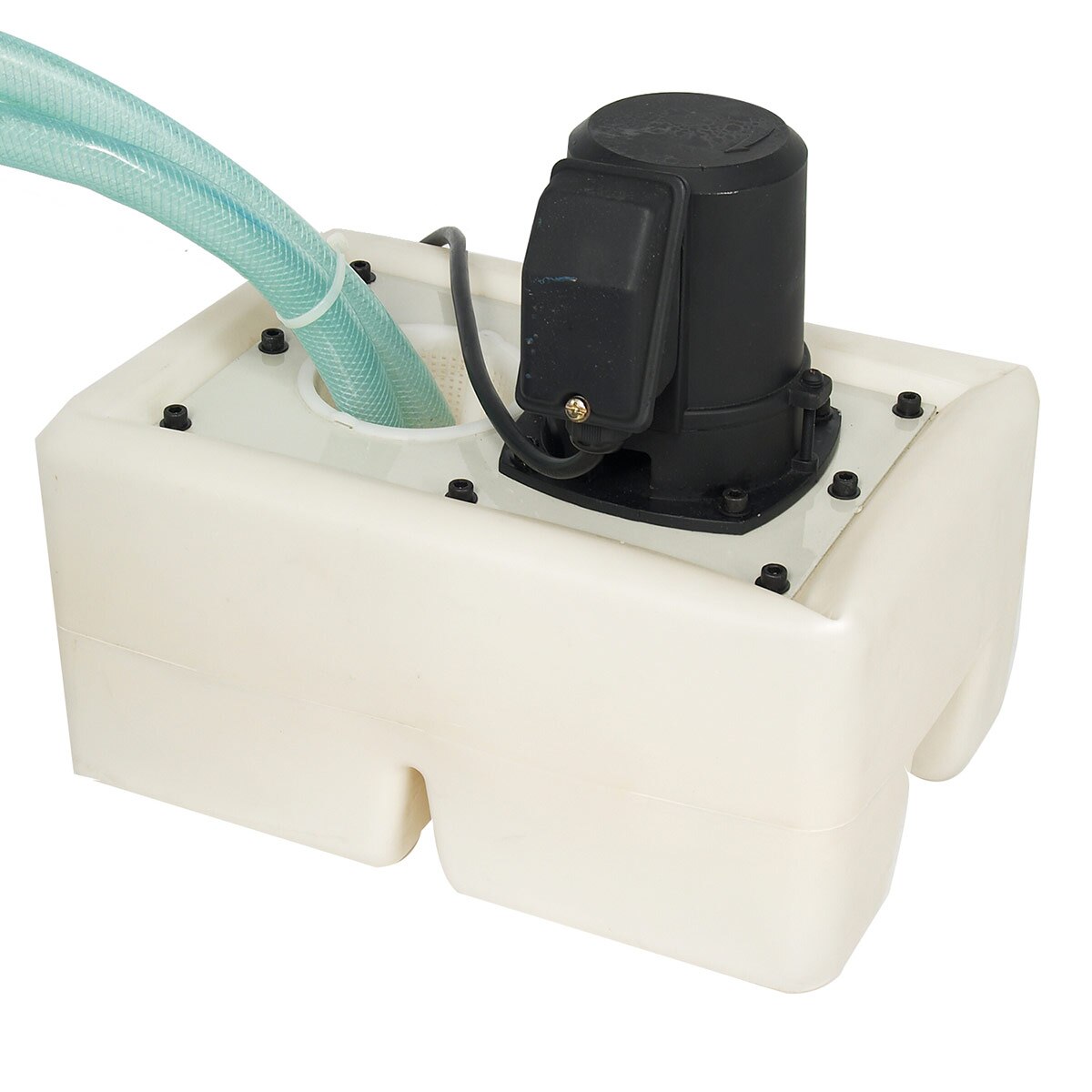

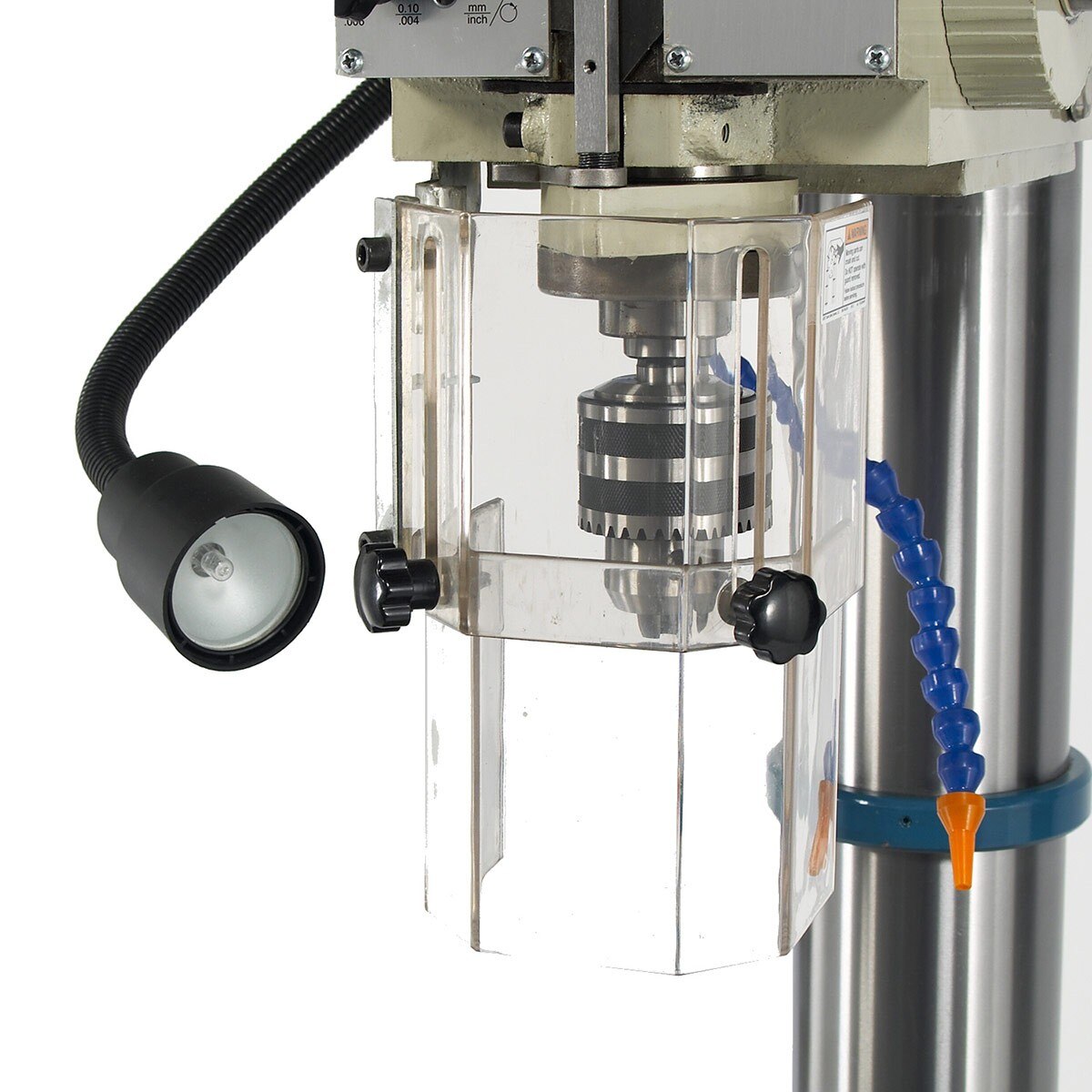

- Includes a chuck, coolant system and a flexible halogen work light as standard features, not upgrades.
- Protective shield around drill head keeps you and your shop safe.
- Baileigh backs this heavy-duty drill press for sale with a 1-year parts warranty.
Baileigh Industrial 1002872 Specifications
| Table Size | 20" x 16" |
| Motor | 3.5 HP |
| Spindle Speed | 108 – 1800 RPM |
| Spindle Taper | MT 4 |
| Tapping Capacity | 1.3" |
| Power | 220V / 3-phase |
| Drill Capacity | 1.5" |
| Spindle Travel | 7.48" |
| Base Dimensions (L x W) | 19.5" x 28" |
| Country of Origin | China |
