Baileigh Industrial 1000260 Description

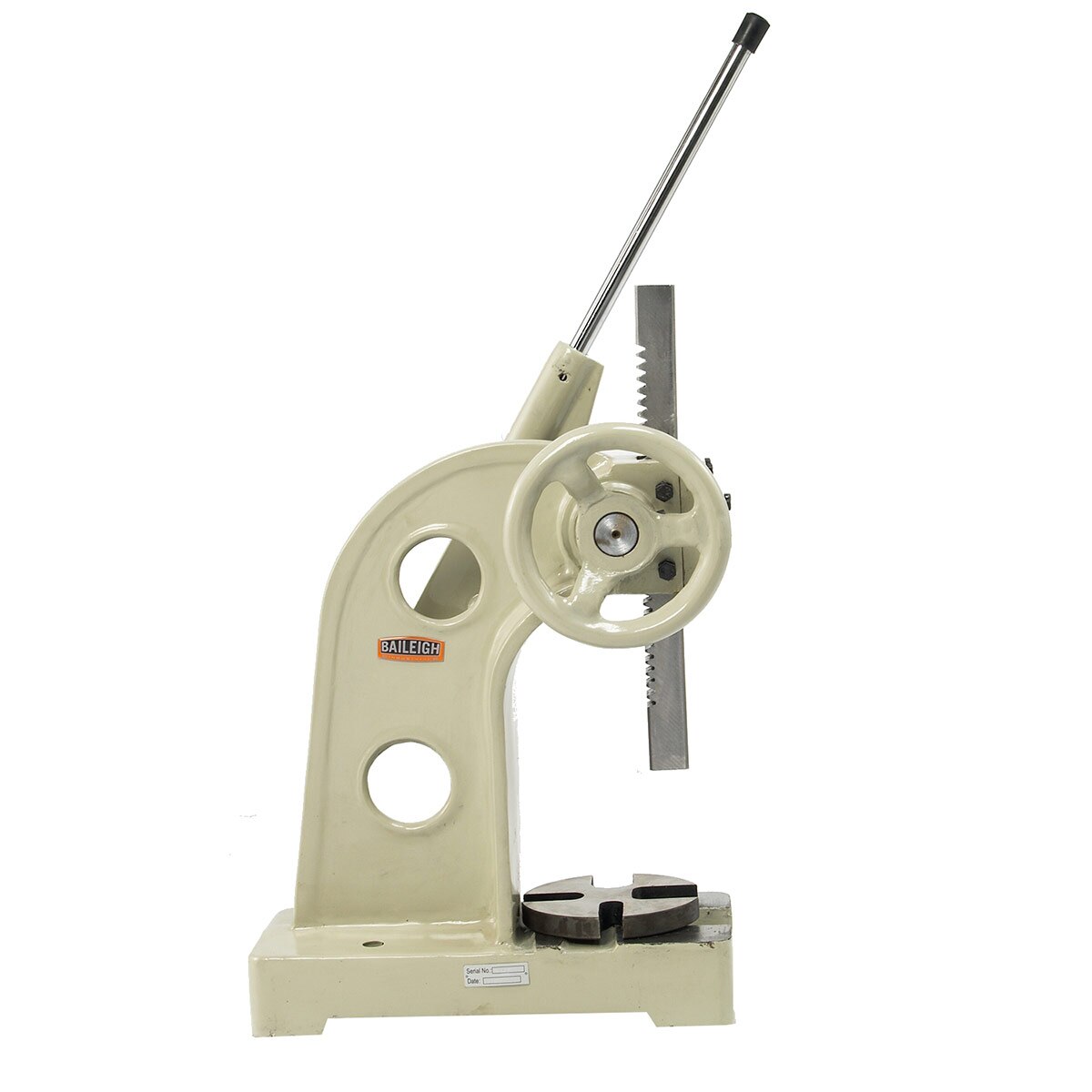

The AP-3R is a 3 ton arbor press that has a heavy duty cast iron frame. This sheet metal forming arbor press machine is a ratchet leverage machine that allows the operator to get the most leverage out of each pull of the handle using a ratchet actuator. There is a rapid transfer flywheel that allows you to lift or lower the ram with great speed and it allows for small motions as well for set up before pressing the items at hand. There is a machined 4 position bottom plate that is perfectly perpendicular to the ram that has the proper opening for most broaches to push through. This arbor press has a solid, case hardened ram for perfect presses every time and offers years of profitable duty at full capacity. All Baileigh arbor presses can be bench or pedestal mounted. The AP-3R arbor press has a 5 inch throat opening and can handle material up to 11 inches high. For inquiring minds, please call for further information on any of our metal forming arbor presses. Baileigh arbor presses are a great value and are typically in stock.
Baileigh Industrial 1000260 Includes
- (1) Arbor Press
Baileigh Industrial 1000260 Features
- 3 ton arbor press has a 5” throat opening and can handle material up to 11” high.

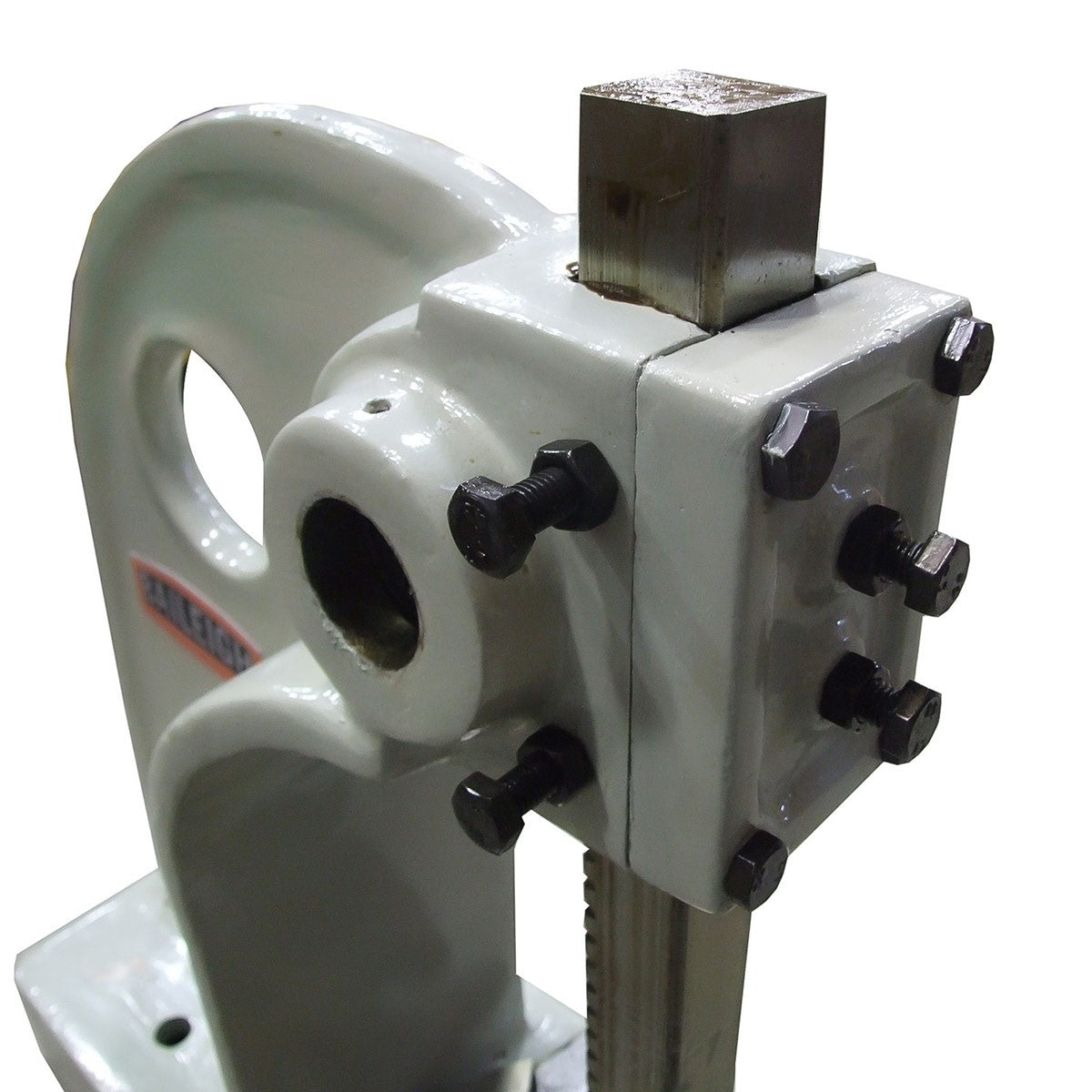

- Solid, case-hardened square 1.5” ram executes precise presses every time.
- Ratchet leverage gives the operator fine control over pressure.

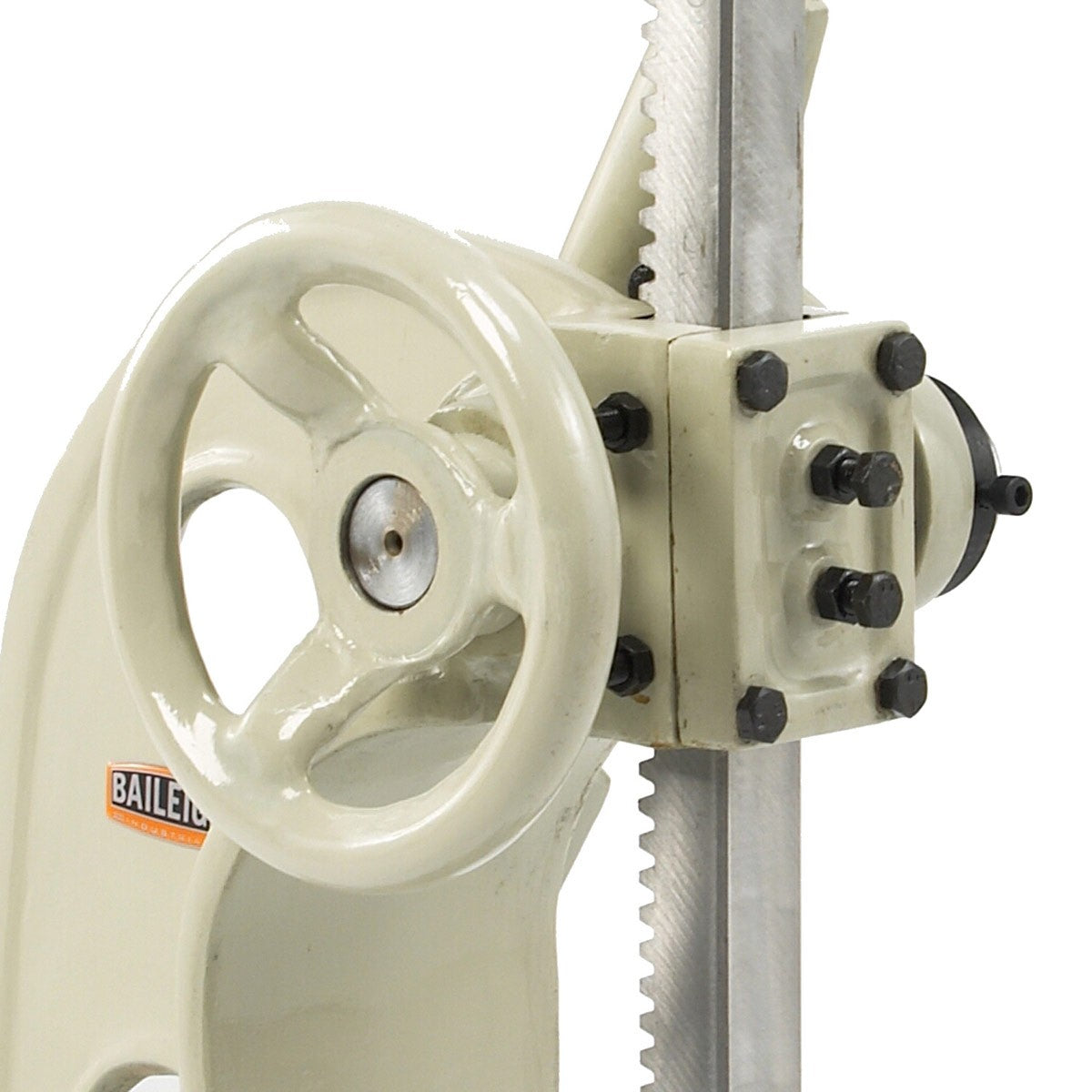

- Rapid-transfer flywheel allows you to lift or lower the ram quickly and fluidly.
- Flywheel also allows for small, delicate motions, so that you can set up the item to be pressed before lowering the ram.
- Slideaway allows for adjustment of tension and gap.

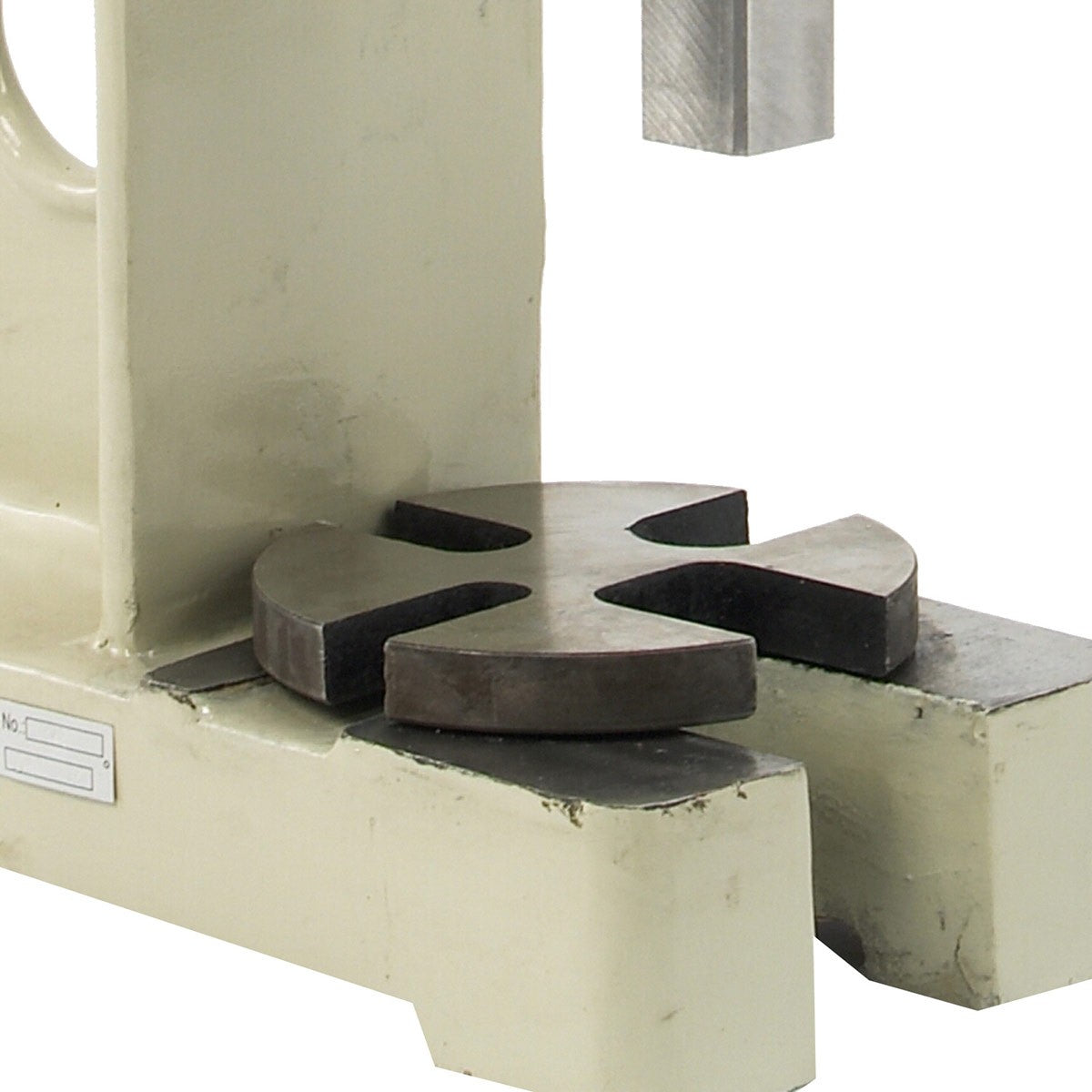

- Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
- Bottom die plate includes the proper openings for most broaches to push through.
- Rigid cast iron frame avoids flex and maintains accuracy.
- You can easily mount the press to a bench or pedestal.
- We typically keep this industrial arbor press in stock for fast shipments..
- 3 ton arbor press comes with a 1-year warranty, backed by Baileigh.
Baileigh Industrial 1000260 Specifications
| Dimensions | 48" x 31" x 15" |
| Capacity | 3 tons |
| Ram Size | 1.5" |
| Ram Travel Per Revolution | 6" |
| Throat Depth | 5" |
| Vertical Throat Opening | 11" |
| Power | Manual |
| Country of Origin | China |
