Baileigh Industrial 1004828 Description

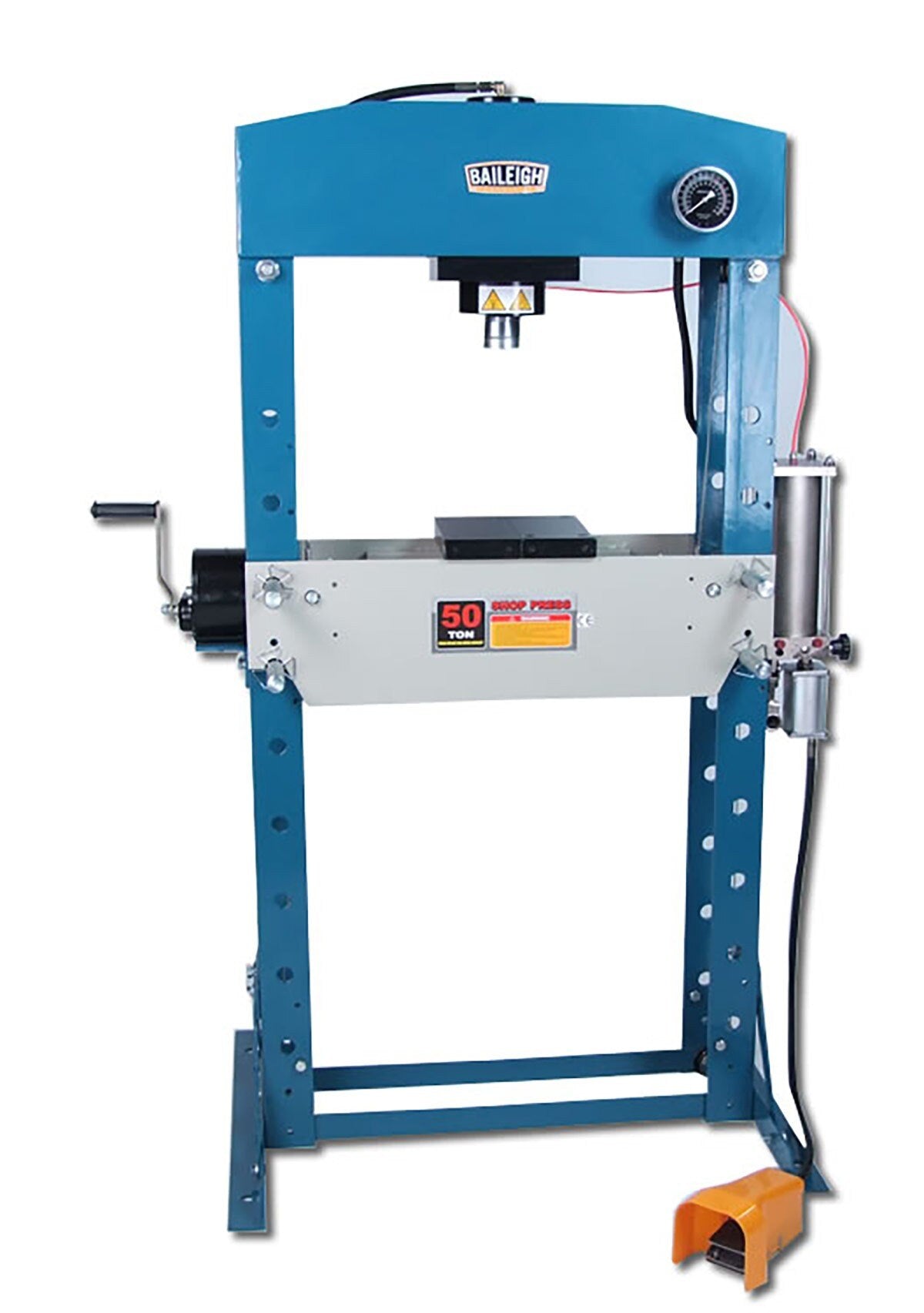

The most popular kind of H-frame press in fabrication and machine shops is the 50-ton upright. You won’t find a higher quality 50-ton pneumatic shop press than Baileigh’s Air/Hand Operated H-Frame Press HSP-50A. This press features a fully welded main frame for maximum rigidity allowing the operator to use all 50 tons that are available from the HSP-50A.
Baileigh Industrial 1004828 Includes
- (1) H-Frame Press
Baileigh Industrial 1004828 Features
- 28.5” working width.

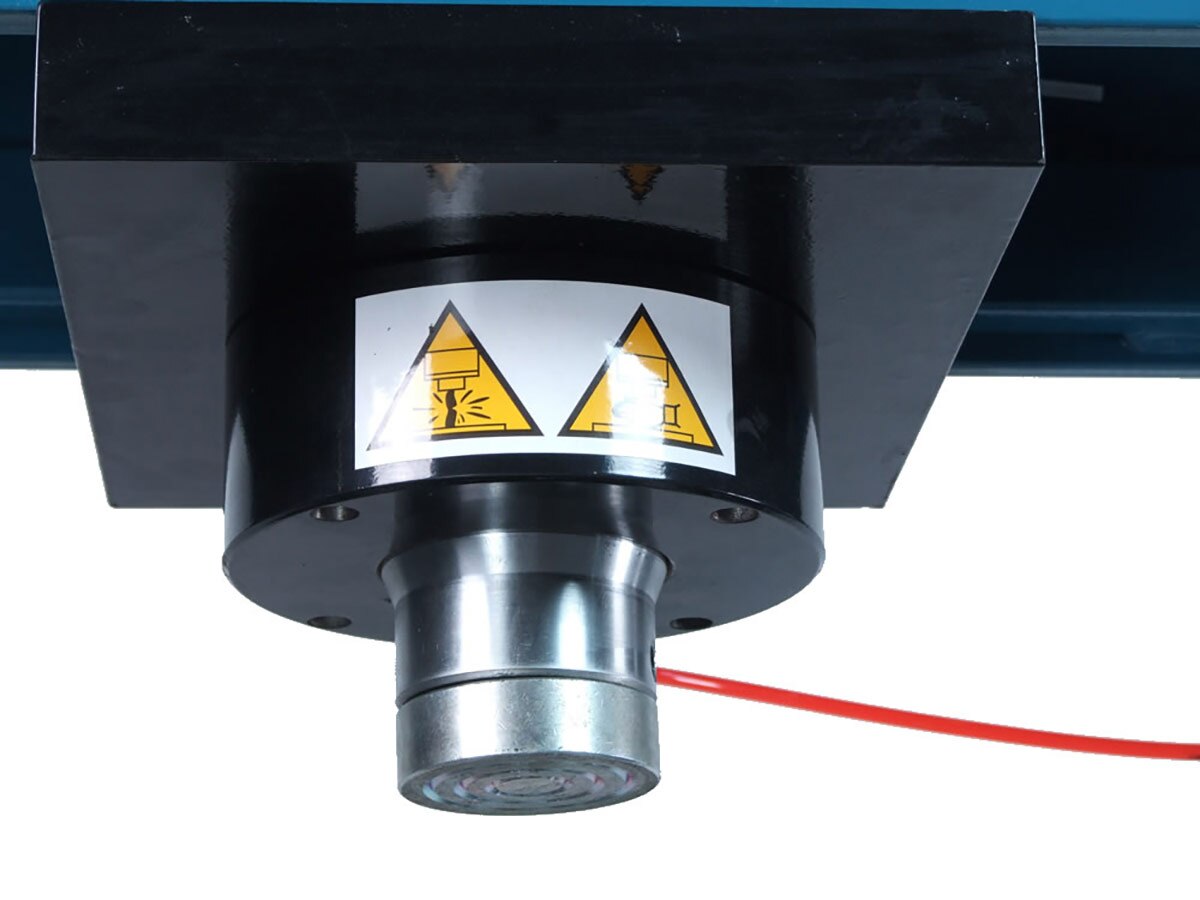

- Large 6” diameter cylinder with 7.8” stroke.
- Industrial-grade hydraulics ensure years of smooth, useful operation.

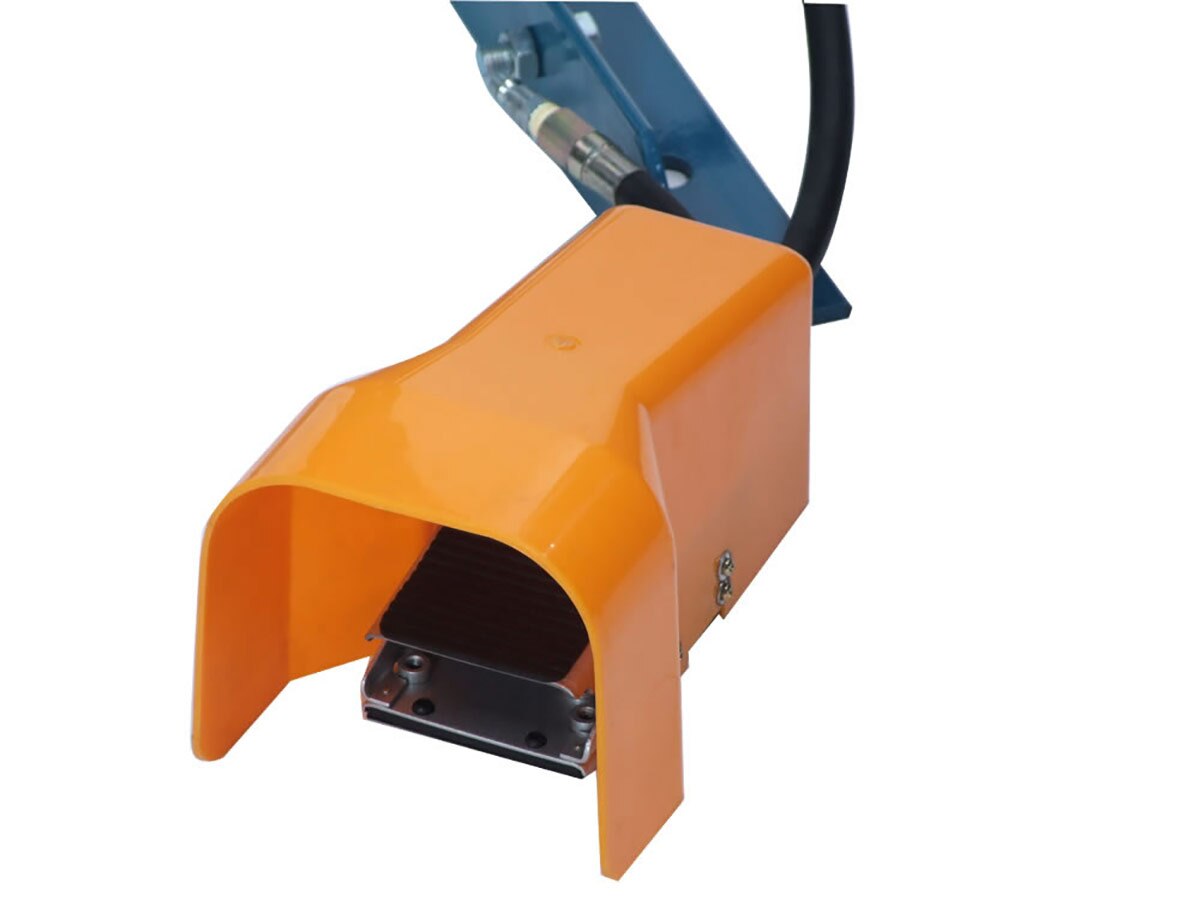

- Foot pedal allows for simple and convenient machine control.

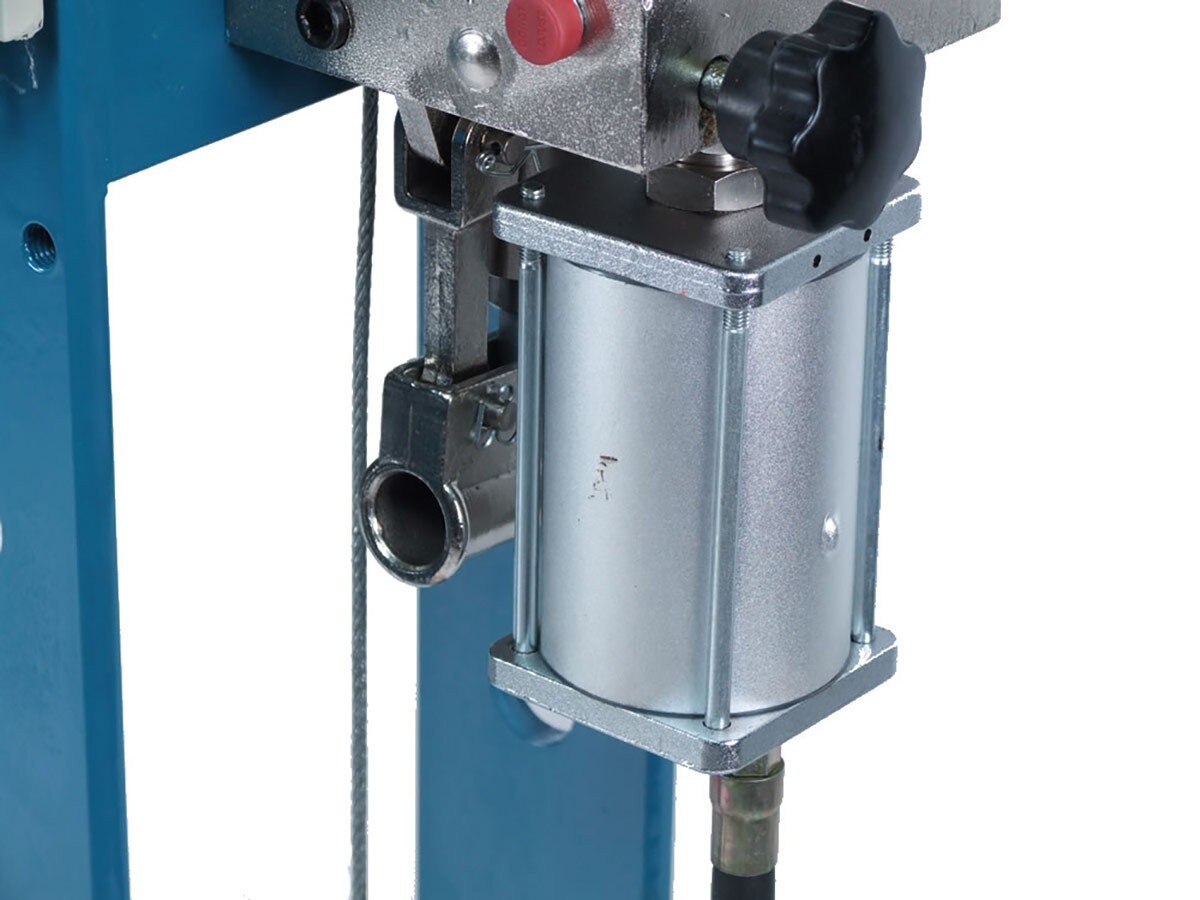

- Manual hand pump on the side of the HSP-50A offers more control for delicate applications.

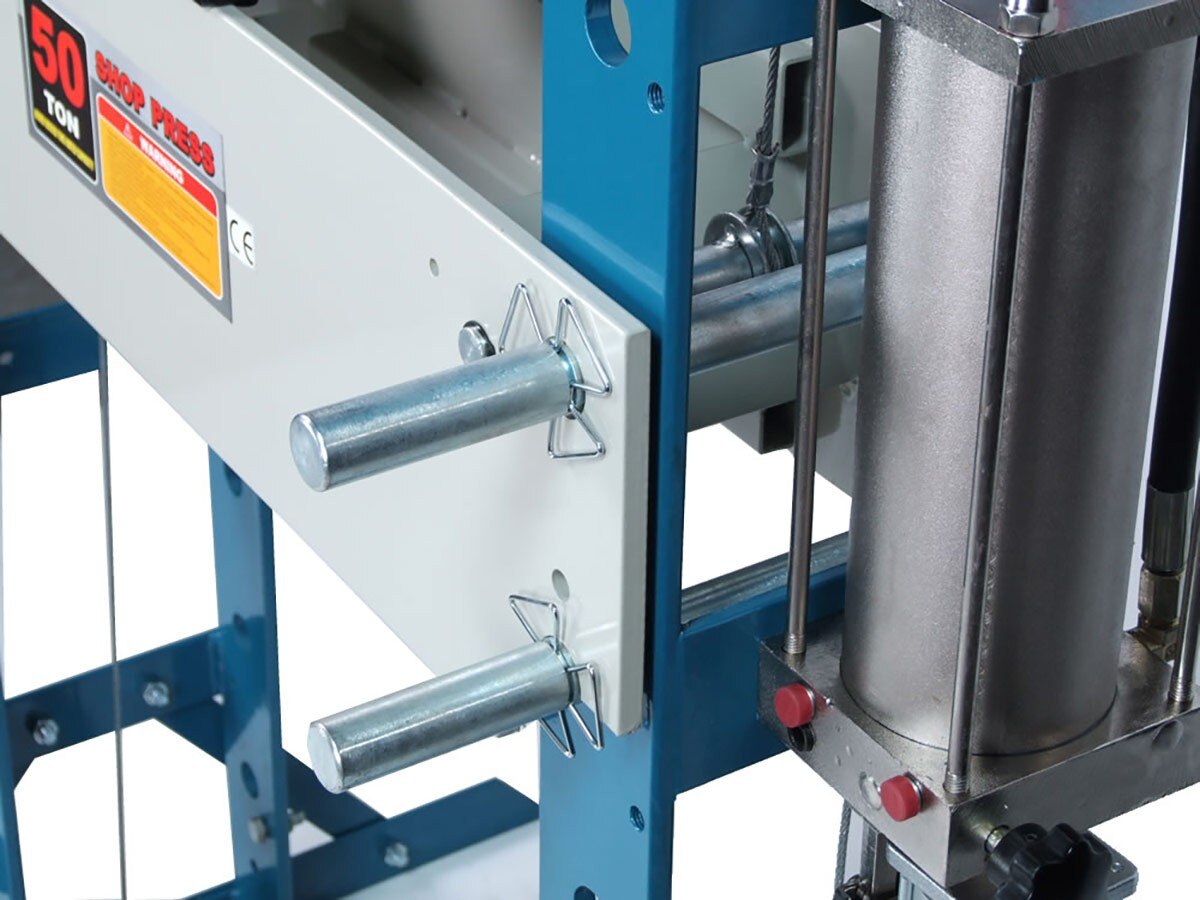

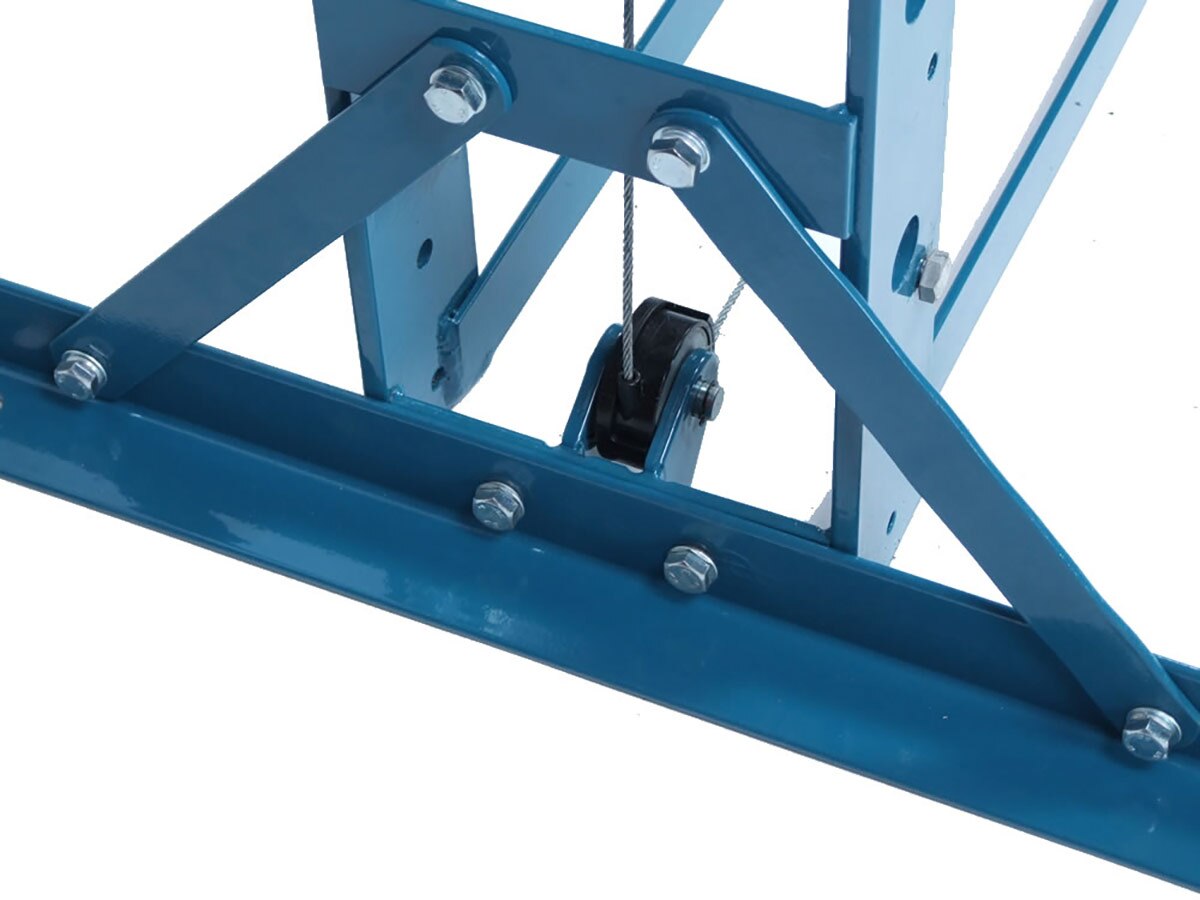

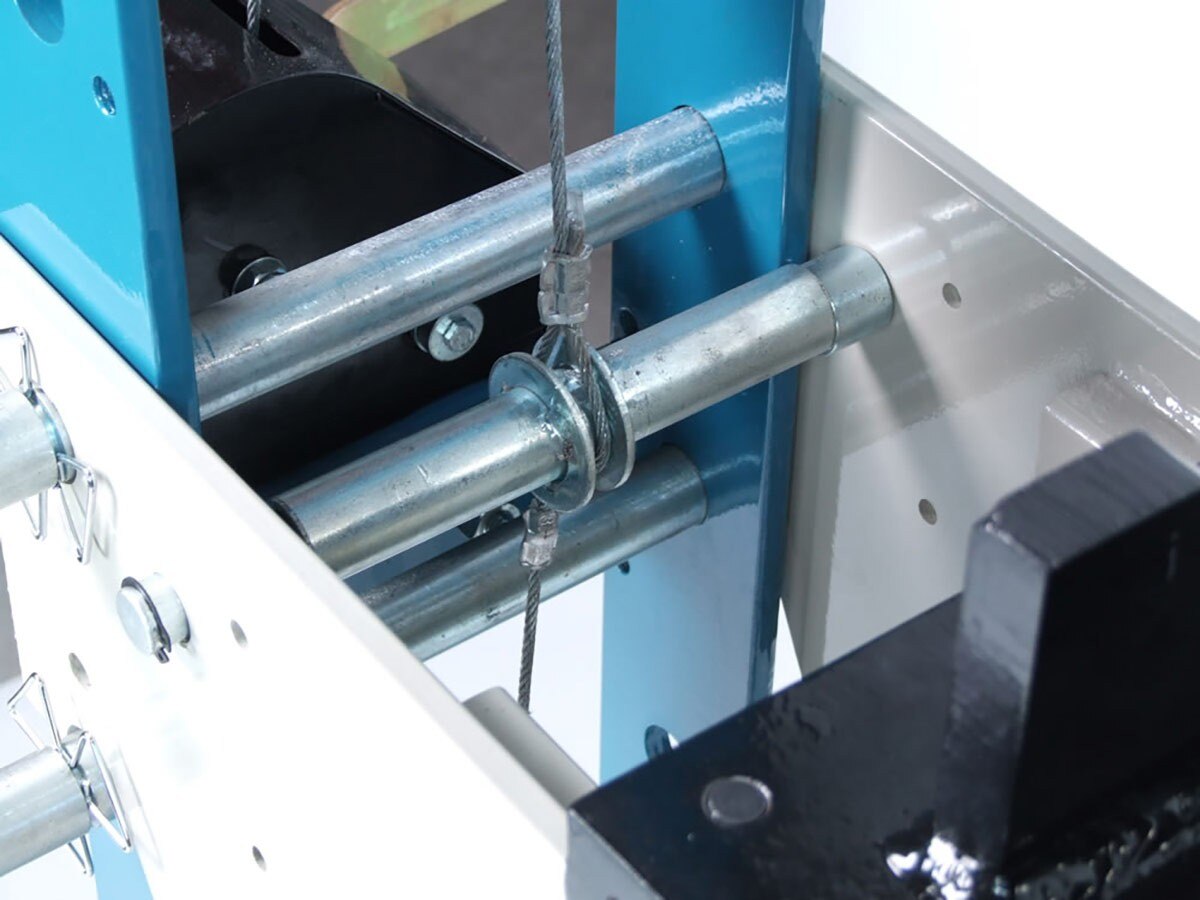

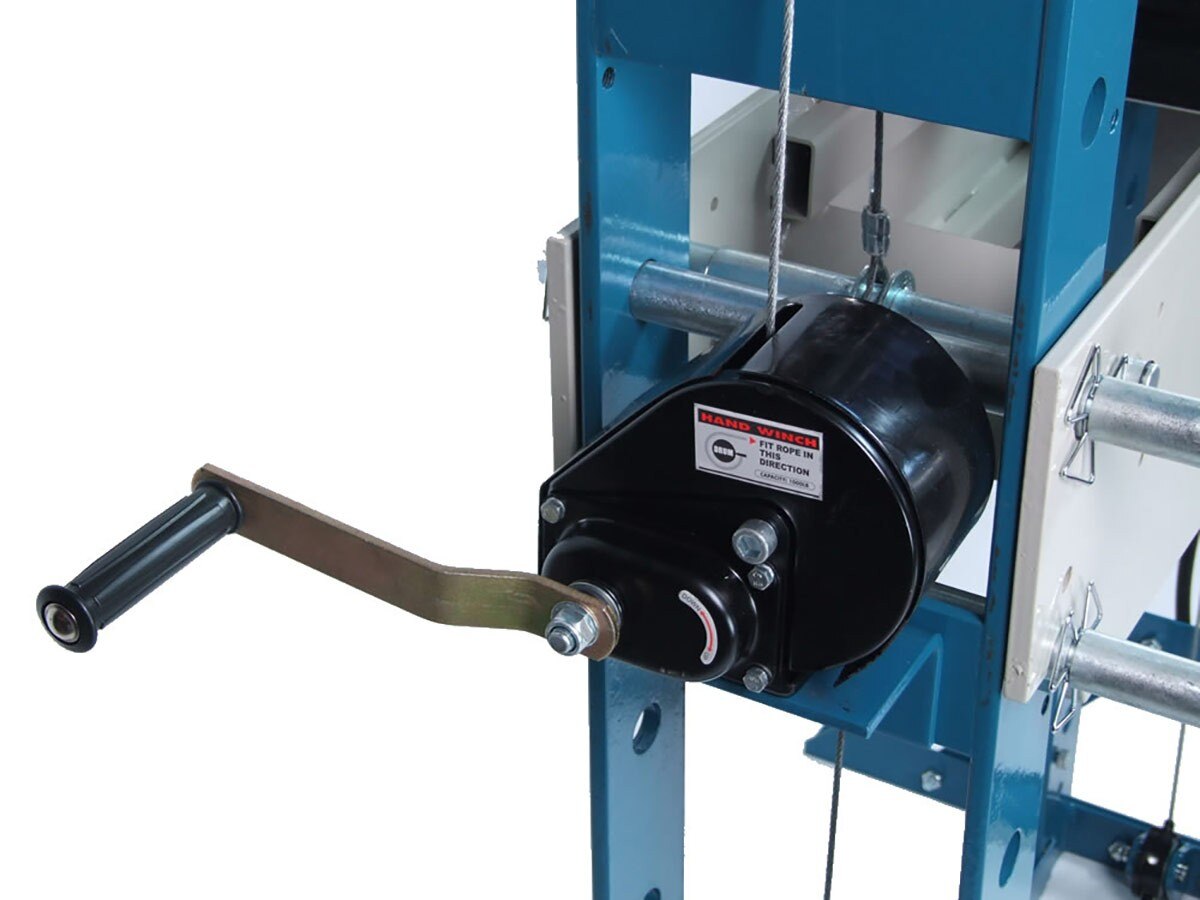

- Winch and pulley system lets you lift and lower the working table to save time (and back strain!) when you have to relocate the table.
- Fully-welded steel main frame for maximum rigidity, so you can use all 50 tons of force regularly without the machine buckling under the pressure.

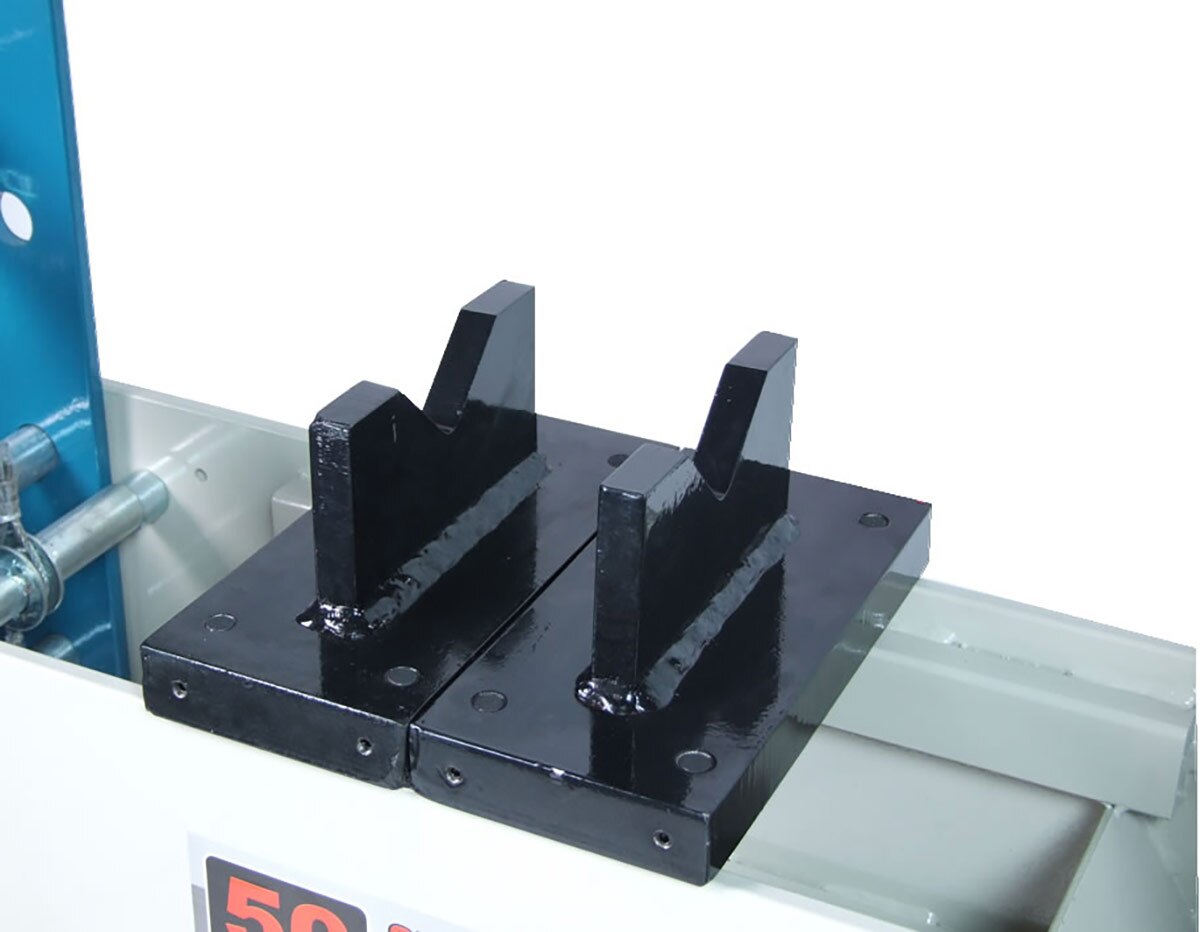

- Comes standard with a set of V-blocks.
- Covered by a 1-year parts warranty
Baileigh Industrial 1004828 Specifications
| Piston Head Diameter | 2.75" |
| Movable Cylinder | Yes |
| Working Width | 28.5" |
| Maximum Capacity | 50 Tons |
| Cylinder Stroke | 7.8" |
| Cylinder Diameter | 6" |
| Distance From Table To Ram | Min. 2.72" - Max. 41.26" |
| Power | Pneumatic / Manual |
| Dimensions (L x W x H) | 84" x 39" x 16" |
| Country of Origin | China |
