Baileigh Industrial 1001521 Description
This horizontal band saw has an impressive track record: 10+ years of dependable use. The BS-330SA will improve your efficiency with a hydraulic vise, downfeed, and bow return. The BS-330SA semi-automatic band saw from Baileigh Industrial is based off of the BS-330M, which has been a mainstay in our lineup since it was introduced in 2005. Because of its great history, this saw will provide years of trouble free use in any environment. The BS-330SA uses an industrial grade hydraulic system to clamp the vise, lower the head, and raise the head back up after the cut is done. This system greatly improves productivity.
Baileigh Industrial 1001521 Includes
- (1) Band Saw
Baileigh Industrial 1001521 Features
- Maximum capacity of 13” OD round at 90°.
- Accepts a 1.25” blade, a large size for greater accuracy and speed.
- Variable blade speed ranges from 82 to 270 fpm.

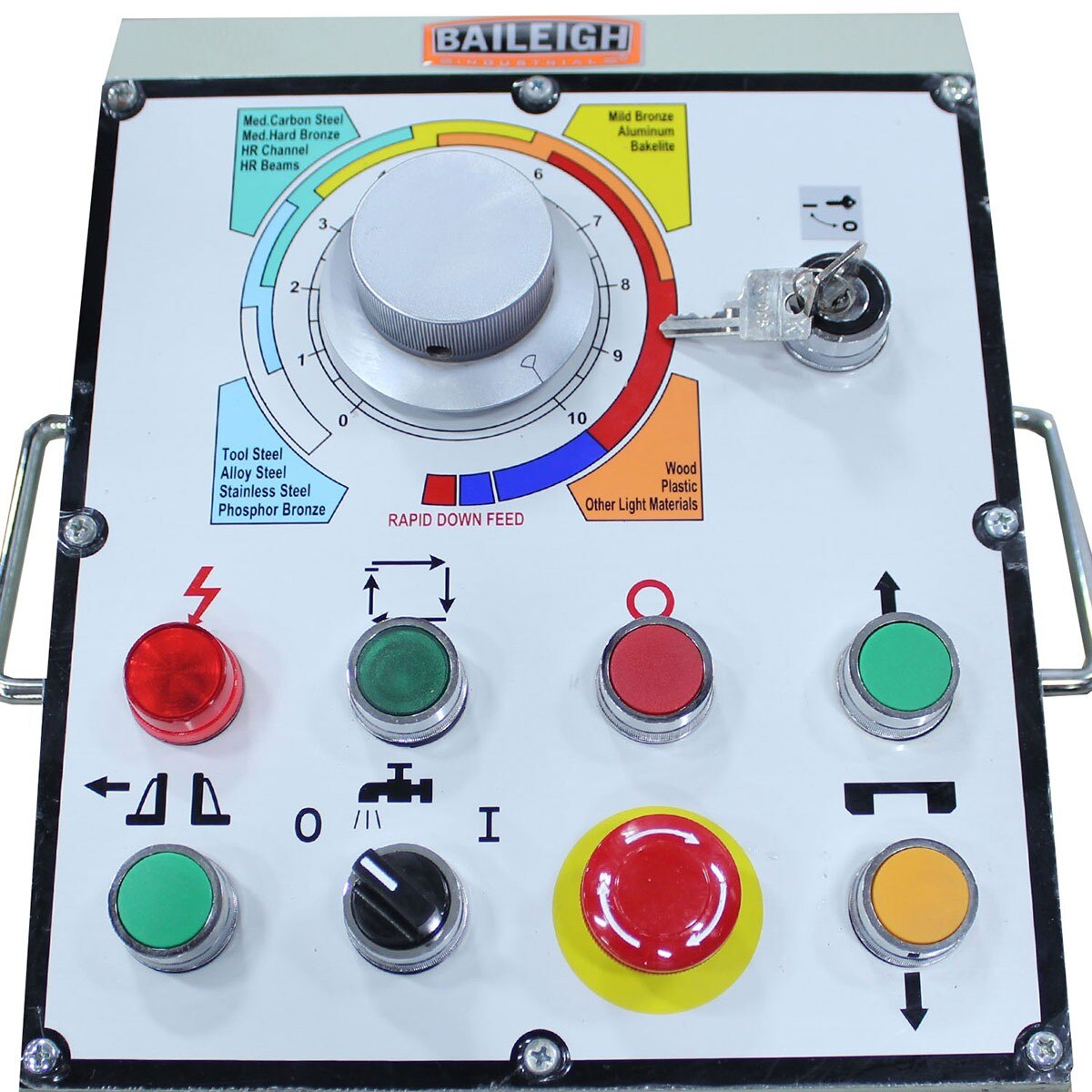

- You can adjust the dial to set the speed at the perfect fpm for your material.
- 3 hp motor runs on 220-volt three-phase power.
- Gear-driven transmission makes the machine more reliable. No belts to break and replace.
- Saw head miters up to 45°.

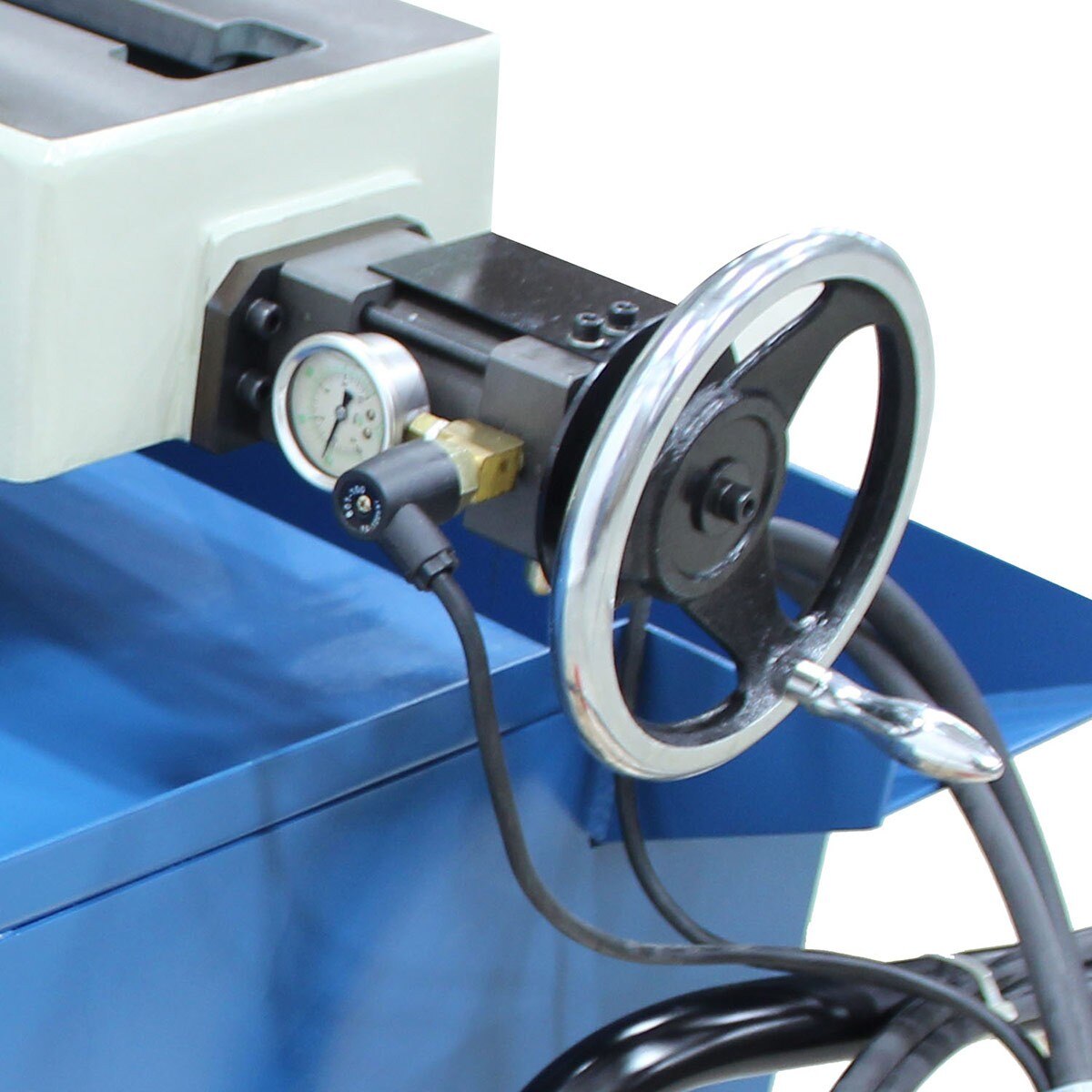

- Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done.
- Cast iron mitering head and bow reduce vibrations when cutting.
- Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut.
- Laser pointer guide lets you see where the cut will be, for more accurate work.

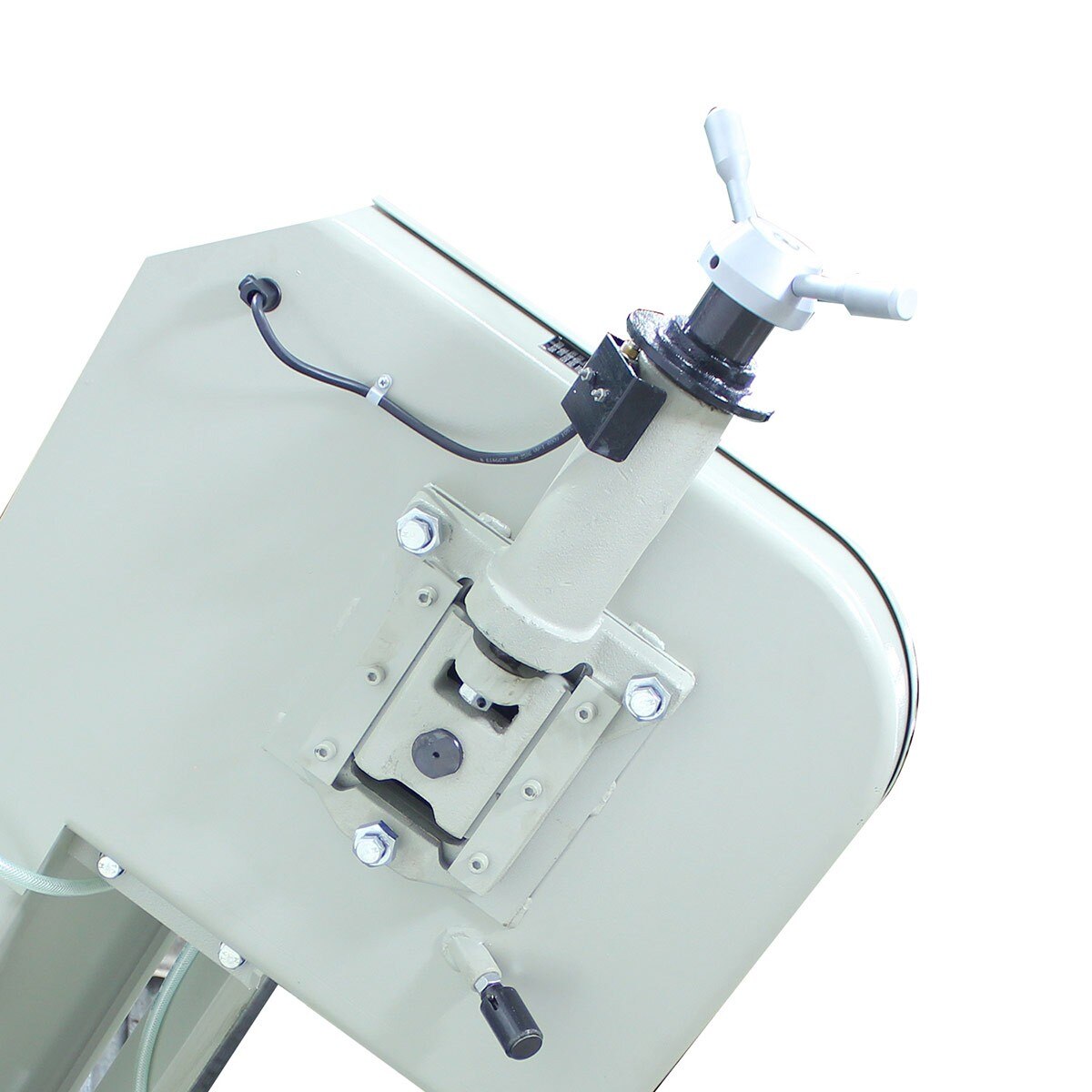

- Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area.
- Electro-welded steel construction keeps the machine stable for more accurate cutting.

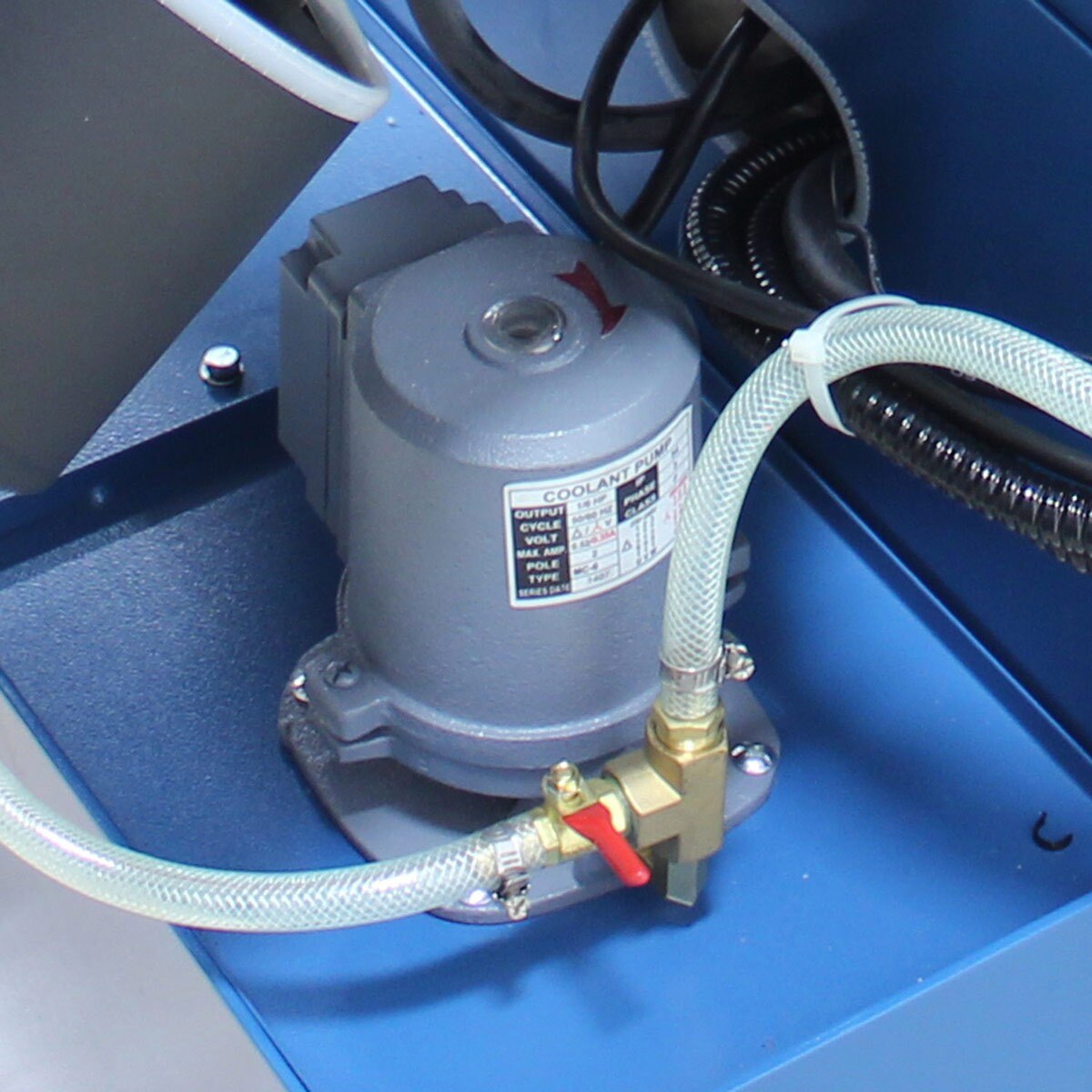

- Large-capacity flood coolant system washes away metal chips and helps blades last longer.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1001521 Specifications
| Dimensions | 90" x 38" x 60" |
| Return | Hydraulic |
| Miter Adjustment | Swivel Head and Vise |
| Miter Angle | 0 – 45° |
| Motor | 3 HP |
| Capacity Rectangular 90 x 45 x 45L | 13" x 18.9" x 11" x 10.04" |
| Capacity Round 90° x 45° | 13" x 8.86" |
| Capacity Square 90° x 45° | 13" x 8.86" |
| Table Height | 30.5" |
| Blade Guide | Carbide x Roller |
