Description
Baileigh Industrial 1006841 Description
Losing too much money on scrap metal? Hone your shop’s efficiency and reduce waste with this fast and accurate double-pinch ring roller. Cut out those costly straight segments at the start and finish of bends with our double-pinch system, allowing you to pre- and post-bend the material.
Baileigh Industrial 1006841 Includes
- (1) Hydraulic Roll Bender
Baileigh Industrial 1006841 Features
- Runs on 220-volt 3-phase power.
- Bends up to 4" round tube, 3” schedule 40 pipe, and 3.375” x 3.375” x .25” angle iron.
- 3 rolls driven by industrial-grade hydraulic transmission.

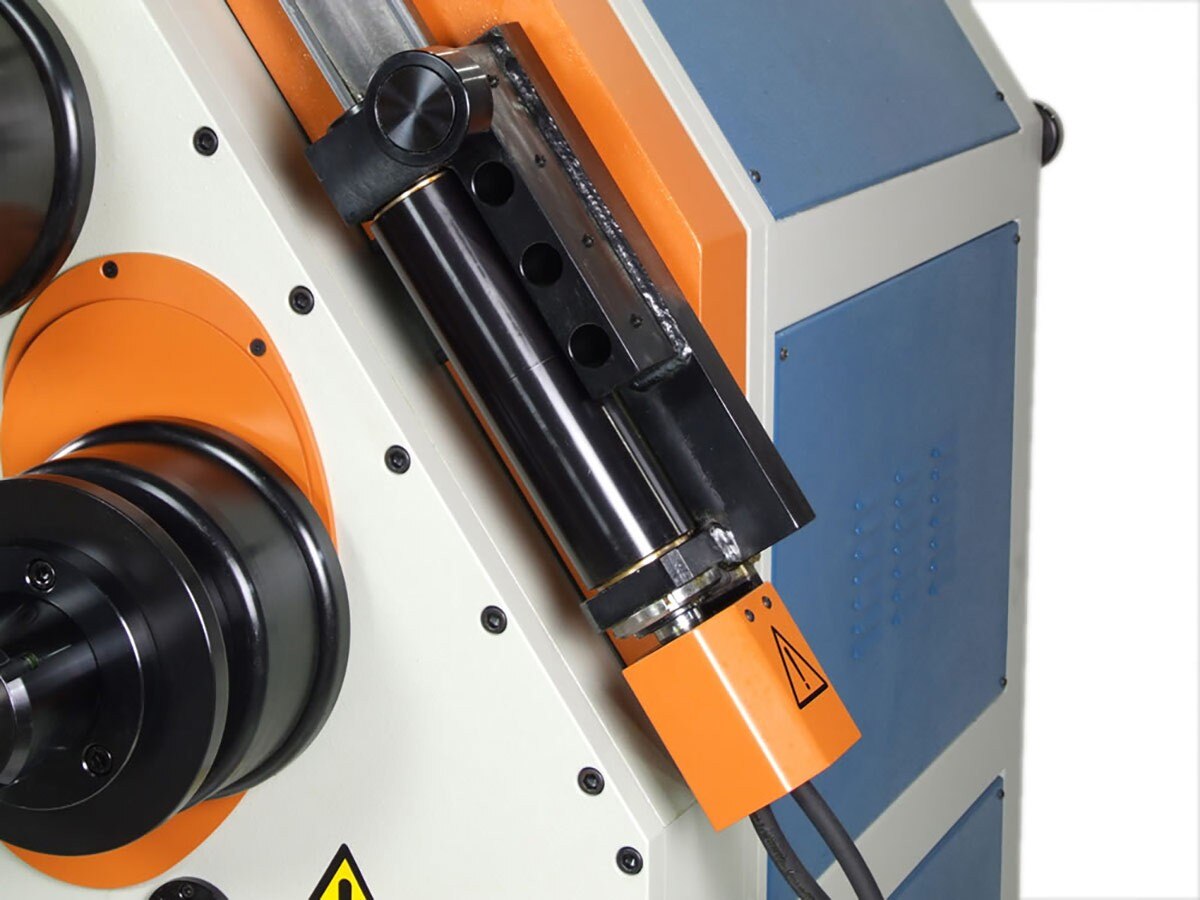

- Double-pinch design consists of 1 fixed top roll plus 2 bottom rolls moved by independent hydraulic cylinders.
- Hydraulic encoders communicate exact roll positioning to integrated digital readout programmers, making repeatability a cinch.

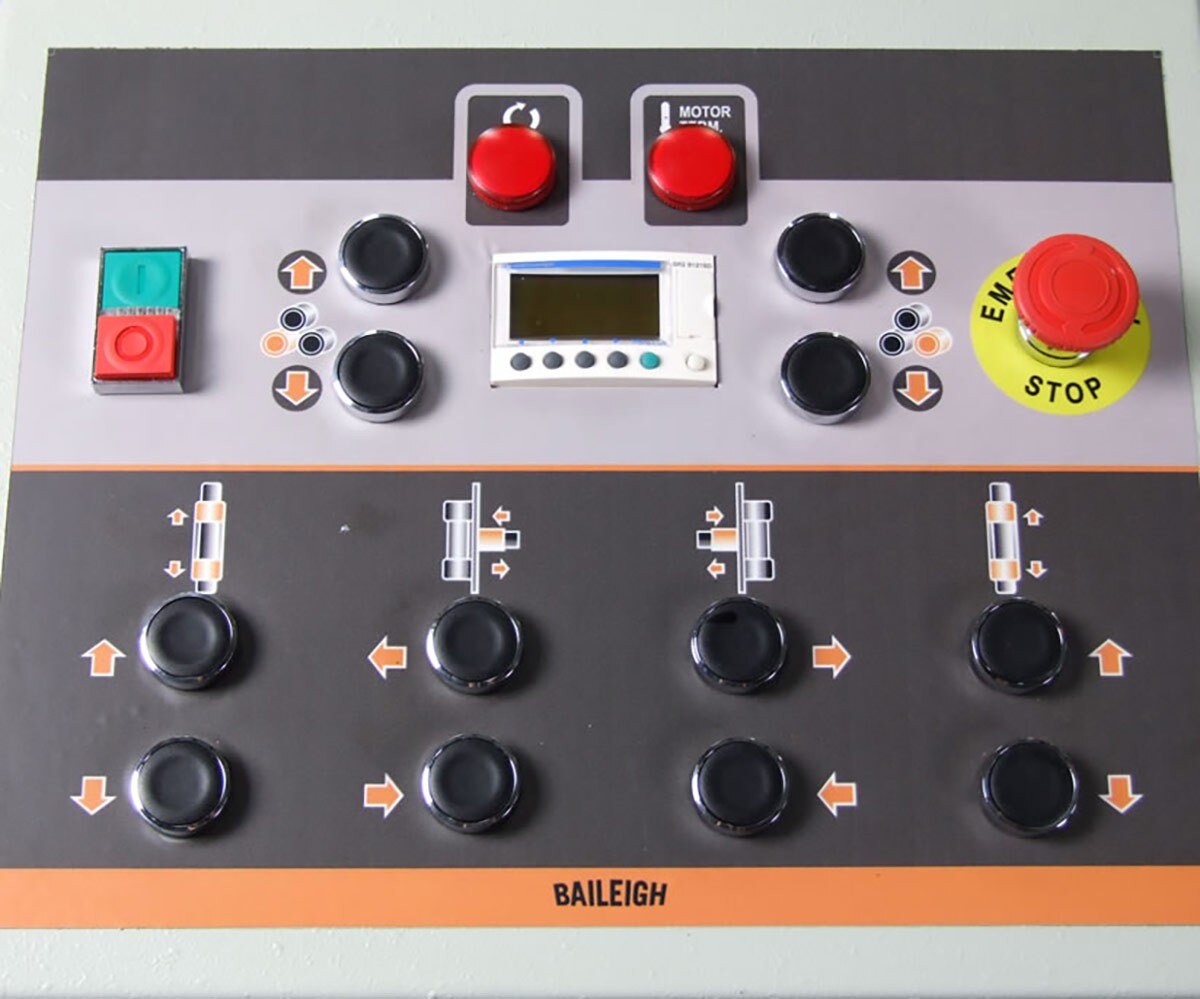

- You can control all machine movement of the machine from the podium-mounted operator panel with attached foot pedal.
- Hydraulic lateral guide rolls prevent the material from twisting and correct bend angles.

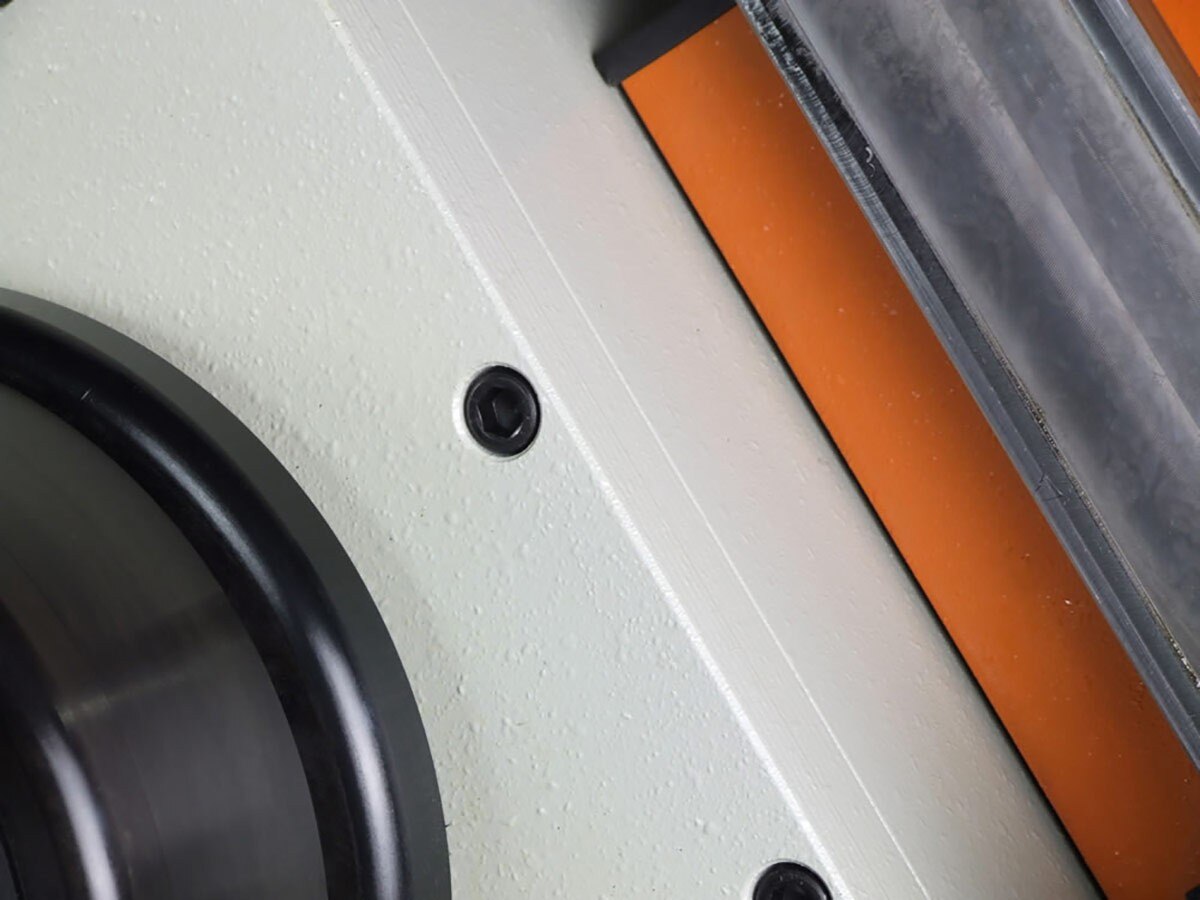

- We bolt and weld the heavy steel plate frame for structural strength so that it won’t flex even at full capacity.
- Baileigh covers this tubing roller with a 1-year parts warranty.
Baileigh Industrial 1006841 Specifications
| Roll Adjustment | Hydraulic |
| Pipe Capacity Size | 3" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 4" (.120") / Min. Dia. |
| Square Tube Capacity Size | 2.75" (.157") / Min. Dia. |
| Solid Round Capacity Size | 2.375" / Min. Dia. 40" |
| Flat Bar Easy Way Size | 5" (1") / Min. Dia. 24" |
| Flat Bar Hard Way Size | 4" (.787")/ Min. Dia. |
| Angle Iron Capacity Size | 3.375" (.250")/ Min. Dia. |
| Shaft Diameter | 3.15" |
| Lower Roll Dia. | 9.65" |
