Baileigh Industrial 1000923 Description

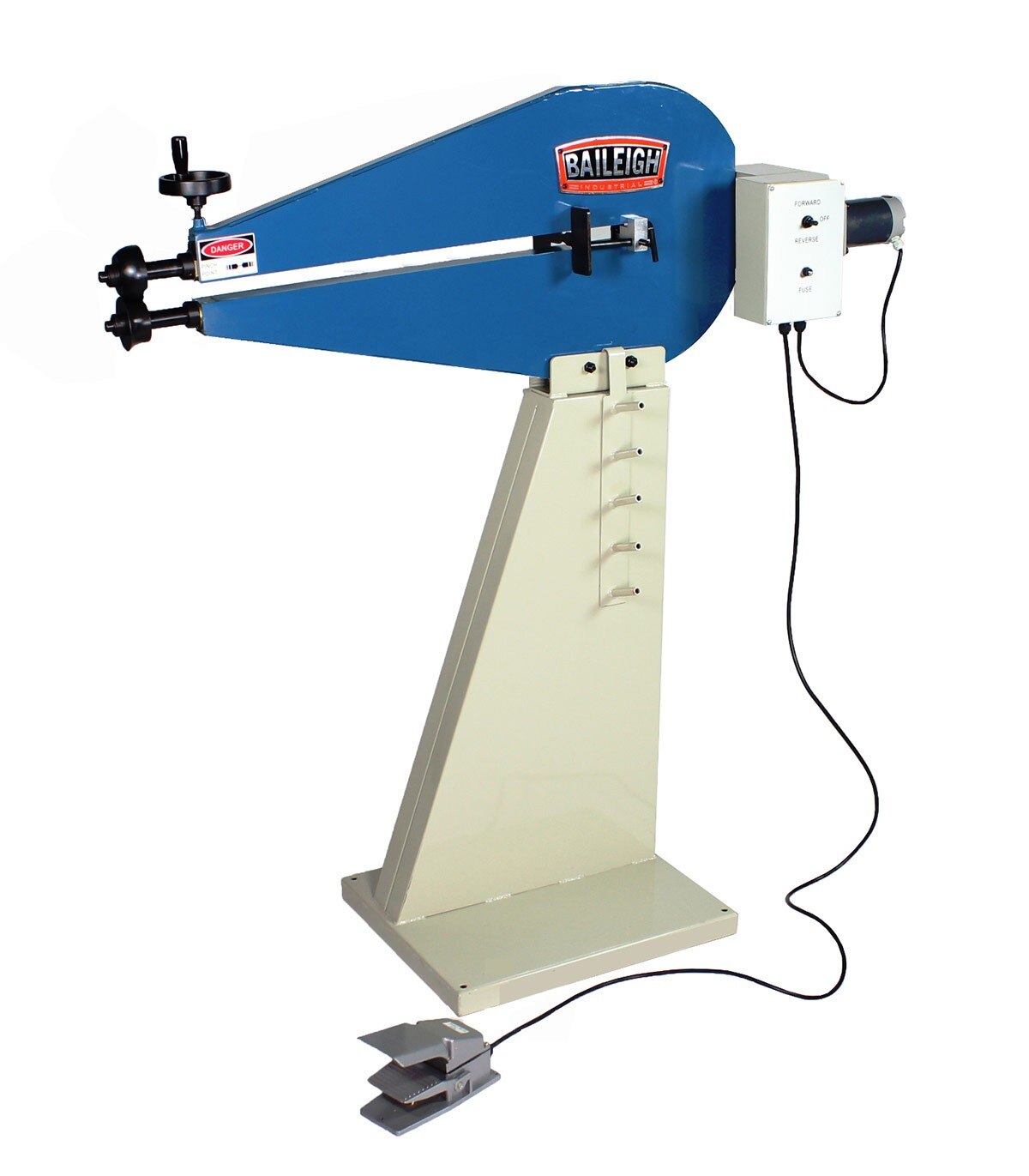

Built with foot pedal controls, this 16 gauge electric bead roller leaves your hands free to work the material. The industrial-grade motor, gearbox, and plate steel frame on the BR-18E-24 ensure accuracy. Recommended for: Fabricators or shops looking for a fast and easy way to make beads and profiles. Like most Baileigh Industrial bead rolls, the BR-18E-24 comes standard with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.
Baileigh Industrial 1000923 Includes
- (1) Bead Roller
Baileigh Industrial 1000923 Features
- 16 gauge mild steel and 14 gauge aluminum capacity.
- 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
- Runs on 110-volt single-phase power, so you can plug it in almost anywhere.
- Intuitive variable-speed foot pedal design: press harder to roll faster. Apply less force for slower, more careful forming.
- Up to 30 rpm feed rate, which amounts to 280” per minute.
- Rolls can run forward or in reverse. Just flip the switch to change direction.

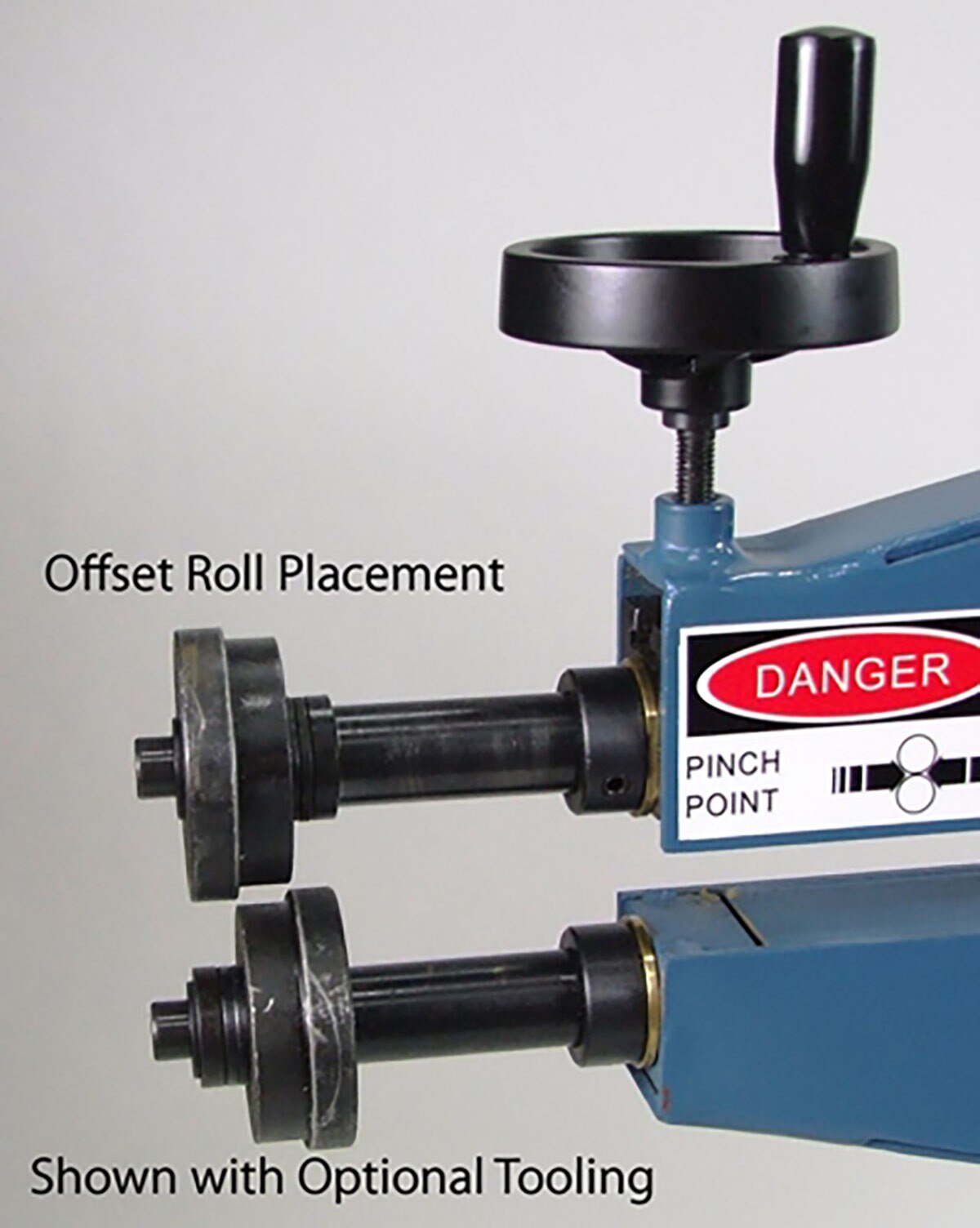

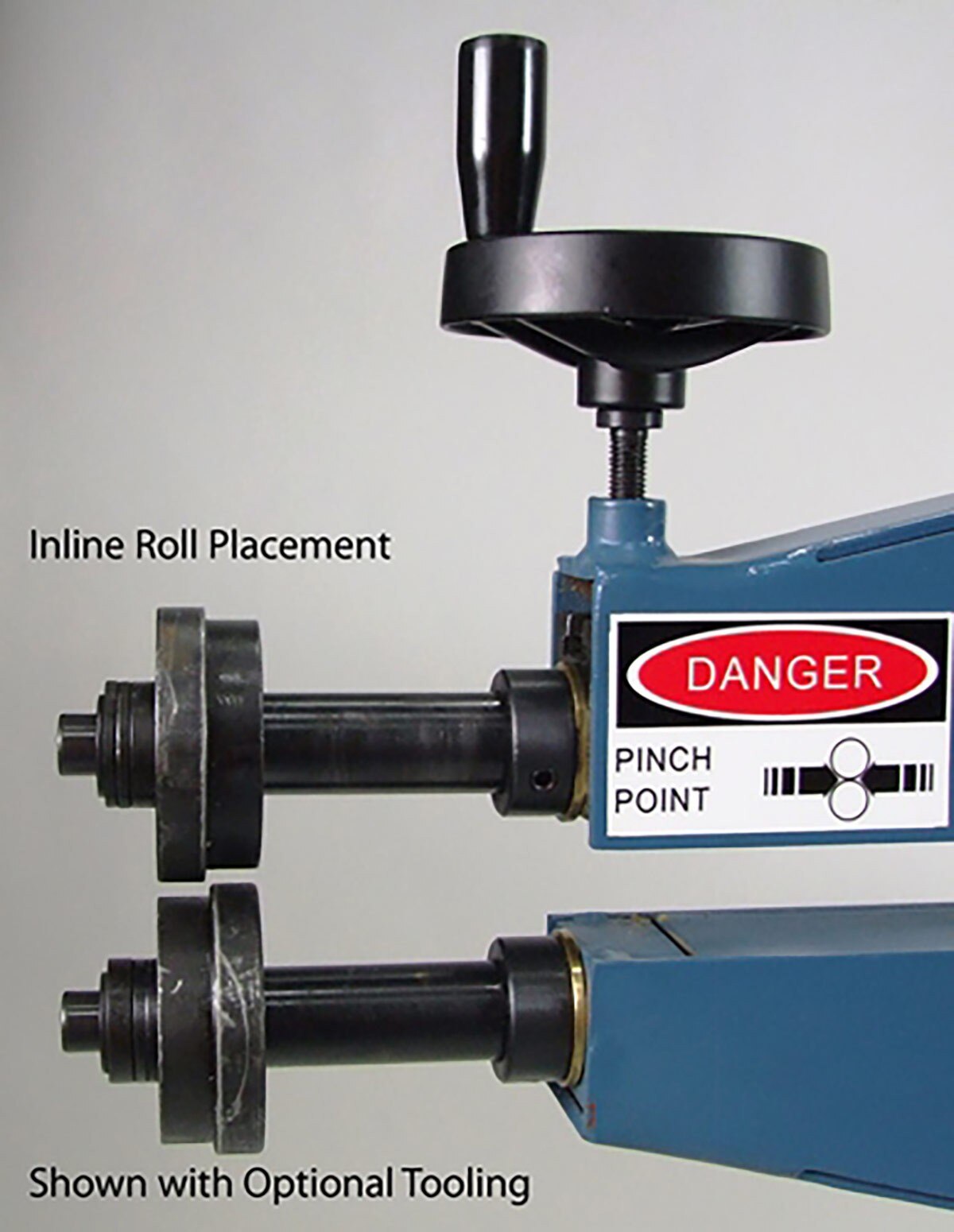

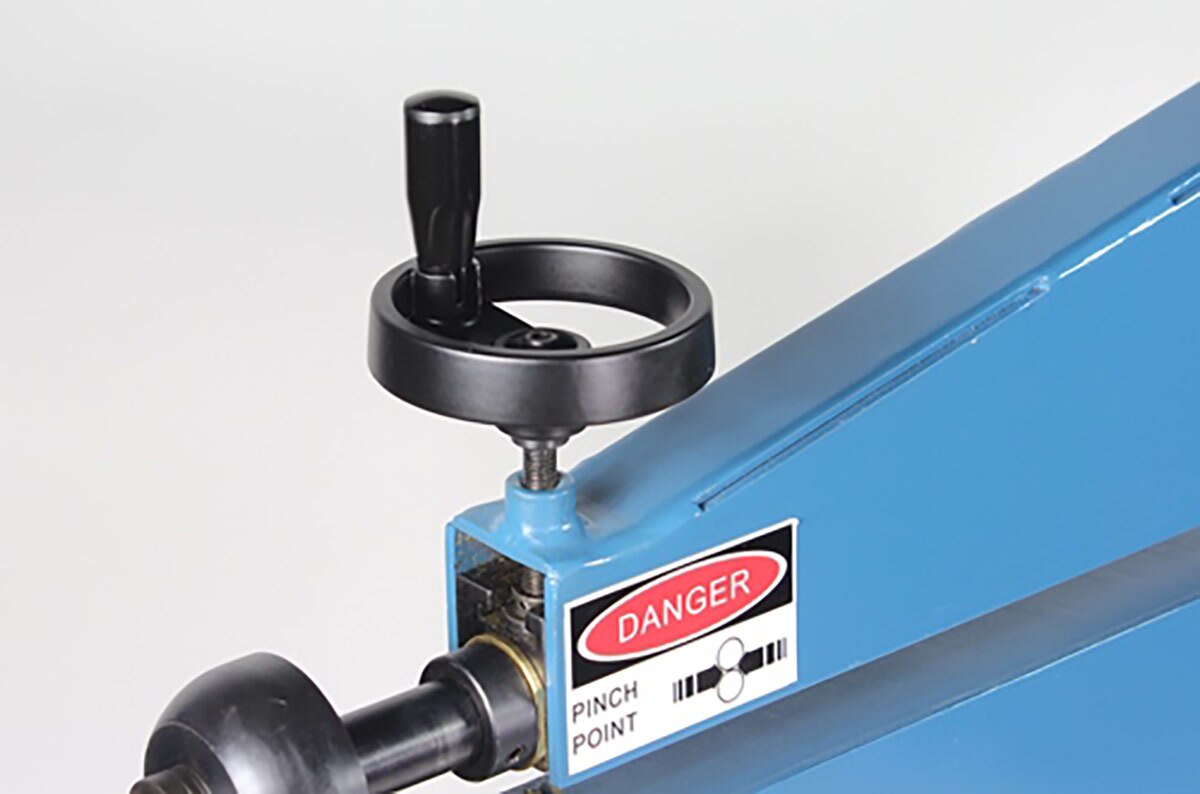

- Adjustable top roll lets you set your desired forming depth.

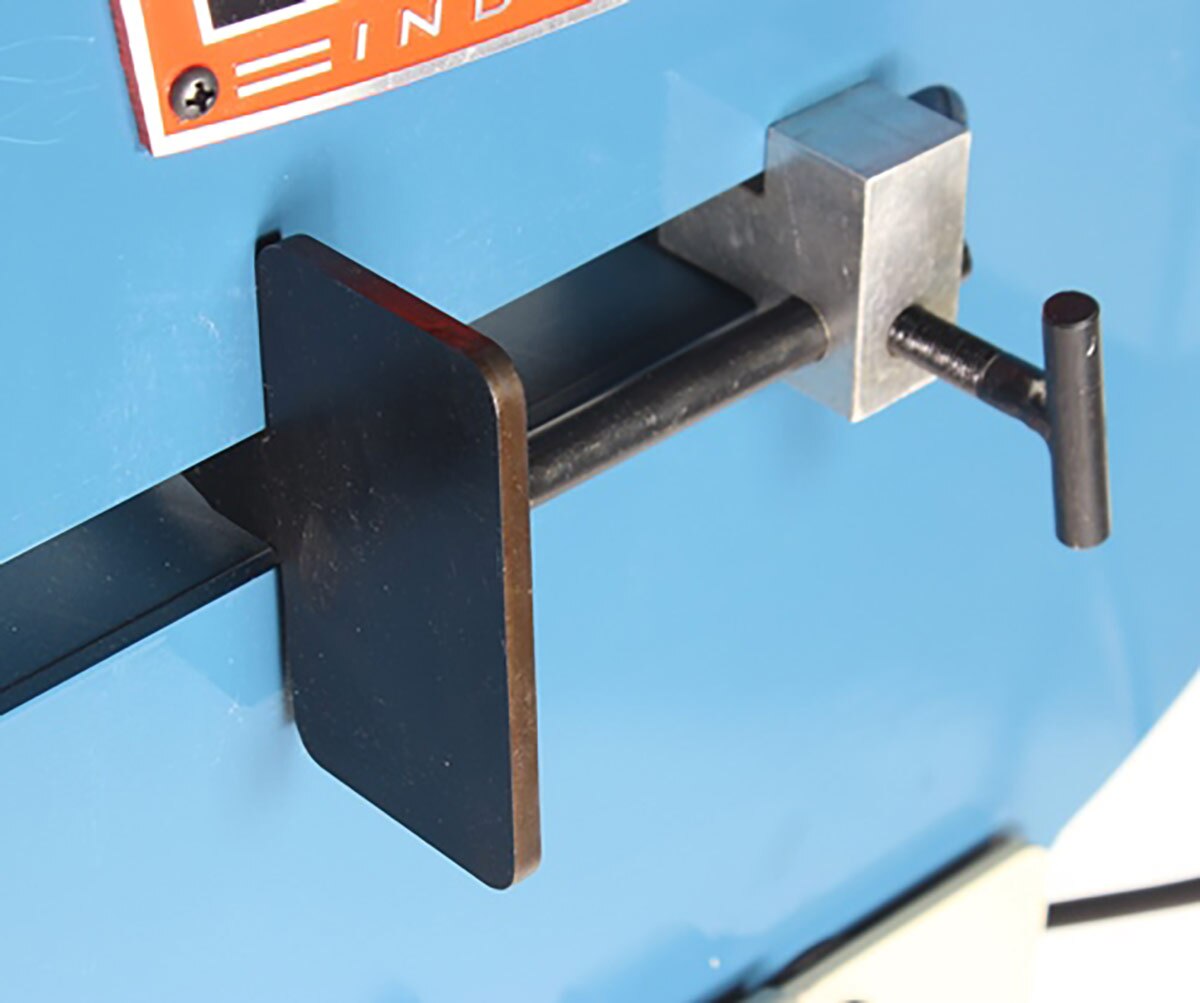

- Depth stop within the throat helps you make straight, repeatable beads.
- ¾” shaft diameter is compatible with most commercial roll sets.

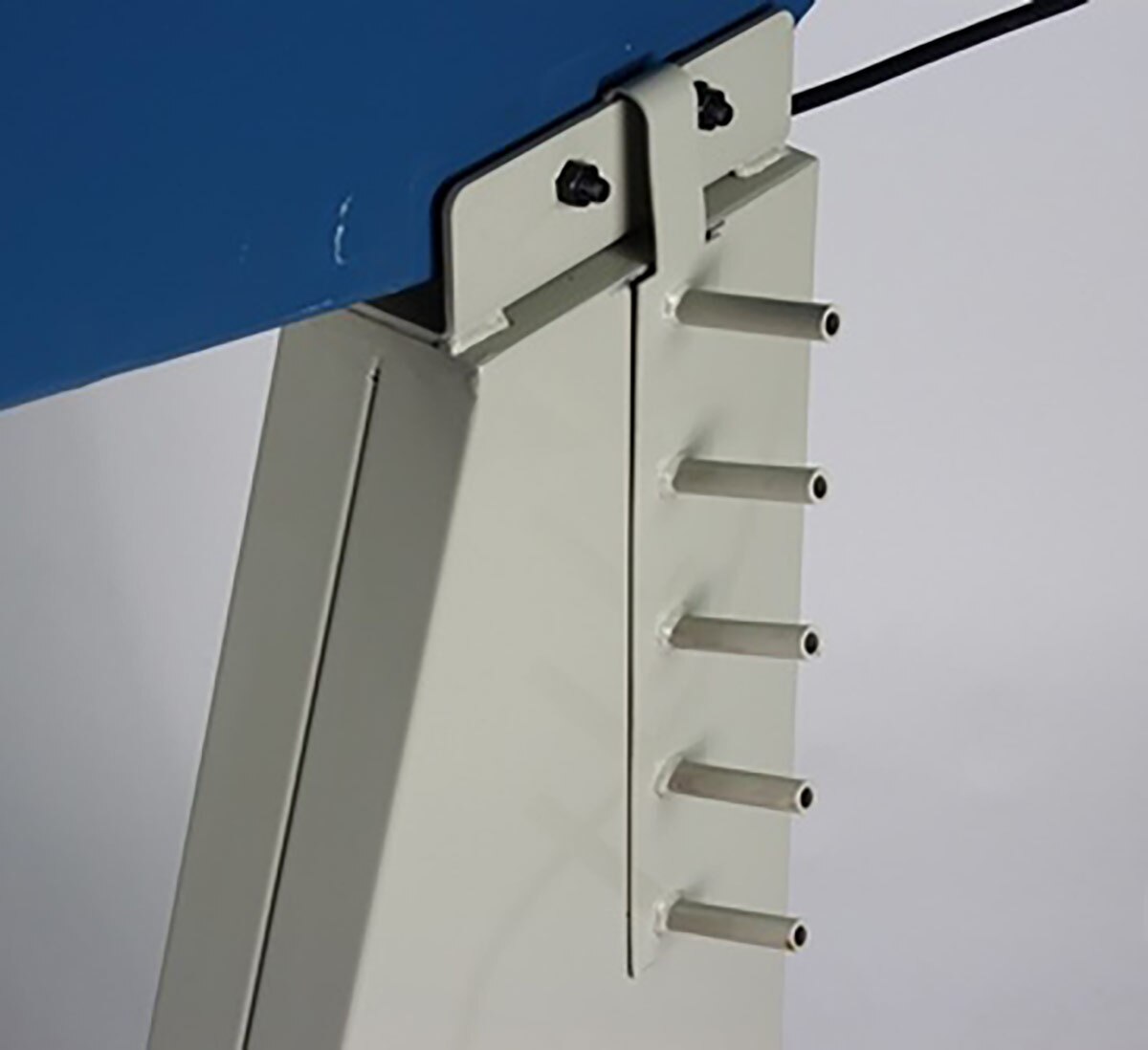

- Robust steel floor stand includes a rack for roll sets.
- All moving parts turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
- Fully welded plate steel frame keeps the bead roller rigid, so it makes quality profiles over many years of use.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1000923 Specifications
| Dimensions | 50" x 23" x 23" |
| Motor | 1/8 HP |
| Max. Thickness (Mild Steel) | 16 Gauge |
| Roll Holder | Included |
| Throat Depth | 24" |
| Stand | Included |
| Adjustable Depth Stop | Included |
| Power | 110V |
| Country of Origin | China |
