Baileigh Industrial 1000264 Description

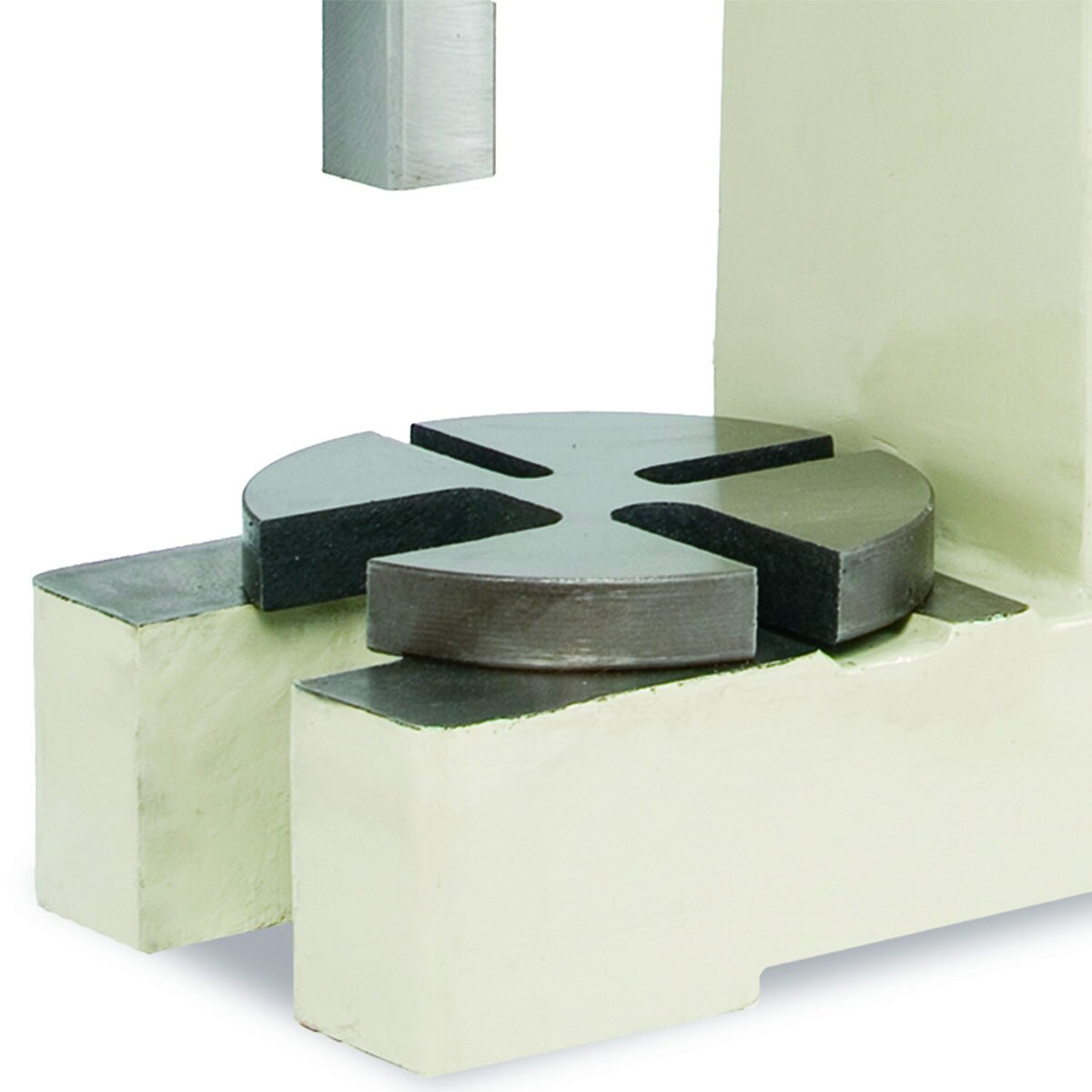

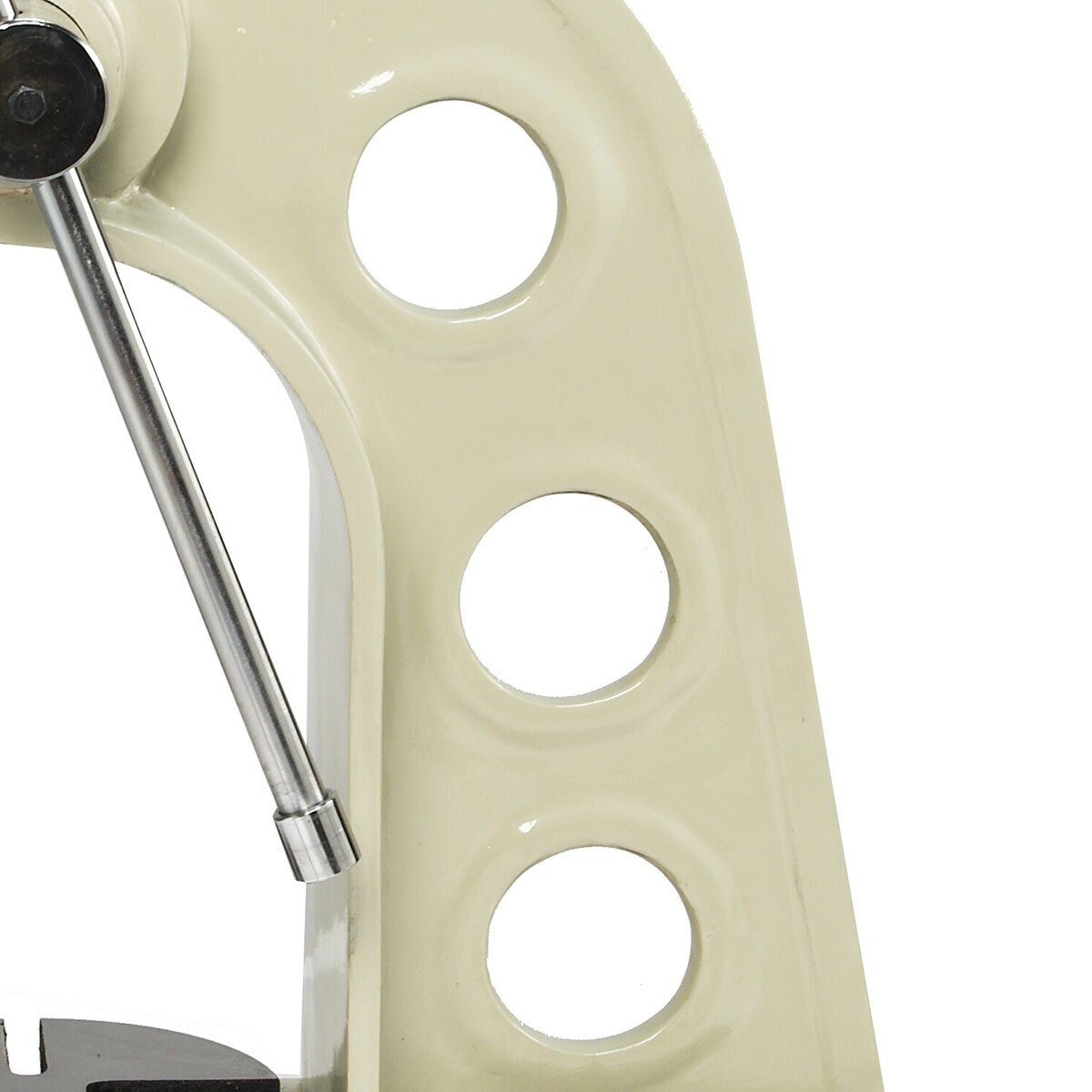

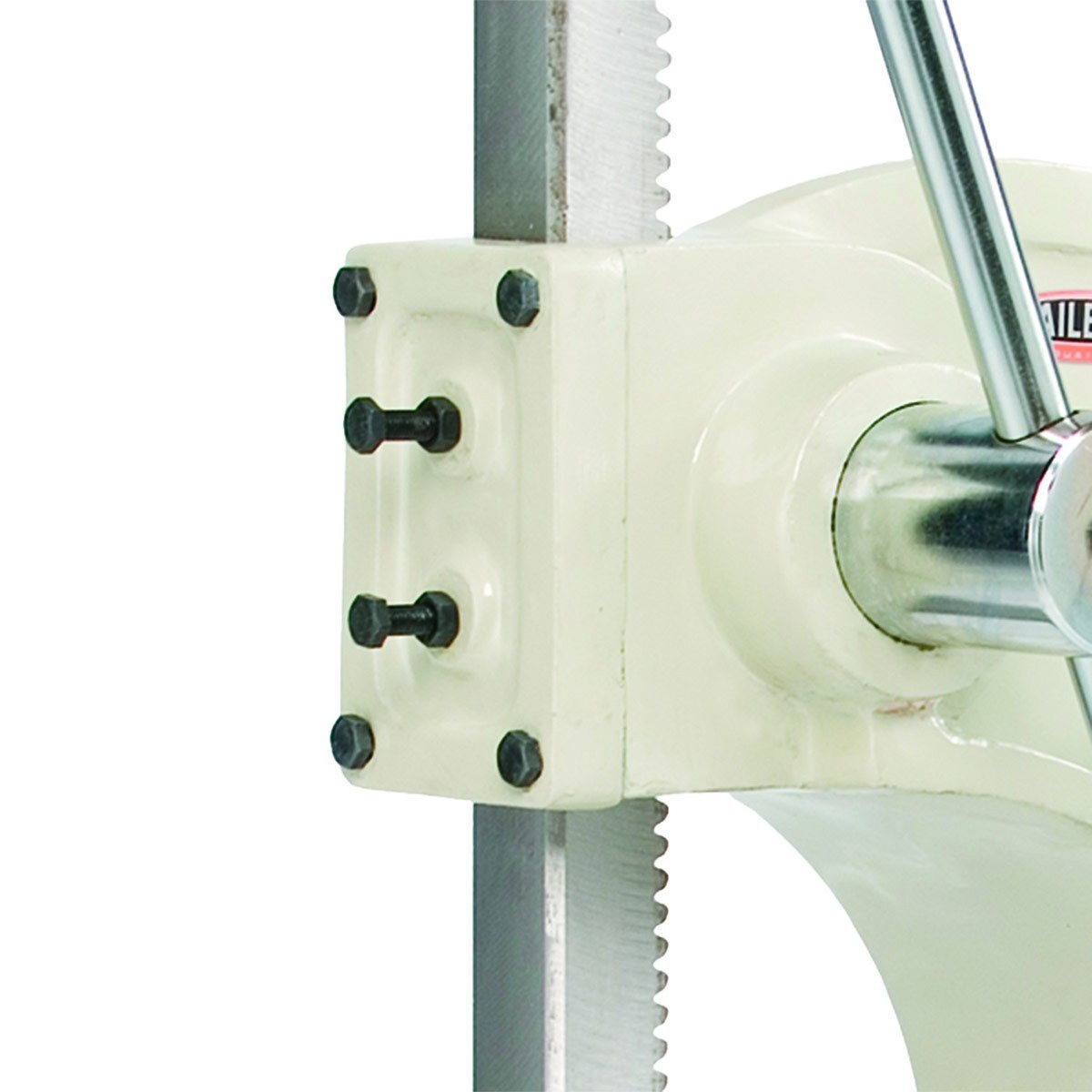

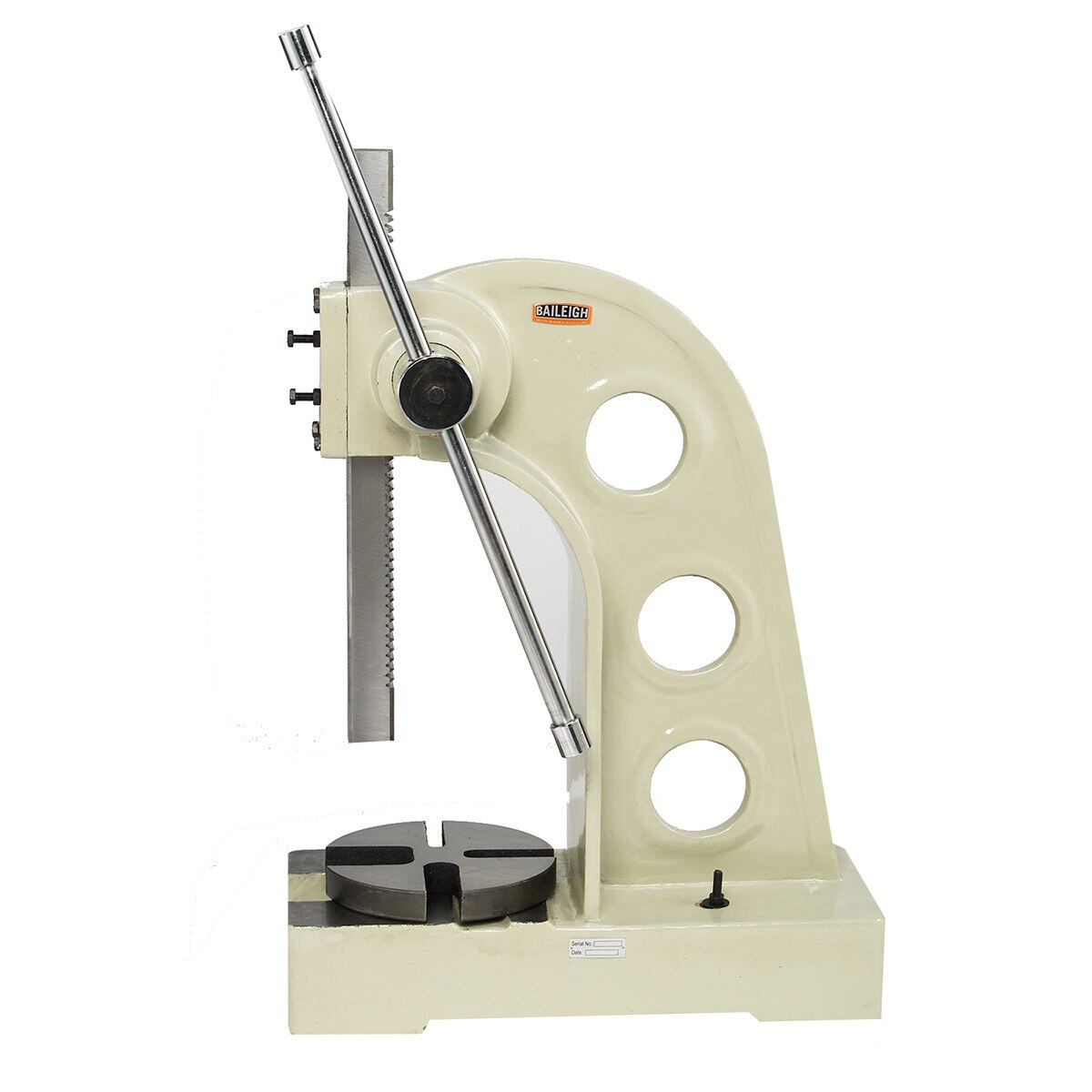

We engineered the AP-5 arbor press to produce up to 5.6 tons of force and last for decades. A machined cast iron housing framework gives this manual sheet metal-forming press its "muscle" and increases its durability. Has a throat depth of 8.89" and accepts material up to 17.5" high. Thick 2" x 2" case-hardened ram transfers pressure without flex for maximum accuracy. Adjustable ram cap allows for gap adjustment of ram. 31" adjustable, single-leverage handle multiplies your force to produce strain-free pressure. Sturdy 2.375" pivot shaft supports smooth, powerful ram movement. Includes a durable 4-position bottom die plate to secure various broach sizes. You can remove the bottom plate to press items directly on the AP-5's framework. Can be pedestal- or bench-mounted. Typically kept in stock for immediate shipment. The AP-5 is covered by a 1-year warranty and lifetime technical support. Recommended for: Pressing bearings and bushings or broaching keyways in any fabrication or machine shop.
