Description
Baileigh Industrial 1006835 Description
The R-H45 hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs. Heavy steel construction ensures that the R-H45 will deliver accurate bends at maximum capacity for years.
Baileigh Industrial 1006835 Includes
- (1) Hydraulic Roll Bender
Baileigh Industrial 1006835 Features
- Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
- Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

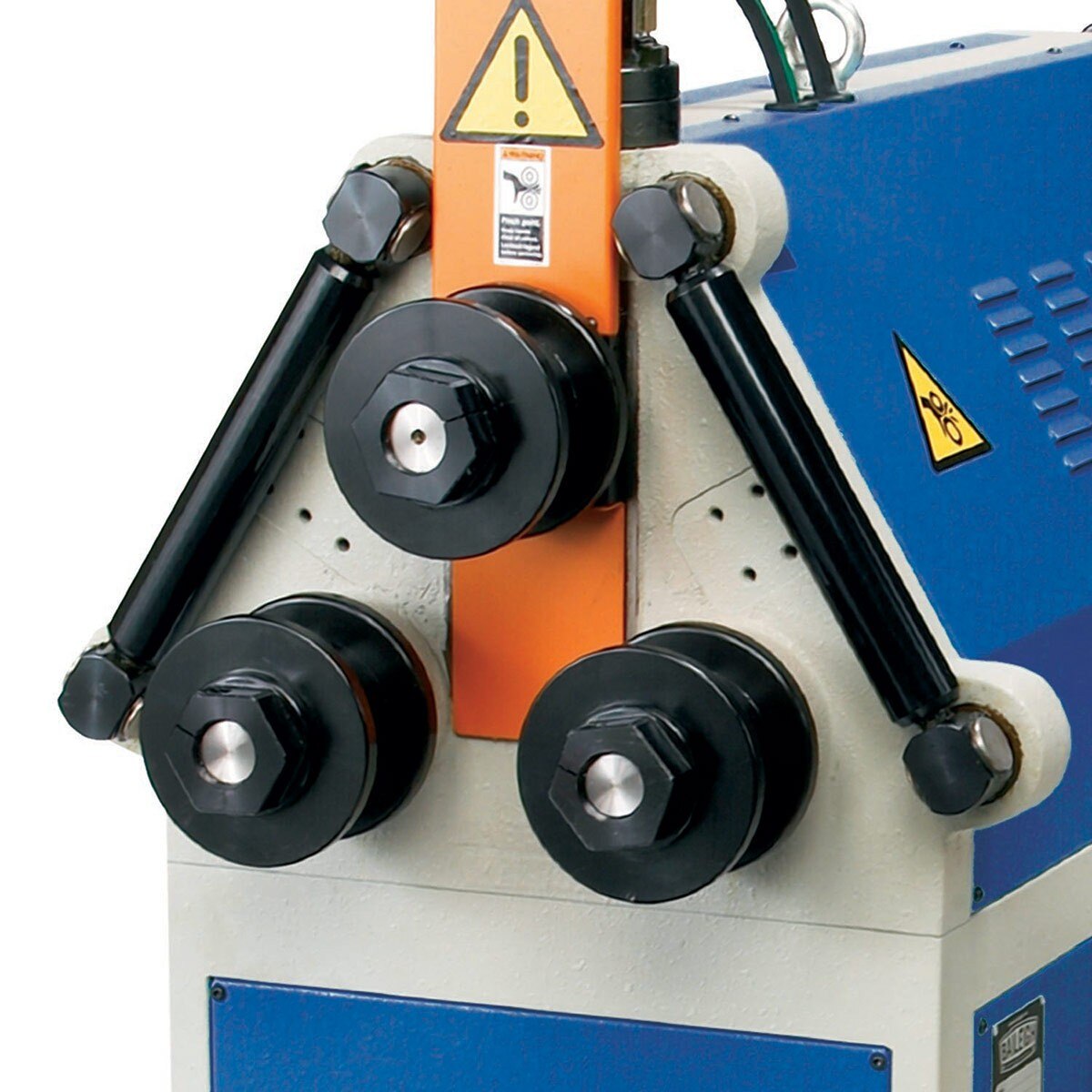

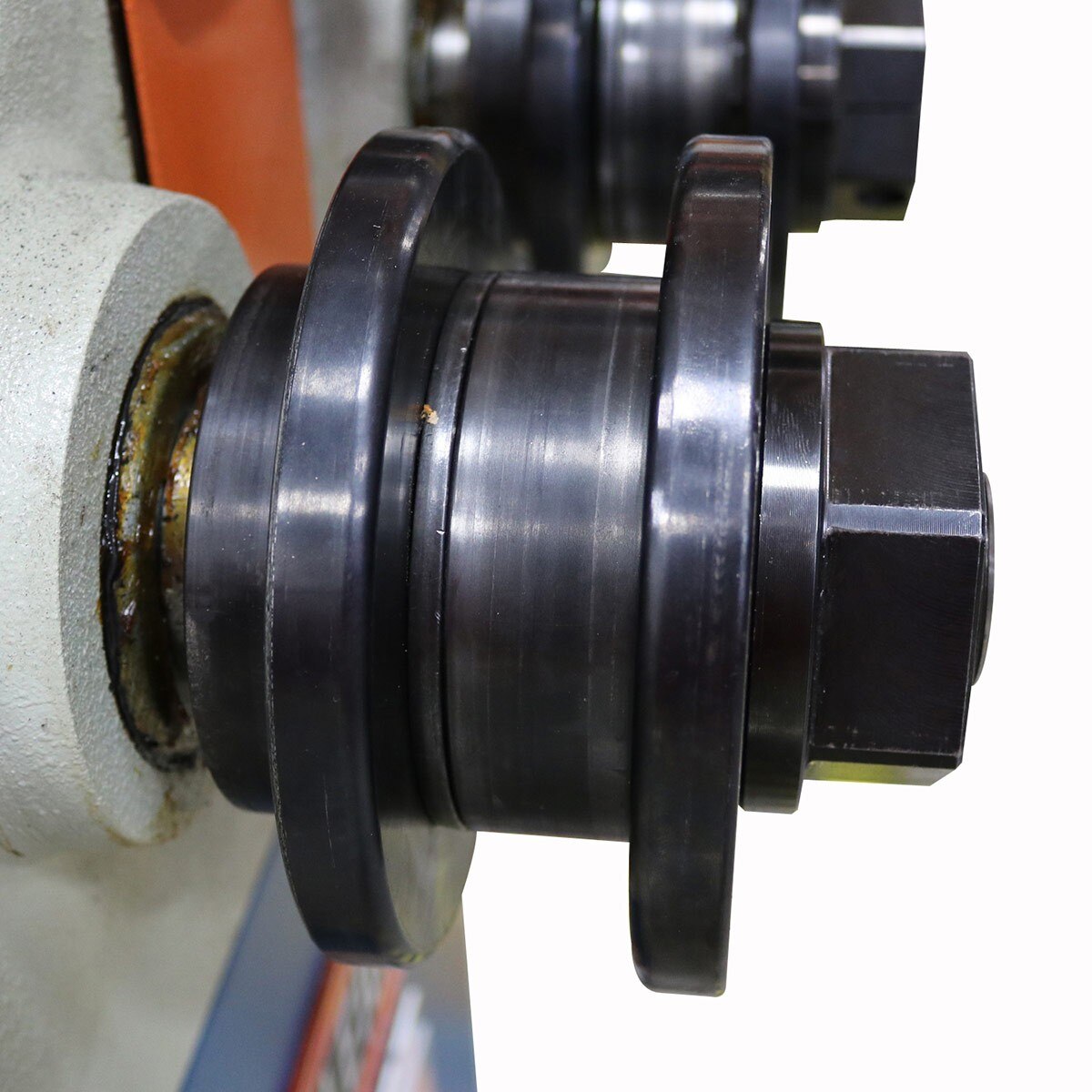

- All 3 rolls turn on industrial motor and transmission.

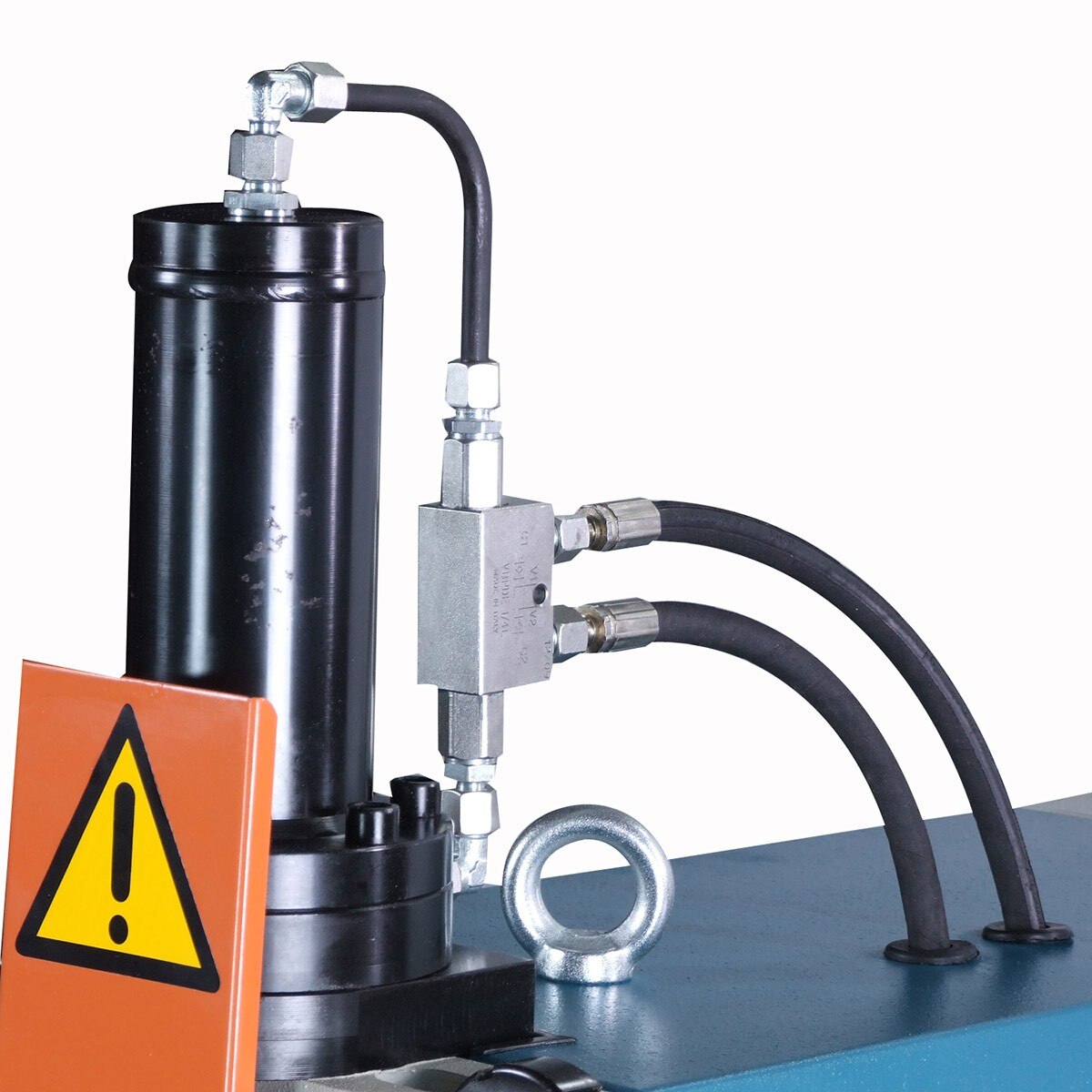

- Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

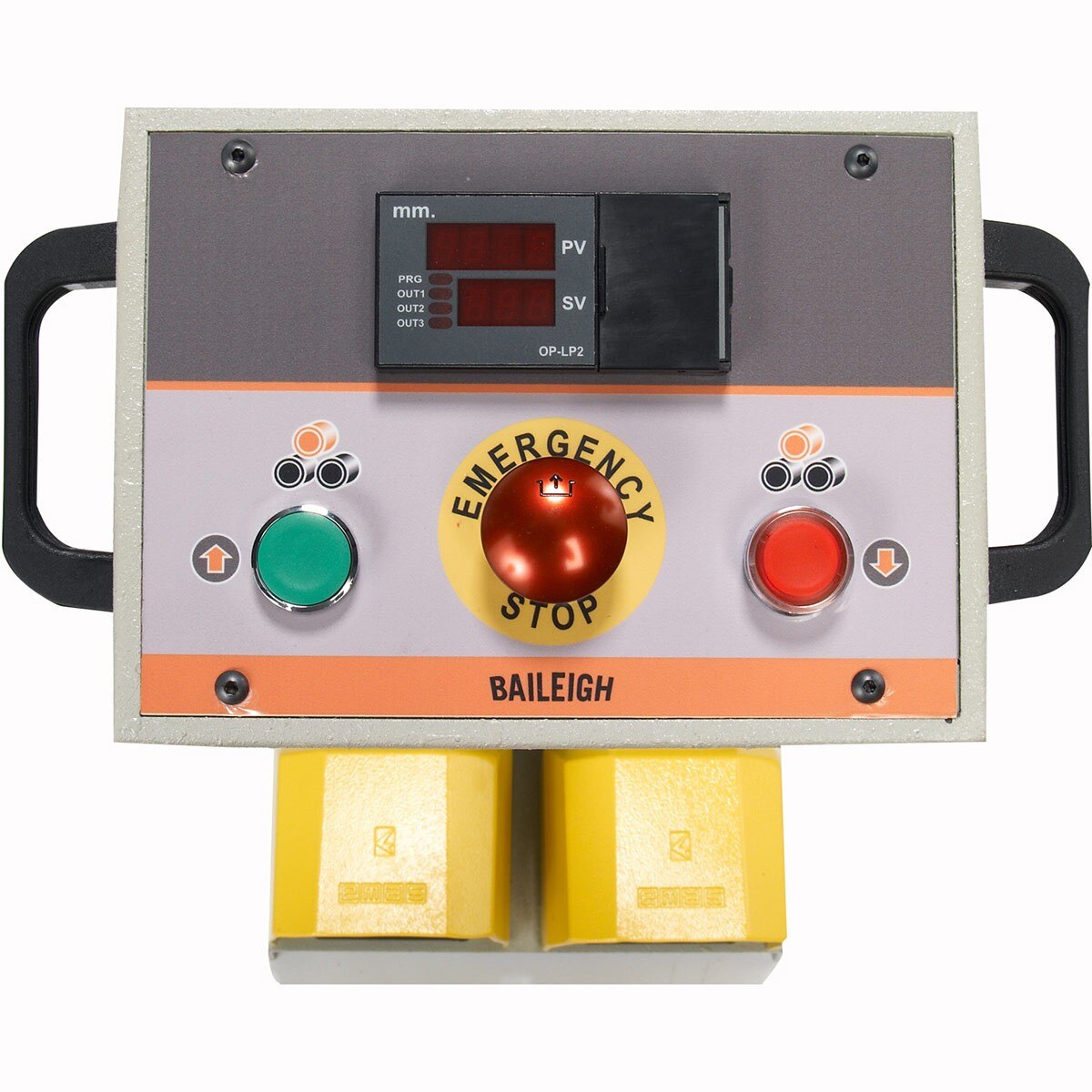

- Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
- Siemens inverter drive enables soft start-ups to prolong motor life.
- Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
- You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
- Fully-welded steel plate frame adds strength to the machine and minimizes flex.
- Backed by a 1-year parts warranty
Baileigh Industrial 1006835 Specifications
| Roll Adjustment | Hydraulic |
| Pipe Capacity Size | 2" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 2.75" (.083") / Min. Dia. |
| Square Tube Capacity Size | 2" (.120") / Min. Dia. |
| Solid Round Capacity Size | 1.5" / Min. Dia. 28" |
| Flat Bar Easy Way Size | 4" (.75") / Min. Dia. 28" |
| Flat Bar Hard Way Size | 3.25" (.375")/ Min. Dia. |
| Angle Iron Capacity Size | 2" (.250")/ Min. Dia. |
| Shaft Diameter | 1.772" |
| Shaft Center Distance Lower Rolls | 9.562" |
