Baileigh Industrial 1006637 Features

• Runs on 110-volt power and will work at almost any fabrication site in North America.
• 2’ x 2’ (610 x 610mm) cutting area.
• Comes fully assembled with correct alignment. No need to spend hours building.
• Most other companies’ plasma tables come in 5 or 6 boxes and cost about as much to ship as Baileigh’s larger single box shipment.
• Includes user-friendly programming software (BobCAD-Cam Express Design Software)

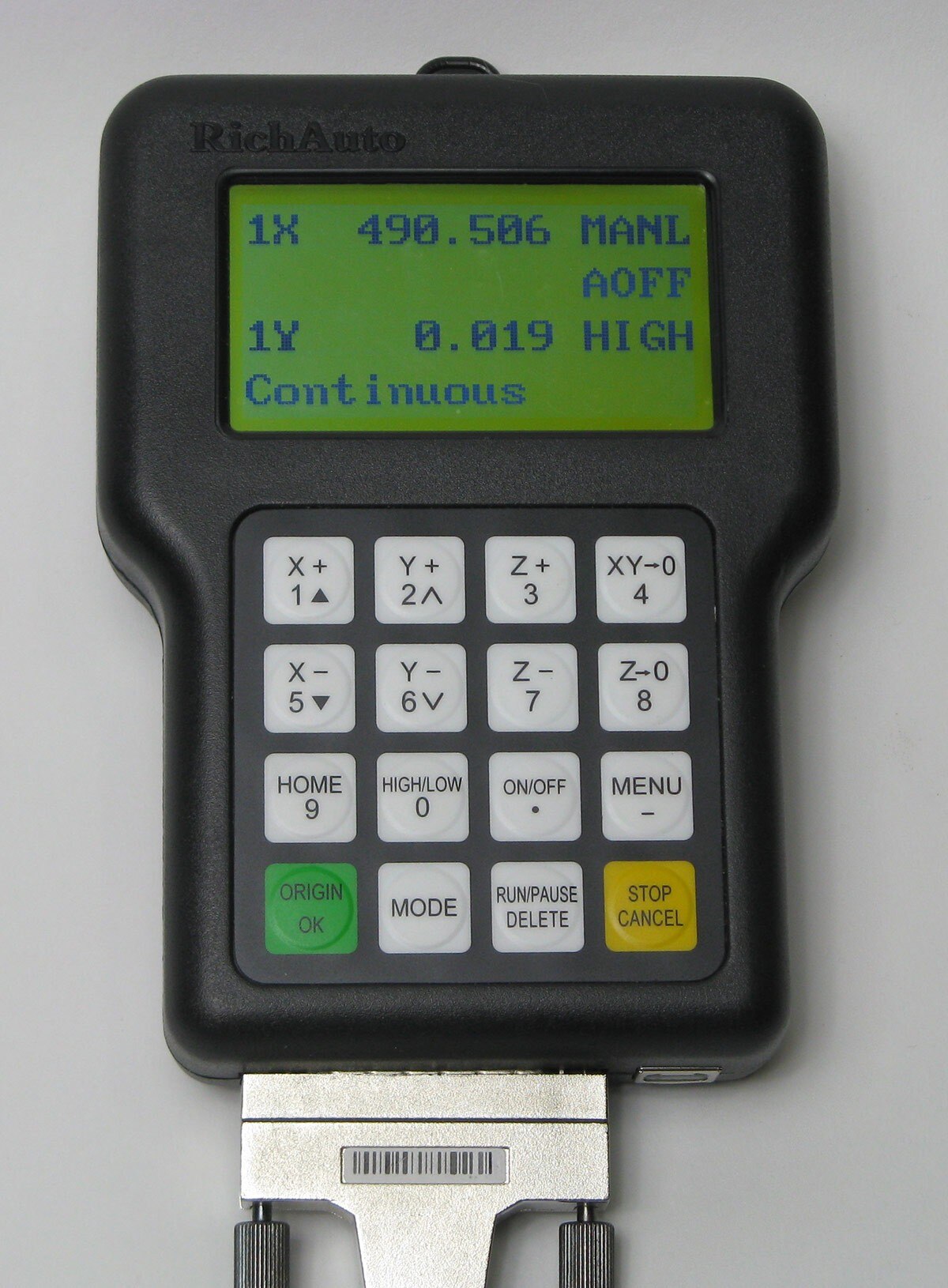

• You can control the torch using the handheld panel with a jog dial for the X and Y axes and program start and stop buttons.
• Durable, high-quality stepper motors drive the X axis (single drive) and Y axis (dual drive).
• All motor controllers and electronics are enclosed. No loose wires to get in your way.

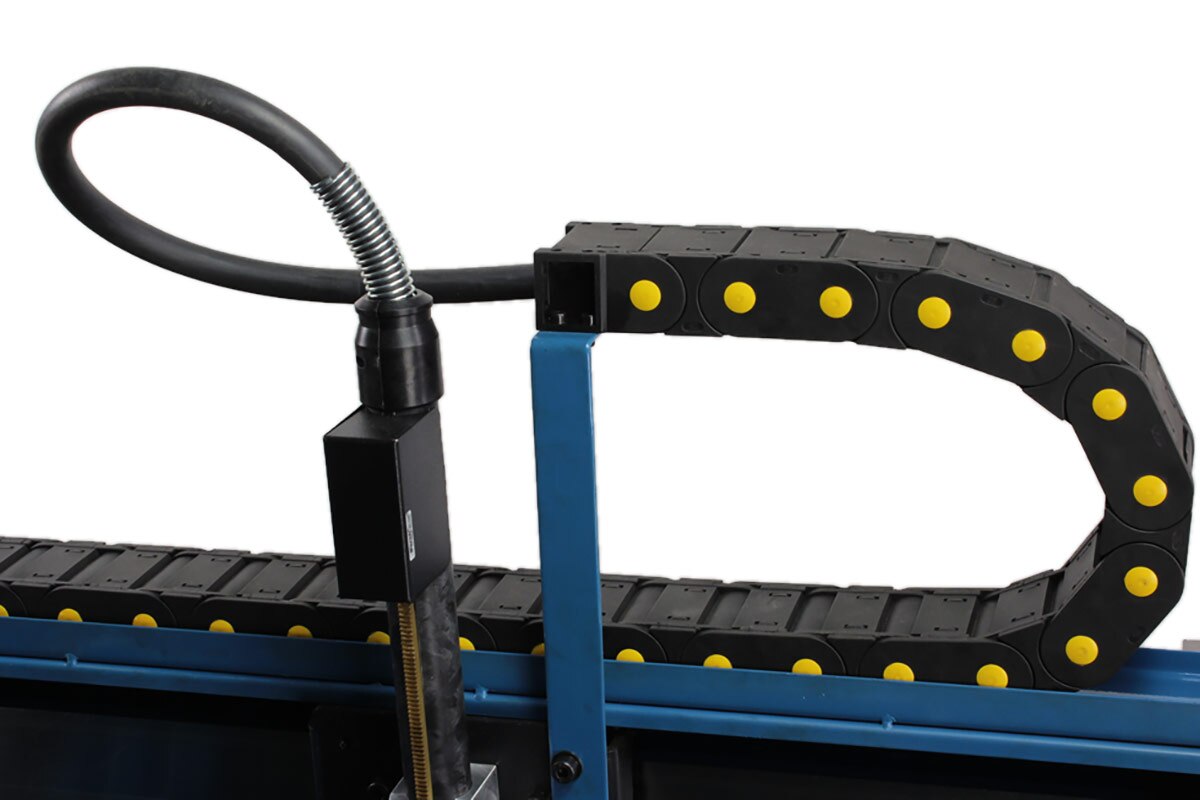

• Industrial cable track on the X axis ensures smooth cutting movement.

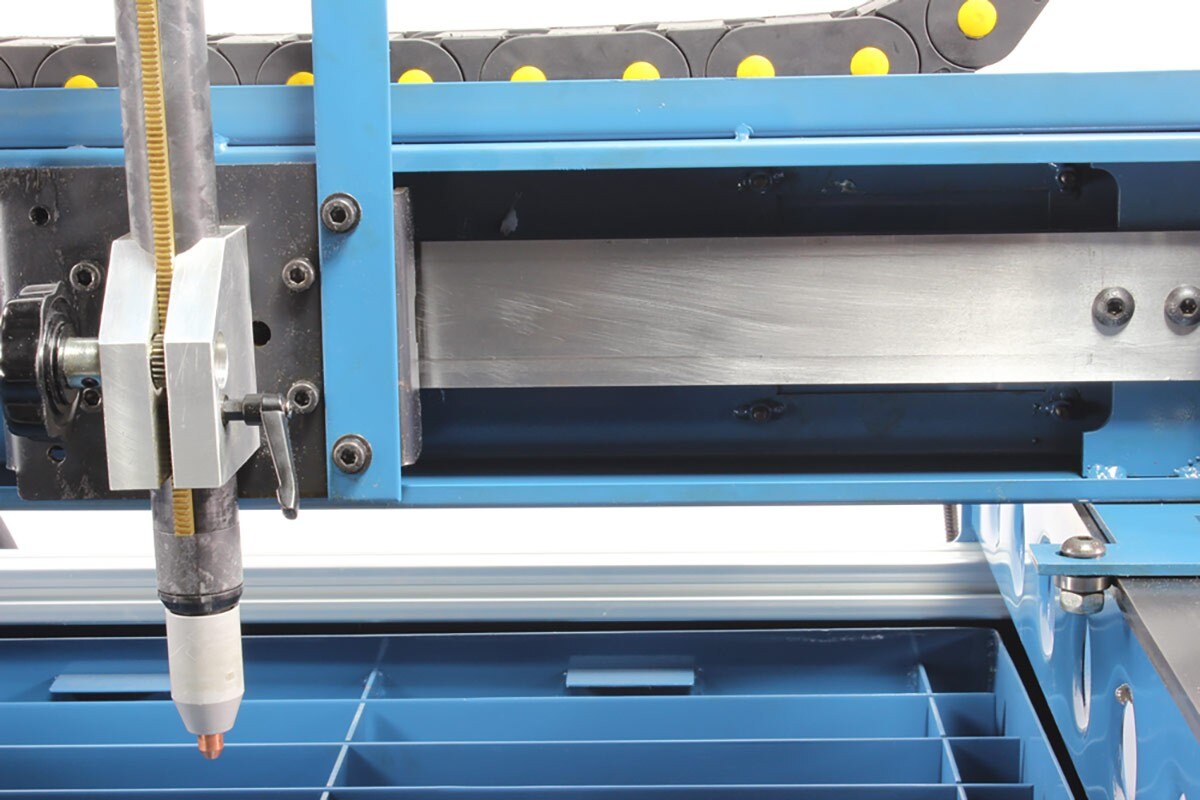

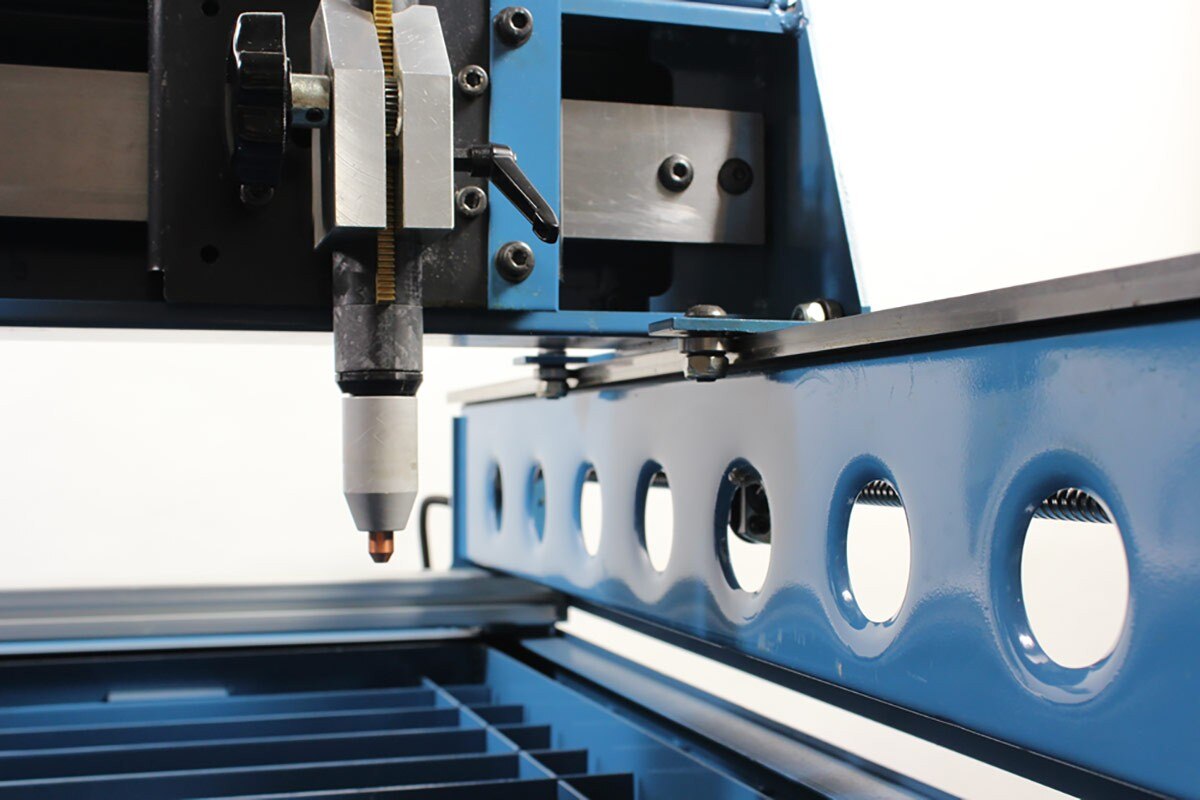

• 2 different torch-holders to accept both automated torches and handheld torches.

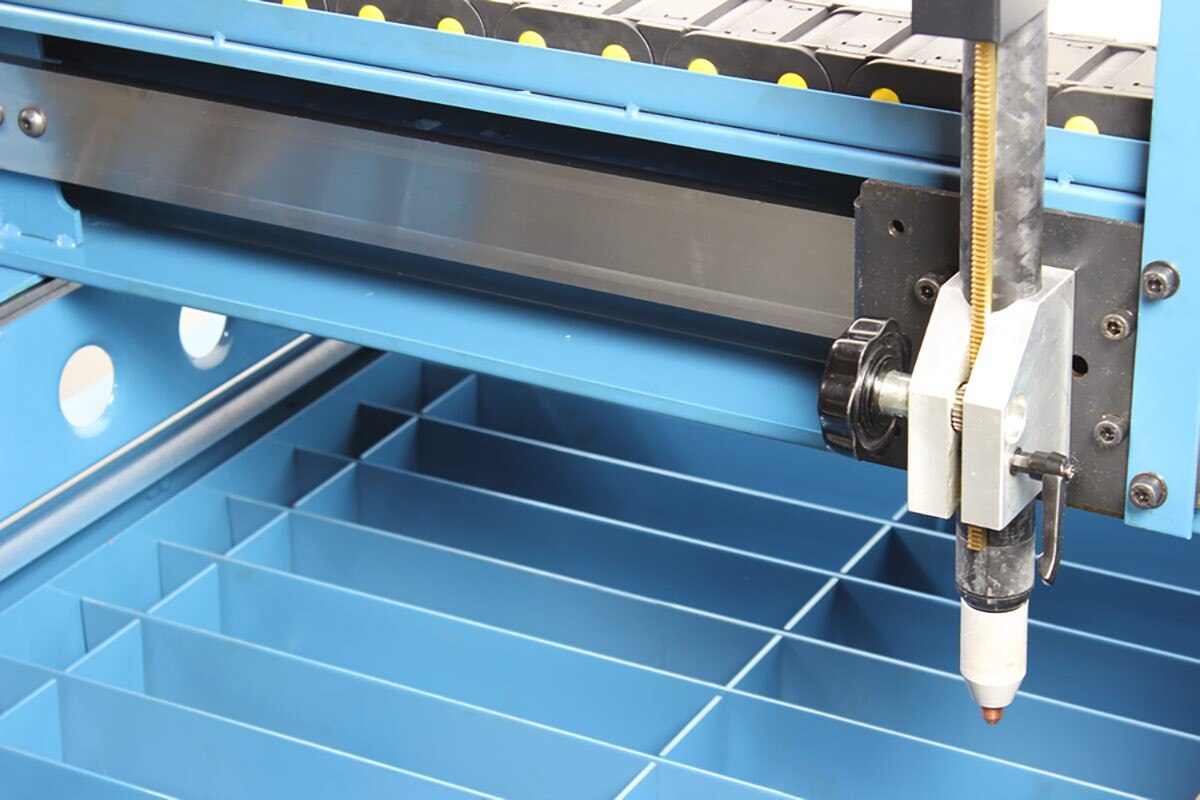

• Pre-cut flat bar grates support the material.
• Fully-welded steel frame will stay square for accurate cutting. By contrast, many competitors’ aluminum tables will warp due to heat over time.
• Small footprint accommodates shops with limited space. You won’t find many competitors that make machines this compact.
• 5” caster wheels (2 stationary, 2 swiveling) let you move the table easily.
• Water bath with a ball valve drain collects dirt, debris, and smoke. It also keeps the table cool to prevent material from moving while being cut.
• Cabinet in the base with latched and hinged access doors.
• Covered by a 1-year parts warranty.
