Amprobe 4560570 Description

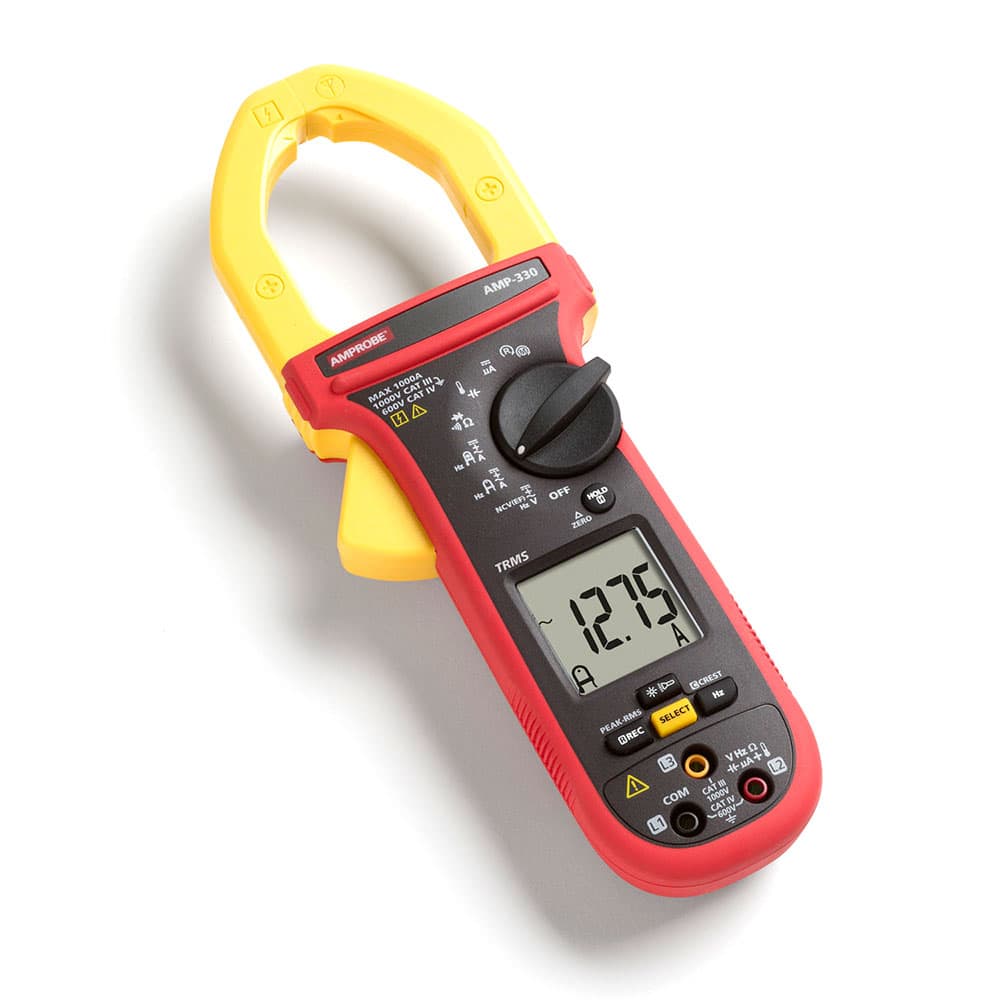

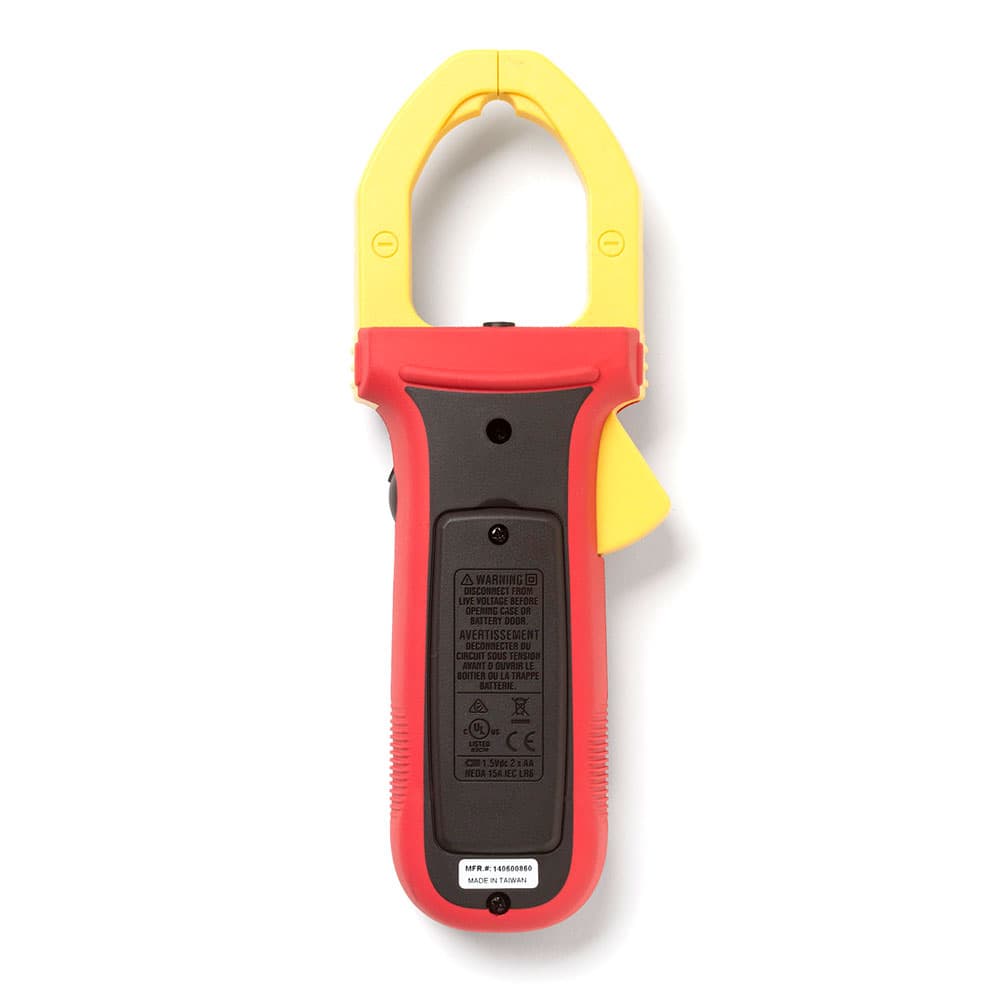

Amprobe’s AMP-330 True-RMS Clamp Meter offers a complete range of measuring functions for modern industrial environments, motor testing and HVAC applications. The AMP-330 features True-RMS sensing, low pass filters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, and a third input jack enables motor rotation and 3-phase sequence testing. GET ACCURATE MEASUREMENTS: The Amprobe AMP-330 provides accurate measurement of current, voltage and frequency on all electrical systems including distorted, non-sinusoidal signals (True-RMS function) and variable frequency drives (low-pass filter). 3-PHASE MOTOR AND PHASE ROTATION: Tests allow proper connection of a motor to a 3-phase system. Improperly connected motors will spin in a reverse direction, which may destroy the motor or equipment connected to it. INDUSTRIAL MOTOR MAINTENANCE: Inrush current measurement for motor start-up monitoring allows users to verify that the motor is receiving the required inrush current to support proper motor start.

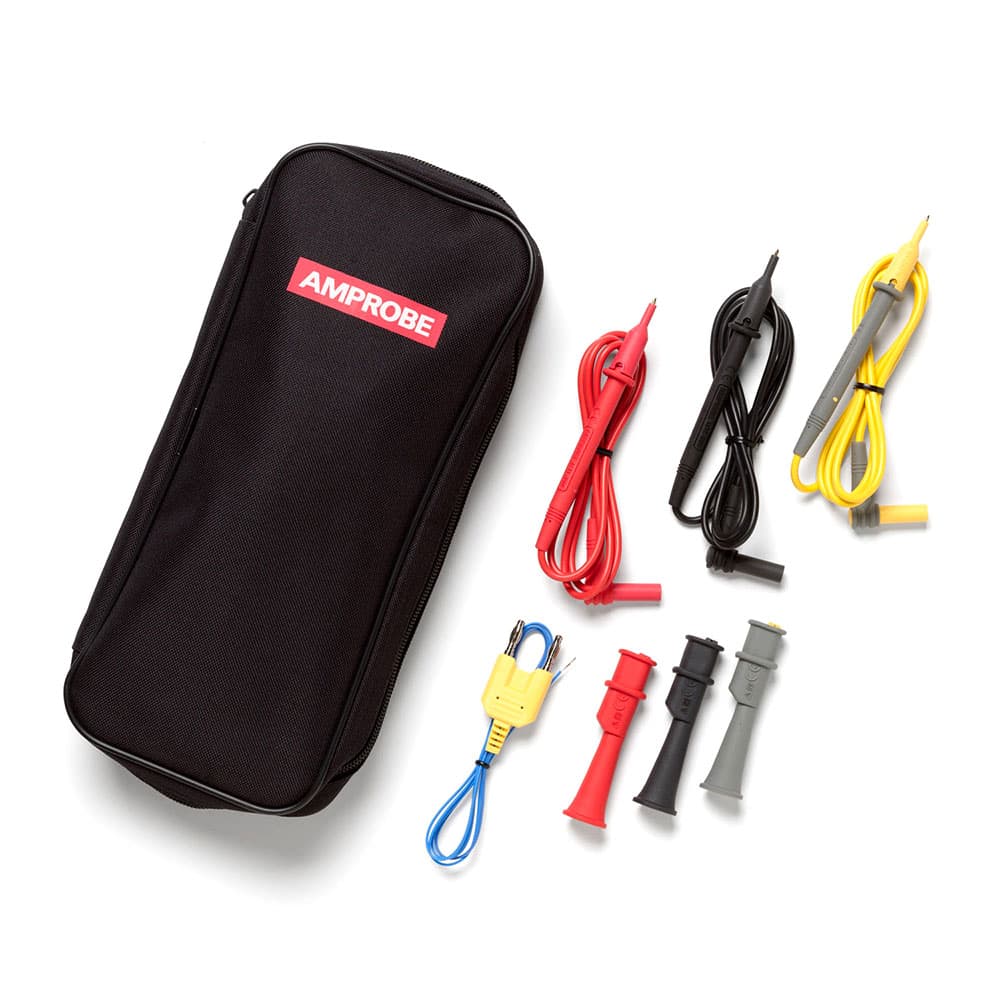

Amprobe 4560570 Includes
- Amprobe AMP-330 Clamp Meter
- Banana Plug Type-K Thermocouple
- Test Leads
- Alligator Clip Set
- 2 x AA Batteries (installed)
- User Manual
- Carrying Case
Amprobe 4560570 Features
- Measures AC/DC Current to 1000 A and AC/DC Voltage to 1000 V
- Measures temperature from -40° to 752°F, (-40° to 400°C)
- Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
- Measures capacitance, test diodes, and features a continuity beeper
- Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
- Monitors inrush current during motor start-up
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- CAT IV 600 V, CAT III 1000 V safety rated
- Boasts peak hold and work light
- Accommodates conductors up to 2.0 inches (51mm)
Amprobe 4560570 Specifications
| AC voltage (True-rms) | 0 to 1000.0 V |
| DC voltage | 0 to 600.0 V |
| AC+DC voltage | 0 to 1000.0 V |
| AC current | 0 to 600.0 A |
| DC current | 0 to 1000.0 A |
| AC+DC current | 0 to 1000.0 A |
| Precise low current AC | 0 to 60.00 A |
| Precise low current DC | 0 to 60.00 A |
| Micro amps | 0 to 2000 µa |
| Frequency | 5.00 to 999.9 Hz |
| Resistance | 0.0 to 60.00 k? |
| Capacitance | 0.0 to 2500 µF |
| Continuity beeper | ON ? 10 ? |
| Temperature (Type K thermocouple) | -40.0 to 752 °F, -40.0 to 400 °C |
| Non-contact voltage | 10 V to 1000 V AC (50 to 60 Hz) |
| Phase rotation indication | Rotation-R for main supply, Rotation-M for motors |
| Diode test | Yes |
| Jaw opening | 2.0 in (51 mm) |
| Safety rating | CAT IV 600V, CAT III 1000 V |
