Amprobe 4560543 Description

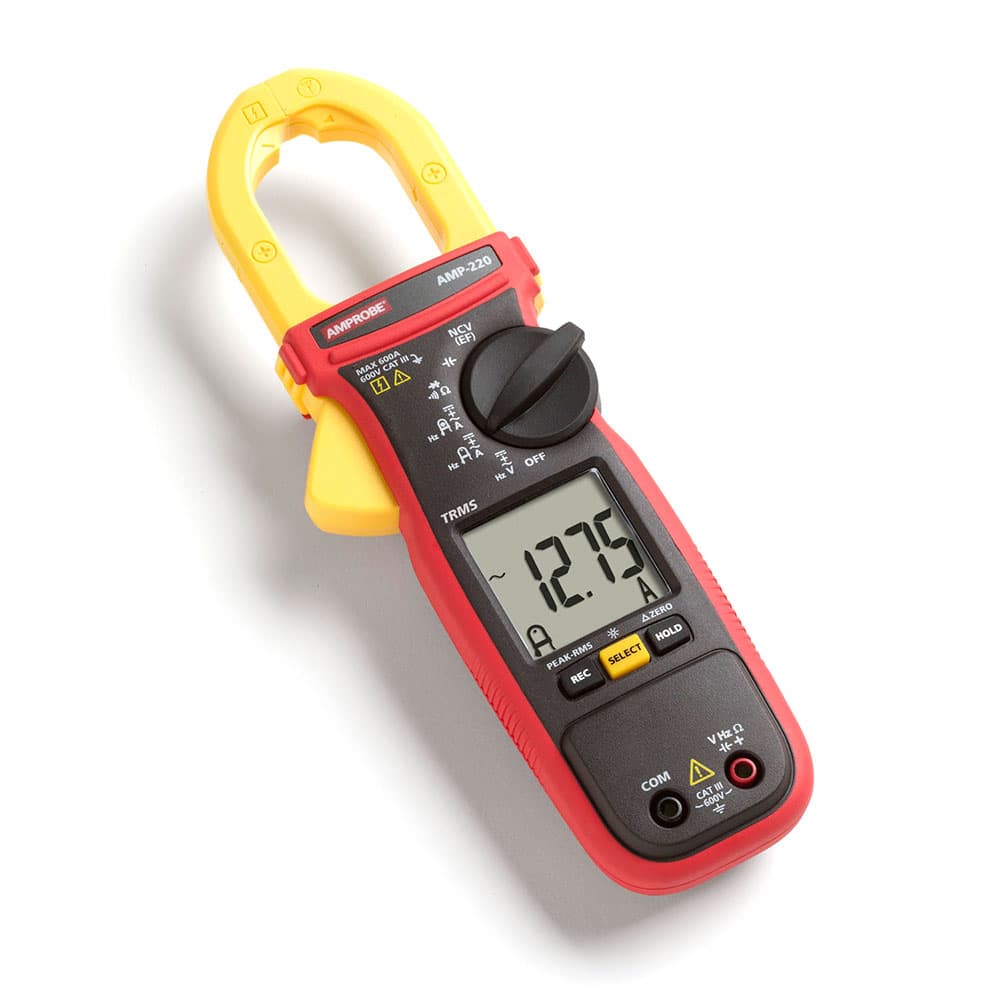

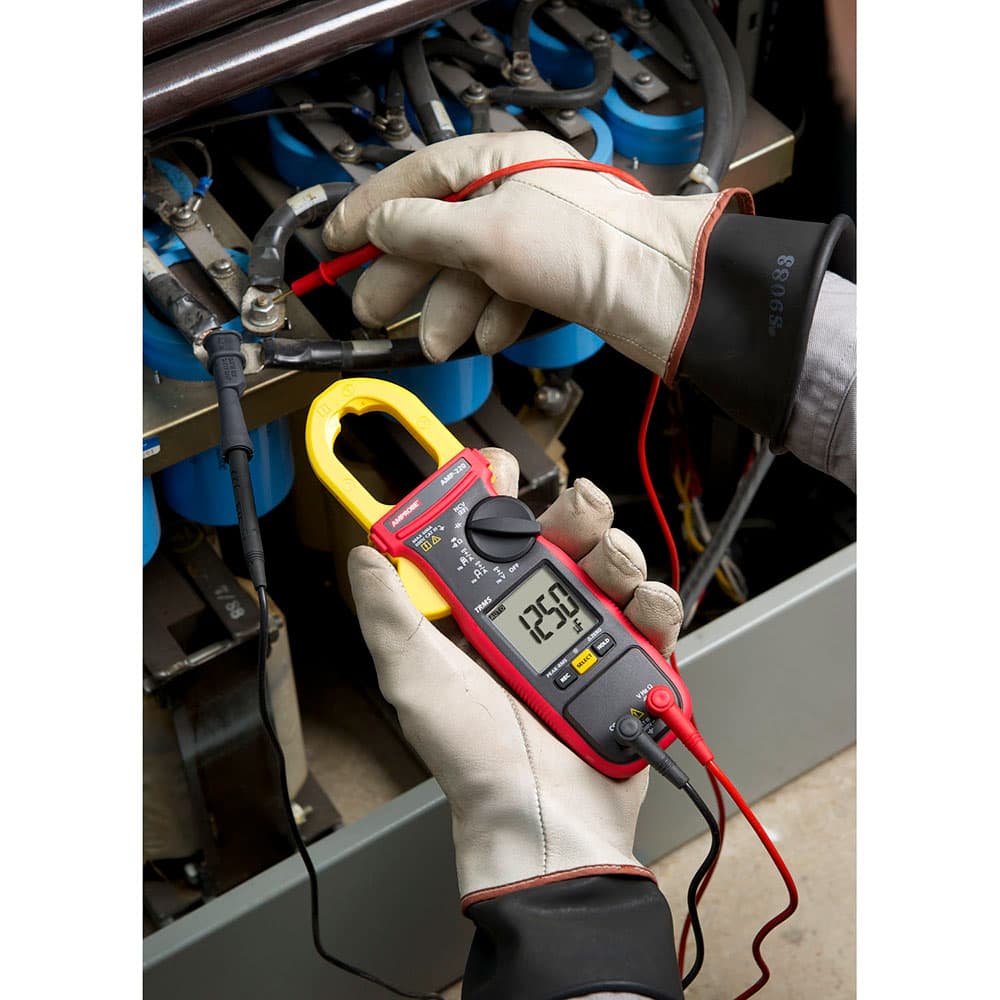

Amprobe’s AMP-220 600 A TRMS Clamp Meter offers a complete range of measuring functions for today’s modern electrical environments. Features include True-RMS sensing, low pass filters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. GET ACCURATE MEASUREMENTS: The Amprobe AMP-220 provides accurate measurement of current, voltage and frequency on all electrical systems including distorted, non-sinusoidal signals (True-RMS function) and variable frequency drives (low-pass filter). AMP-TIP FUNCTION: The Amp-Tip function can be used for precise low current measurement of small diameter wires down to 0.1 Amp to help with electrical system troubleshooting. ROTATION DETECTION: Low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). Without this feature, the meter would provide erroneous readings when measuring voltage and current.
Amprobe 4560543 Includes

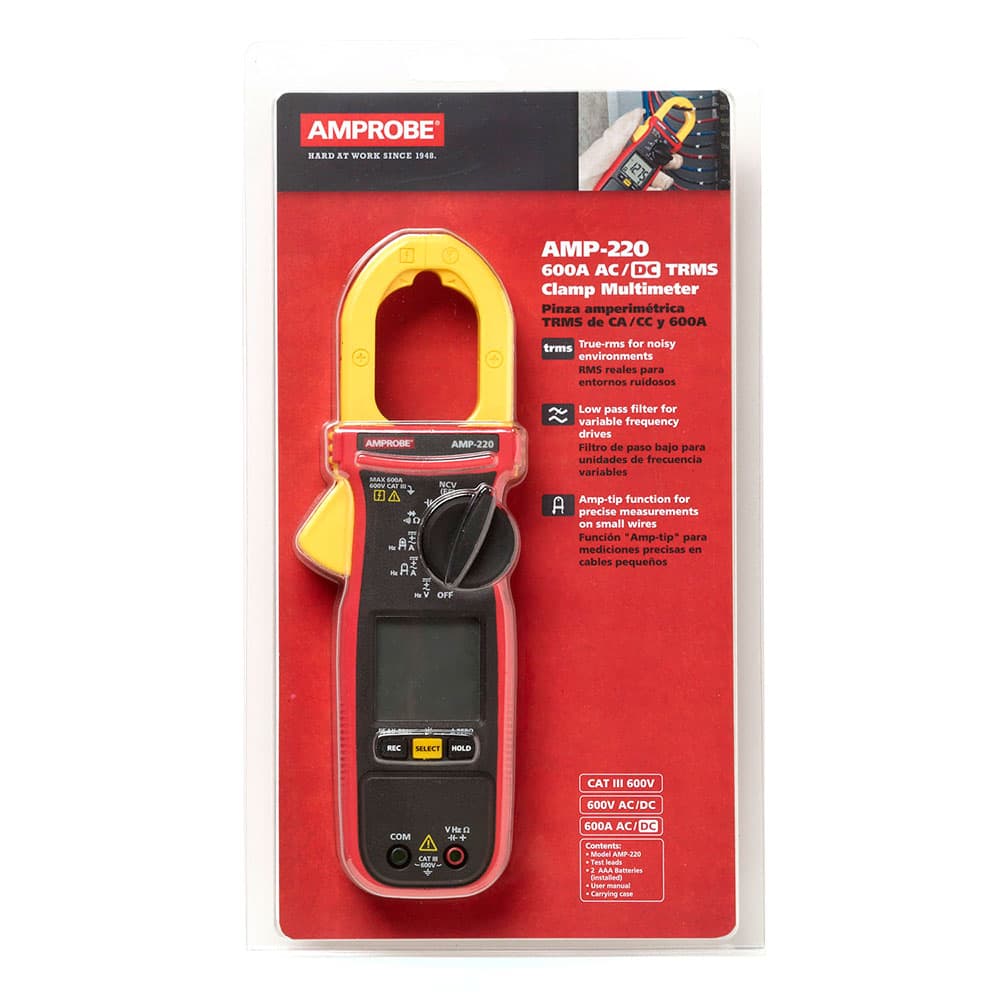

- Amprobe AMP-220 Clamp Meter

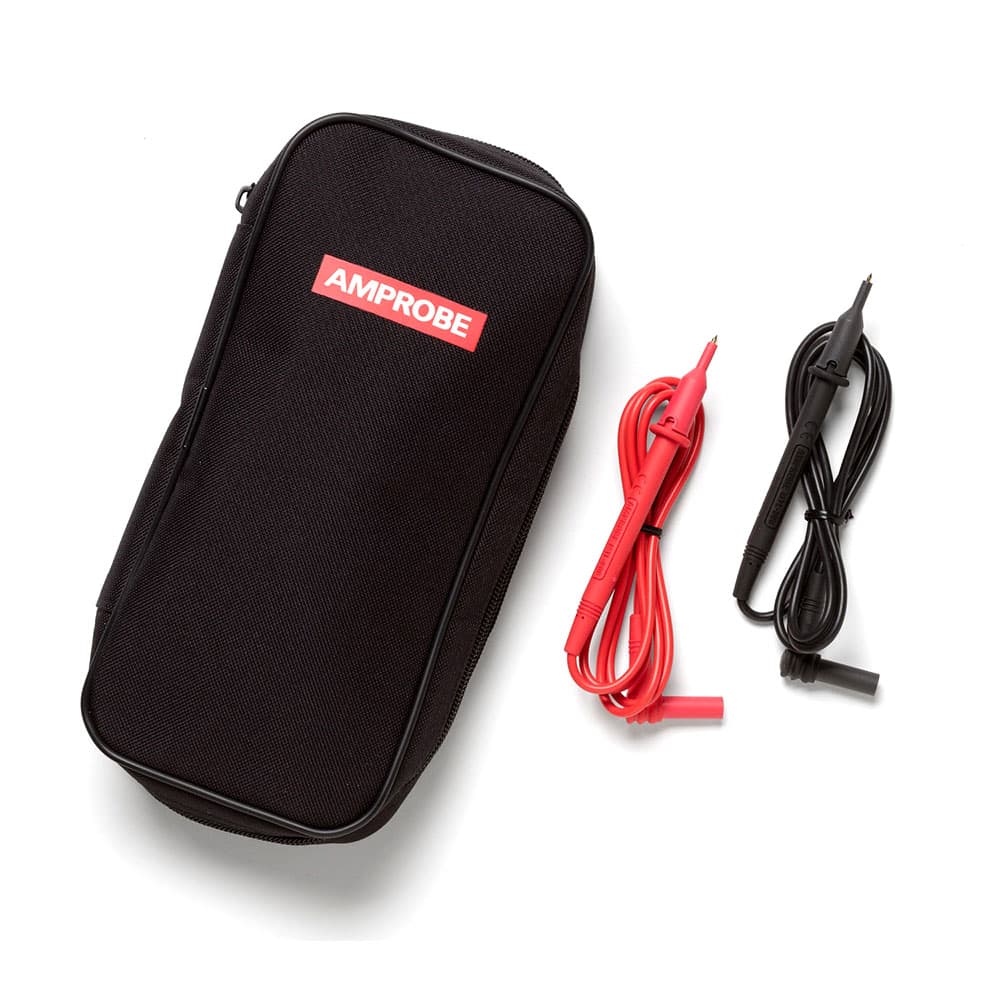

- Test Leads
- 2 x AAA Batteries (installed)
- User Manual
- Carrying Case
Amprobe 4560543 Features
- Measures AC Current to 600 A and AC/DC Voltage to 600 V
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Capacitance measurement, continuity beeper and diode test
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Offers data hold and relative zero for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- Accommodates conductors up to 1.37 in (35mm)
Amprobe 4560543 Specifications
| AC voltage (True-rms) Range | 0 to 600.0 V |
| DC voltage Range | 0 to 600.0 V |
| AC+DC voltage Range | 0 to 600.0 V |
| AC current Range | 0 to 600.0 A |
| DC current Range | 0 to 600.0 A |
| AC+DC current Range | 0 to 600.0 A |
| Precise low current AC Range | 0 to 60.00 A |
| Precise low current DC Range | 0 to 60.0 A |
| Frequency Range | 5.00 to 999.9 Hz |
| Resistance Range | 0.0 to 60.00 k? |
| Capacitance Range | 0.0 to 2500 µF |
| Continuity beeper | ON ? 10 ?, Off > 250 ? |
| Diode test | Yes |
| Jaw opening | 1.37 in (35 mm) |
| Safty rating | CAT III 600 V |
