Amprobe 3730217 Description
The Amprobe LM-200LED light meter measures up to 400,000 lumens per square meter (lux) or 40,000 foot-candles (fc) of light output from LED light sources, has a silicon diode sensor and filter, and is designed for indoor operation at altitudes below 2,000 meters. The dual-scale meter also features built-in memory that stores up to 99 records, a data hold feature that freezes readings on the display, a maximum recording option to display the highest reading, and angled light cosine correction to calculate the amount of light, regardless of the light's angle. The meter is powered by a 9V battery (included) which has an average life of 200 hours. The sensor has a 1.5-meter wire for positioning the light sensor, and a protective sensor cap. MEASURES LED LIGHT SOURCES: A professional tester specifically designed to accurately measure light output of the LED light sources. MEASURES LUX OR FOOT-CANDLES: The Amporbe LM-200 has a measuring range of 200,000 lux or 20,000-foot candles. EASY-TO-USE: The sensor has a 1.5-meter wire for positioning the light sensor, and a protective sensor cap

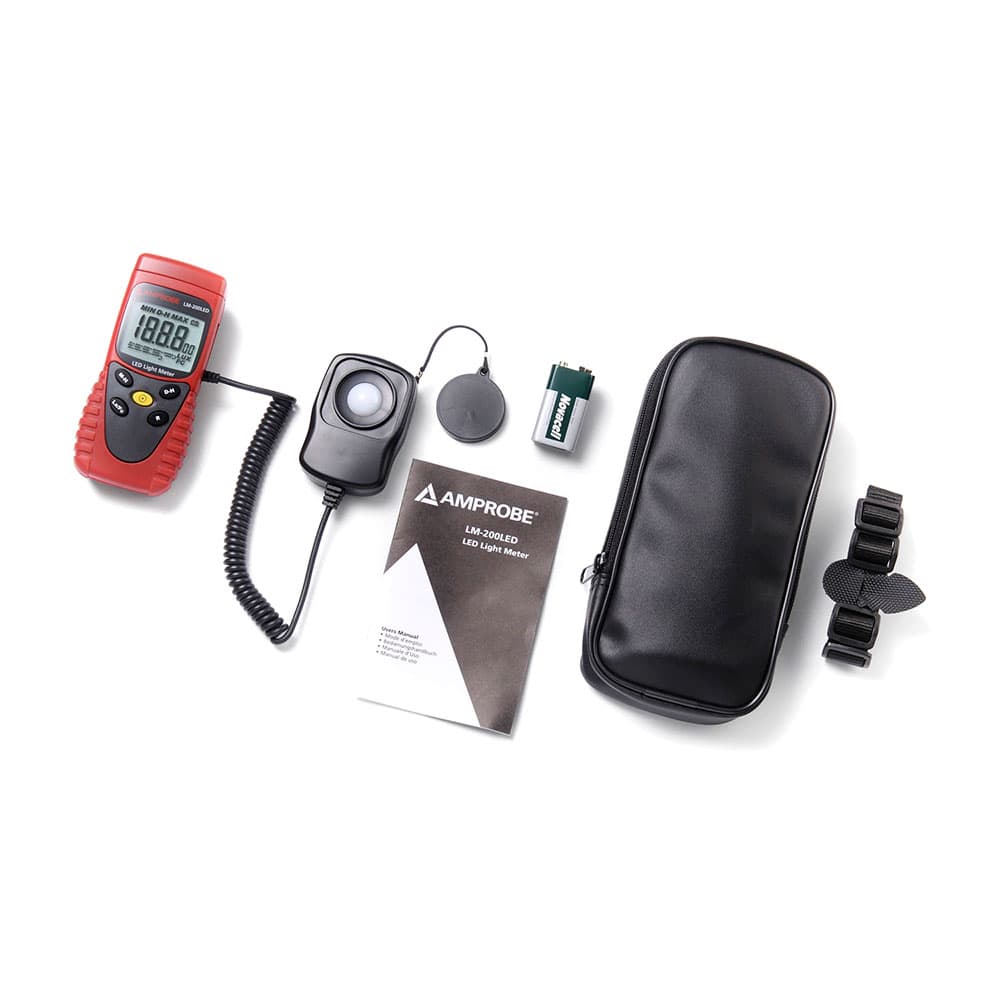

Amprobe 3730217 Includes
- LM-200 LED Light Meter
- 9V Battery (installed)
- Carrying Case
- User Manual
Amprobe 3730217 Features
- Lux or footcandle user selectable measurement units
- Measuring range of 200,000 lux or 20,000 foot candles
- Data hold to freeze reading on the digital display
- MAX recording to capture highest light measurement
- Measuring lights source include all visible ranges
- Spectral response close to CIE luminous spectral efficiency
- Angled light cosine correction
- Extended length of wire for light sensor approximately 5 feet (1.5m)
- Measurements according to JISC1609:1993 and CNS 5119 general A class specifications
- Includes protective sensor cap
- Large, 3-1/2 digit display
Amprobe 3730217 Specifications
| LED Light measurement | 200 lux, 2,000 lux, 20,000 lux, 200,000 lux 20, 200, 2,000, 20,000 foot-candle |
| Display | 2000 count LCD |
| Sensor | Silicon photodiode and filter |
| LED light measurement | 3½ digits, 2000 readings |
| Power supply | 9V NEDA 1604, IEC 6F22, JIS 006P battery |
